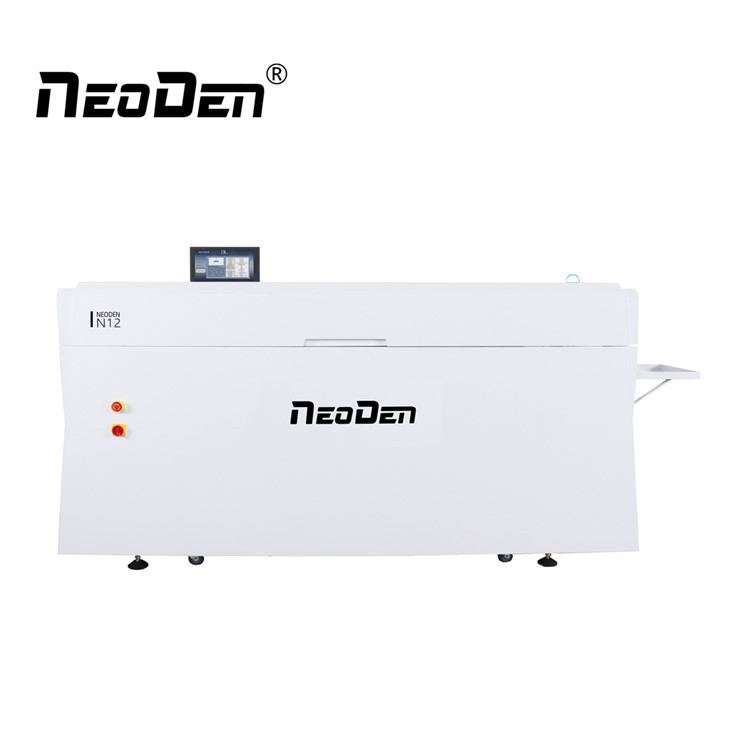

NeoDen IN12 LED Reflow Soldering Oven Machine
■ 50 - 600 mm/min
■ 35mm (includes PCB thickness) standard Max Height
The unique design of heating module has the characteristics of high temperature control accuracy, uniform temperature distribution in the thermal compensation area, high thermal compensation efficiency and low power consumption. The control system adopts imported chip, and the temperature control accuracy is up to ±0.5%.
Light weight, miniaturization, professional industrial design, flexible application site, more humane.
Product Details ofNeoDen IN12 LED Reflow Soldering Oven Machine
Features of NeoDen IN12 Reflow oven
- 12 temperature zones, unique heating module design, which makes it intelligent, innovative, compact and high-performance.
- High-performance aluminum alloy heating plate instead of heating pipe, both energy-saving and high-efficient, and transverse temperature deviation is significantly reduced compare to the similar reflow oven products in the market.
- Built-in welding smoke filtering system, effective filtration of harmful gases, elegant appearance and eco-friendly, more in line with the high-end use environment.
- The unique design of heating module has the characteristics of high temperature control accuracy, uniform temperature distribution in the thermal compensation area, high thermal compensation efficiency and low power consumption. The control system adopts imported chip, and the temperature control accuracy is up to ±0.5%.
- Smart control with high sensitivity temperature sensor, the temperature can be effectively stabilized. Intelligent, the custom developed intelligent control system, easy to use and powerful. Professional and unique 4-way board surface temperature monitoring system.
- High-precision profile technology and unique supporting structure made mesh belt sprocket can effectively reduce the vibration of PCB in the reflow soldering area, easily coping with small-sized components such as 0201 and complicated chips like BGA/QFP/QFN.
- Light weight, miniaturization, professional industrial design, flexible application site, more humane. Heat insulation protection design, the casing temperature can be effectively controlled.
Specification
| Product name | NeoDen IN12 LED reflow soldering oven machine | PCB Temperature Deviation | ±2℃ |
| Model | NeoDen IN12 | Max soldering height | 35mm (includes PCB thickness) |
| Heating Zone Quantity | Upper6 / Down6 | Max Soldering Width | 350mm (PCB Width) |
| Cooling Fan | Upper4 | Length Process Chamber | 1354mm |
| Conveyor Speed | 50～600 mm/min | Electricity Supply | AC 220v/single phase |
| Temperature Range | Room temperature～300℃ | Machine Size | L2300mm×W650mm×H1280mm |
| Temperature Accuracy | 1℃ | Heat-up Time | 30 min |
| Net Weight | 300Kgs |
NeoDen IN12 video
NeoDen IN12 Reflow soldering Details
12 heating zones
Uniform temperature
High temperature control accuracy
Cooling zone
Independent circulating air design
Isolates the influence of the external environment
Energy saving & Eco-friendly

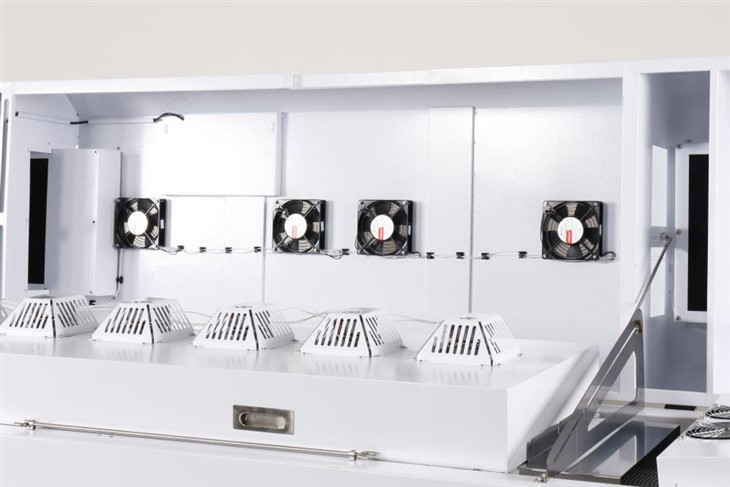

Welding smoke filtering system
low power and supply requirements
Elegant appearance
In line with high-end use environment
Lightweight, miniaturization, professional
Operation panel
Hidden screen design
Convenient for transportation
Intelligent control system
Custom developed intelligent control system
Temperature curve can be displayed
Quality control
We have QC person stay on the production lines do to the inspection.
All products must have been inspected before delivery.
We do inline inspection and final inspection.
1. All raw material checked once it arrive our factory.
2. All pieces and logo and all details checked during production.
3. All packing details checked during production.
4. All production quality and packing checked on final inspection after finished.
NeoDen IN12 customer cases
Automotive Electronics EMS
★★★★★
High-Precision Production Line
"The IN12's 12 heating zones provide exceptional thermal uniformity for our multi-layer automotive boards. Its built-in filtering system keeps our workshop completely smoke-free."

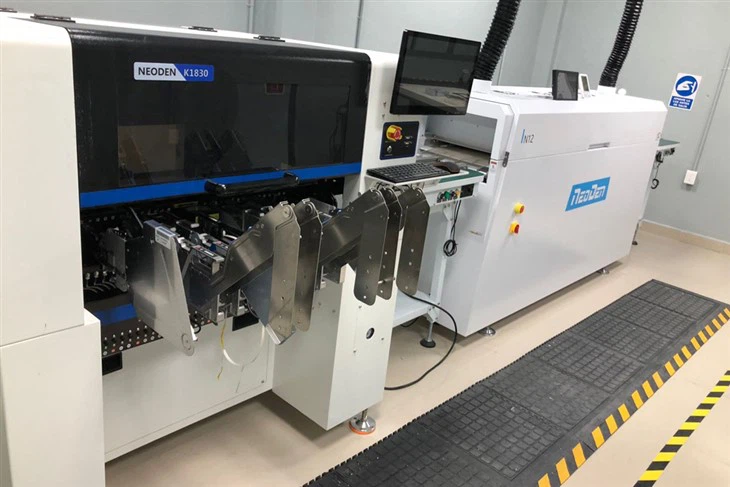

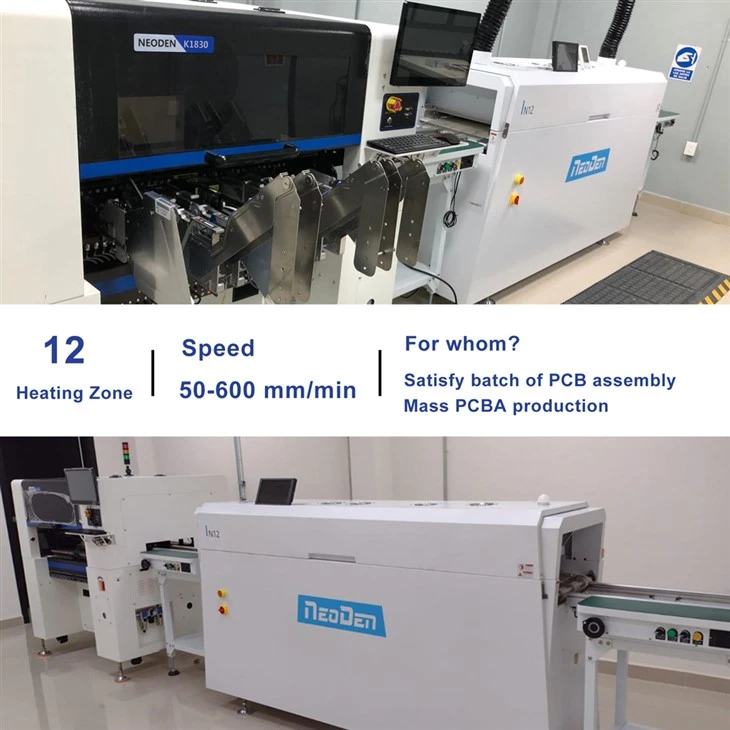

Line Setup: Auto Printer + Dual NeoDen K1830 Pick & Place + NeoDen IN12 Reflow Oven + SMT Conveyor.

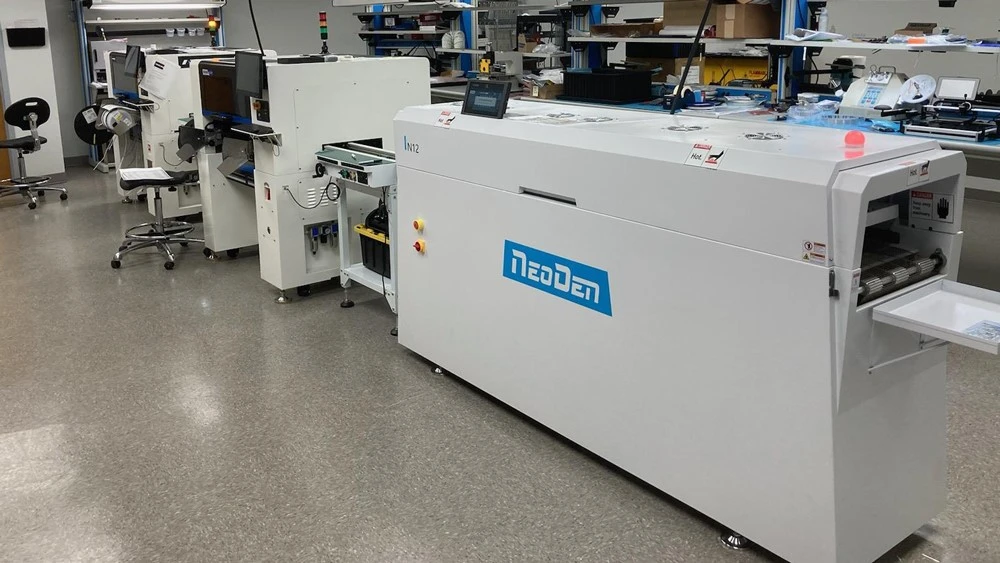

Industrial IoT & Power Electronics
★★★★★
SMT Assembly Line
"Switching to the IN12 oven significantly boosted our daily yield. The temperature profile graph on the built-in screen makes QA checks straightforward and hassle-free."
Line Setup: Stencil Printer + NeoDen K1830 Pick & Place + SMT conveyor + NeoDen IN12 Reflow Oven.
About NeoDen
factory
exhibition
certification
If you need, please feel free to contact us for more information.
FAQ
Q1: What is NeoDen IN12 reflow oven?
A: NeoDen IN12 is a professional SMT reflow oven designed for PCB soldering applications.
It features:
- 12 temperature zones
- Hot air convection heating
- Intelligent temperature control system
- Built-in soldering smoke filtration system
It is designed to provide stable soldering performance for medium-batch, and professional SMT production environments.
Q2: Can NeoDen IN12 solder complex PCB assemblies?
A: NeoDen IN12 is designed to handle complex PCB assemblies including:
- 0201 components
- BGA packages
- QFP packages
- QFN packages
The stable mesh transmission structure helps reduce PCB vibration during soldering.
Q3: What temperature range does NeoDen IN12 support?
A: NeoDen IN12 supports a temperature range from: Room temperature to 300℃.
Q4: Why choose NeoDen IN12 for SMT production?
A: NeoDen IN12 provides a balance between:
- Professional soldering performance
- Temperature control accuracy
- Compact industrial design
- Energy efficiency
- Easy operation making
it suitable for growing electronics manufacturers.
Q5: Can NeoDen IN12 store soldering profiles?
A: Yes. NeoDen IN12 can store up to 40 working files, allowing operators to quickly load different soldering programs.
