NeoDen N10P Pick And Place Machine
■ Placement Rate up to 20,000CPH
■ Placement Accuracy 0.01 mm
■ Feeder Capacity of 80 pcs 8mm tape feeders
NeoDen N10P is a high-performance high speed surface mount machine, designed to boost your SMT production speed and yield with its powerful configuration and high-level automation.
Intelligent Vision: Features a comprehensive Camera Configuration of Dual Mark Camera + Front Flying Camera + IC Camera. It supports a wide Component Range, from 0201 up to 40mm×40mm (Max Height 16mm).
High Automation & Compatibility: Features the standard Automatic Nozzle Change function with 39 nozzle positions for increased speed and flexibility.
Product Details ofNeoDen N10P Pick And Place Machine
Introduction of SMT Mounter
Multi-functional smt placement machine is used to realize high-speed, high-precision fully automatic placement of components, is the most critical and complex equipment in the entire SMT production line.
NeoDen N10P automatic nozzle change function has been added to the system. 39 nozzle positions increase the speed and flexibility of integrated placement.
NeoDen N10P SMT machine, with its high accuracy and flexibility, can greatly enhance the productivity of SMT production lines.
Why Choose NeoDen N10P surface mount machine?
【Leap in Efficiency】8 mounting heads and full closed-loop control system, maximum speed up to 20,000CPH.
【Superior Accuracy】 Placement accuracy up to ±0.01mm, equipped with Dual Mark Camera, Front Flying Camera and IC Camera, especially the IC Camera supports auto calibration to ensure accurate placement of tiny components.

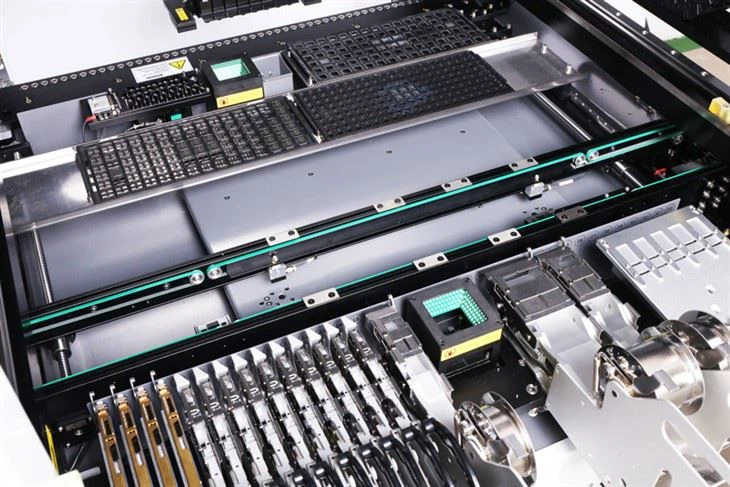

【Superior Compatibility】Supports PCB size up to 1500mm x 450mm, with extended conveyor belts to cope with ultra-long boards. Wide range of components, flying camera supports 0201-22mmx22mm, IC camera supports 0201-40mmx40mm, maximum height of components up to 16mm.
【Flexible Feeding】80 belt feeder capacity, support for mixed use of electric and pneumatic feeders, and tray and tube feeder support to meet diversified production needs.
【Intelligent Automation】Automatic nozzle change function (39 nozzle positions) and automatic nozzle height calibration significantly reduce manual intervention and improve productivity and flexibility.
【Stable and Reliable】Nozzle air pressure monitoring and abnormal air pressure suspension to ensure stable operation and avoid material waste. Optimized software design improves ease of use and stability.
【Easy Maintenance】Add a throw box to facilitate material recycling.
NeoDen N10P PCB pick and place machine Technical Specifications
| Number of Head | 8 | Speed | 20,000CPH (Max) |
| Position Accuracy | ±0.01mm | Component Range |
Flying Camera: 0201-22mmx22mm |
| PCB Size |
Min. 50mmx50mm |
IC Camera: 0201-40mmx40mm | |
|
Max.: 450mm*1500mm (without IC tray) |
Max Height: 16mm | ||
|
395mm*1500mm (with IC tray) |
Power | 600W, Single phase, 220V/110V, 50Hz/60Hz | |
| PCB Thickness | 0.2mm-3.5mm | Feeder Capacity |
Tape&Reel: 80pcs (33 front+47 rear) |
| Air Source | 0.6Mpa-0.8Mpa |
IC Tray: 1 |
|
| Flow rate | 37L/min | Weight | 1,000kgs |

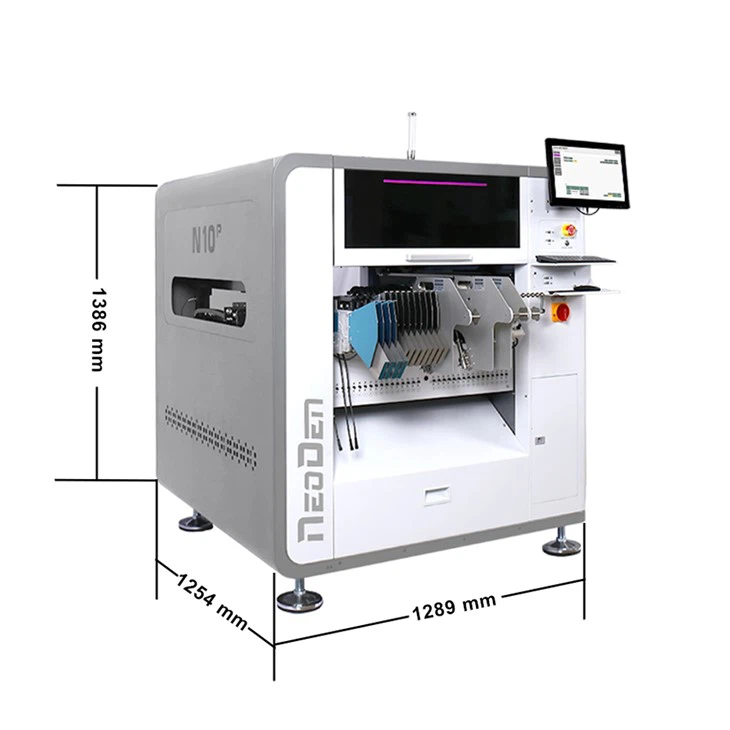

| Dimension | 1289mmx1254mmx1386mm | Packing Size | 1320mmx1290mmx1456mm |
NeoDen N10P Details
8 Placement Heads

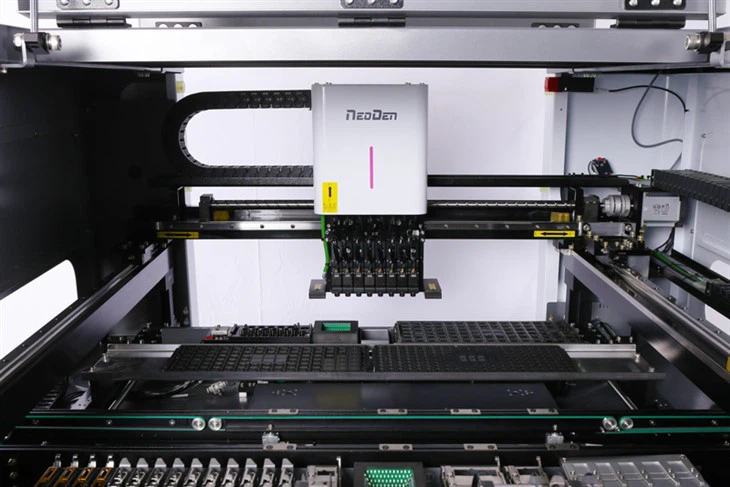

8 heads with fully closed-loop control system support to pick up components simultaneously with maximum speed 20,000CPH.
Tape Reel Feeders

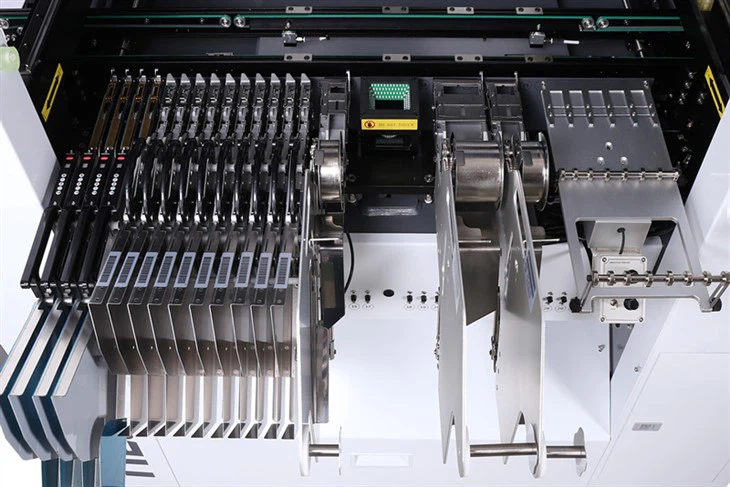

Support 80 tape feeders, 20 stick feeders and 60 tray feeders, which achieve. Allows mixed use of electric and pneumatic feeders in the same feeder base.
Self-developed Flying Camera
Front and rear with 2 fourth generation high speed flying camera recognition systems, US ON sensors, 28mm industrial lens.
Nozzle Station
Automatic nozzle change function with 39-hole tremendously increase placement speed and flexibility, reduce labor work.
Auto Nozzle Height Calibration
Automatic calibration of nozzle height,
manpower can be utilized efficiently.
Air Pressure Auto Inspection
Abnormal air pressure triggers placement pause to prevent potential damage and waste of materials.
