NeoDen K1830 Automatic SMD Pick and Place Machine
■ Placement Rate up to 16,000 CPH
■ Placement Accuracy 0.01 mm
■ Feeder Capacity of 66 Reel Tape Feeders (Electric / Pneumatic) and 10 IC Tray Feeders
NeoDen K1830 is a high-performance SMD assembly machine, equipped with a Closed loop Servo control system, engineered for efficient, stable, and high-volume SMT production..
Broad Compatibility: Supports a wide range of components, from the Smallest Component Size 0201 to various IC Packages (QFP, SSOP, QFN, BGA). The Max Component Height is 18mm.
Product Details ofNeoDen K1830 Automatic SMD Pick and Place Machine
Features of NeoDen K1830 SMD assembly Machine
- Ultra-High Speed for Mass Production: 8 synchronized nozzles achieve up to 16,000 CPH placement speed, optimizing medium and large SMT production line manufacturing efficiency.
- Nanometer-Level Accuracy: 0.01 mm repeatability supports 0201 components and 5 mm-height capacitors, ideal for LED boards and control panels.
- Smart Calibration System: Dual mark cameras auto-calibrate extreme feeder positions. Closed-loop feedback ensures one-click PCB and pneumatic feeder alignment.
- Industrial-Grade Stability: Linux OS + closed-loop servo control with Ethernet communication guarantee 7×24 hours of uninterrupted operation.
- Versatile Component Compatibility: Handles QFP/SSOP/QFN/BGA IC packages, accommodating PCBs up to 540 × 300 mm and 18mm component height.
NeoDen K1830 chip mounter machine video
NeoDen K1830 SMT Pick & Place Machine Specification
| Product name | NeoDen K1830 automatic SMD pick and place machine | Max Placement Speed | 16,000CPH |
| Nozzle Q'ty | 8pcs | Voltage | 220V/50HZ & 110V/60HZ |
| Reel Tape Feeder Q'ty (Max | 66 (Electric / Pneumatic) | PCB Transfer Direction | Left→Right |
| Max PCB size | 540*300mm (In Single Step) | Net Weight | 280Kgs |
| Placement accuracy | 0.01mm | Gross Weight | 360Kgs |
NeoDen K1830 pCB assembly equipment Detail

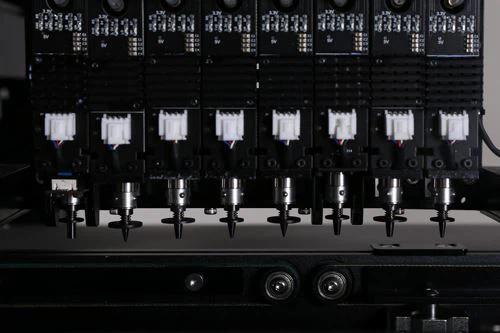

High speed Nozzle
8 Synchronized Nozzles
Ensure a repeatable placement accuracy
Pneumatic Feeder
66 Reel Tape Feeder
Easy operation and high efficiency

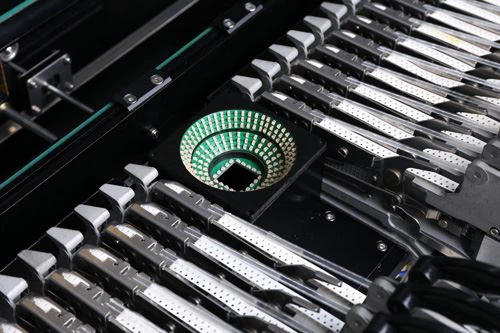

Vision system
Double mark cameras
Front and rear high definition flight camera

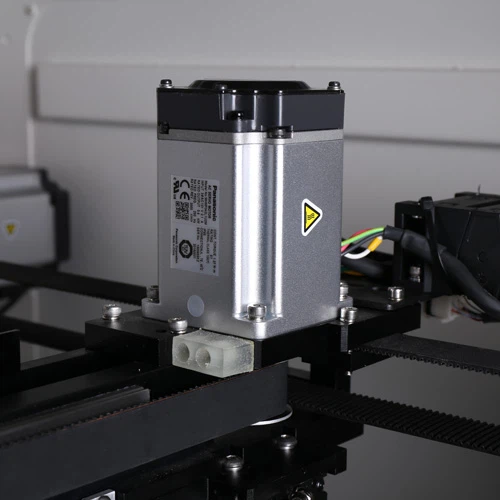

Drive Motor
Panasonic Servo Motor A6
Make the machine to function more accurate

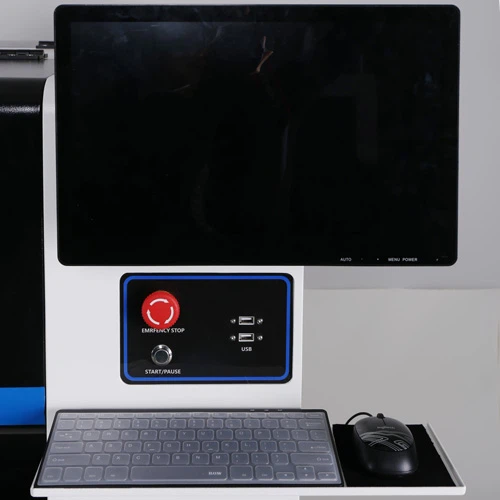

Computer
Display size: 12 inch
Makes the machine more convenient to use
Warning light
Triple color of light
Beautiful and elegant indicator design
Our Advantage
Provide product instructions.
YouTube video tutorials.
Experienced after-sales technicians, 24 hours online service.
With our own manufactory and more than 10 years of experience in SMT industry and PNP machine.
We can provide customers with the most cost-effective products.
If you need, please feel free to contact us for more information.
