NeoDen IN6 Desktop Reflow Oven
■ 50-300mm/min (2 - 12 inch/min)
■ 26mm Standard Max Height
The NeoDen IN6 features full hot-air convection, providing excellent soldering performance. Its original high-performance aluminum alloy heating plate, instead of a heating pipe, ensures even temperature distribution throughout the reflow oven and heats all components at the same rate.
Built-in Solder Smoke Filtering System, Eco-friendly: It includes an original built-in soldering smoke filtering system, which is elegant in appearance and eco-friendly, bypassing the need for venting.
Authoritative Certification: The NeoDen IN6 is approved by TUV CE, making it authoritative and reliable.
Product Details ofNeoDen IN6 Desktop Reflow Oven
Why choose NeoDen IN6 Reflow oven?
【Full Hot-Air Convection for Excellent Soldering Performance】 The NeoDen IN6 features full hot-air convection, providing excellent soldering performance. Its original high-performance aluminum alloy heating plate, instead of a heating pipe, ensures even temperature distribution throughout the reflow oven and heats all components at the same rate.
【Precise Temperature Control and High Stability】 Temperature can be controlled with extreme accuracy, stabilized within ±0.2°C. An internal temperature sensor ensures full control of the heating chamber and can reach optimal temperatures in approximately 15 minutes.
【6 Zone Design, Light and Compact】 The NeoDen IN6 has a 6 zones design (3 upper/3 down), making it light and compact.
【Built-in Solder Smoke Filtering System, Eco-friendly】 It includes an original built-in soldering smoke filtering system, which is elegant in appearance and eco-friendly, bypassing the need for venting.
【User-Friendly Operation and Storage】 Several working files can be stored, and users can freely switch between Celsius and Fahrenheit. It features a color touch screen with a graphic display mode for time-based temperature viewing.
【High-Quality Components for Durability and Stability】 The oven is built with Japan NSK hot-air motor bearings and Swiss heating wire , ensuring durability and stability.
【Safety and Practicality】 Heat insulation protection design means the casing temperature can be controlled within 40°C. It uses a household power supply (110/220V AC) , making it convenient and practical. An ESD tray is included for easy PCB collection after reflowing, convenient for R&D and prototyping.
【Authoritative Certification】 The NeoDen IN6 is approved by TUV CE, making it authoritative and reliable.
NeoDen IN6 Reflow oven Specification
| Product name | NeoDen IN6 Desktop Reflow Oven | Length process chamber | 680 mm (26.8 inch) |
| Power requirement | 110/220VAC 1-phase | Heat-up time | approx. 25 min |

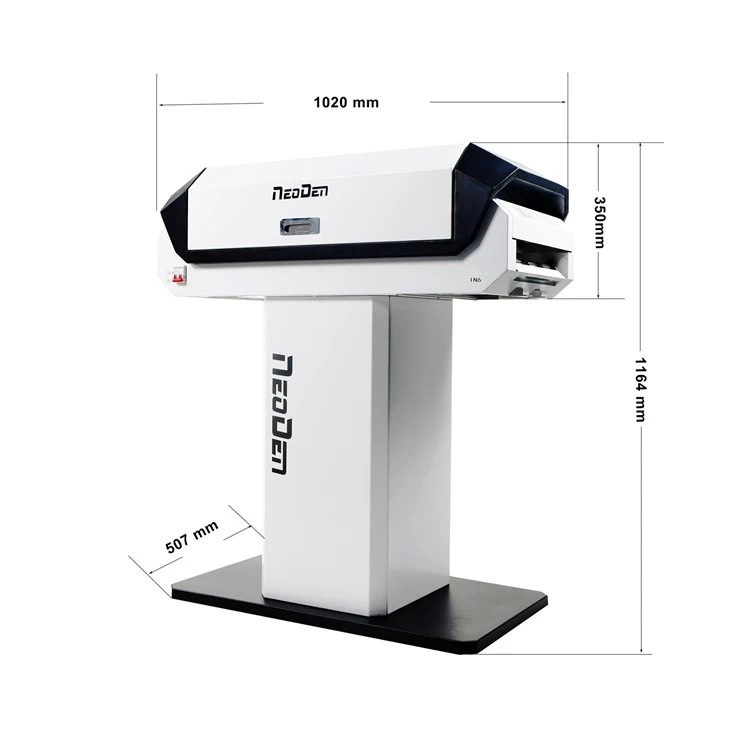

| Conveyor speed | 5 - 30 cm/min (2 - 12 inch/min) | Dimensions | 1020*507*350mm(L*W*H) |
| Standard Max Height | 26mm | N.W./G.W. | 49Kg/64Kg |
| Soldering width | 260 mm (10 inch) |
Details
6 Heating Zone
3 Top, 3 Bottom
6 zones design, light and compact
Provides even temperature distribution
Intelligent Control System
Store several working files
Display real-time temperature curve
Smart control, high sensitivity temperature sensor
Filtering System
Elegant appearance and eco-friendly
Effective filtration of harmful gases
Power Supply Connection
110V/220V single-phase connection mode
Convenient and practical
If you need, please feel free to conatct us for more information.
video
Our Service
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own factory located in Huzhou, China.
3. Strong professional technical team ensure to produce the top quality products.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on SMT area.
Provide one-stop SMT assembly production line
NeoDen: A reliable reflow oven Manufacturer
factory
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
With global presence in over 130 countries, the excellent performance, high accuracy and reliability of NeoDen PNP machines make them perfect for R&D, professional prototyping and small to medium batch production. We provide professional solution of one stop SMT equipment.
certification
exhibition
FAQ
Q1. What Is the Power Consumption of the NeoDen IN6 Reflow Oven? Can we use it in office building?
A. Max. power: 2 KW.
Yes, it is specially power-saving design and can be applicable to office power.
Q2. What are the differences between the IN6 and IN6C hot air reflow ovens?
- IN6: Features a mesh belt conveyor system, designed for single-sided PCB assembly.
- IN6C: Utilizes a rail-guided conveyor, compatible with both single-sided and double-sided PCB assembly.
Q3. What are the key features of the NeoDen IN6 reflow oven?
- Household power supply (110/220VAC 1-phase)
- Low power consumption (peak 2kw)
- Eco-friendly built-in smoke filter system
- Smart temperature control (accuracy ±0.2℃, deviation ±1℃)
- Real-time temperature curve inspection
- User-friendly full-color touch screen
- Supports up to 16 preset temperature profiles
- CE certified
- Comes with a 2-year warranty
Q4. What's the difference between IN6 and T962A?
- Heating way: IN6 is hot air reflow oven, T962A is IR reflow oven
- Control screen: IN6 Full-color screen, T962A LCD display.
- Warranty time: IN6 warranty 2 years, T962A warranty 1 year
- File storage: IN6 files qty 16pcs, T962A files qty 0
- Soldering smoke filtering: IN6 yes, T962A no.
If you need, please feel free to contact us for more information.
