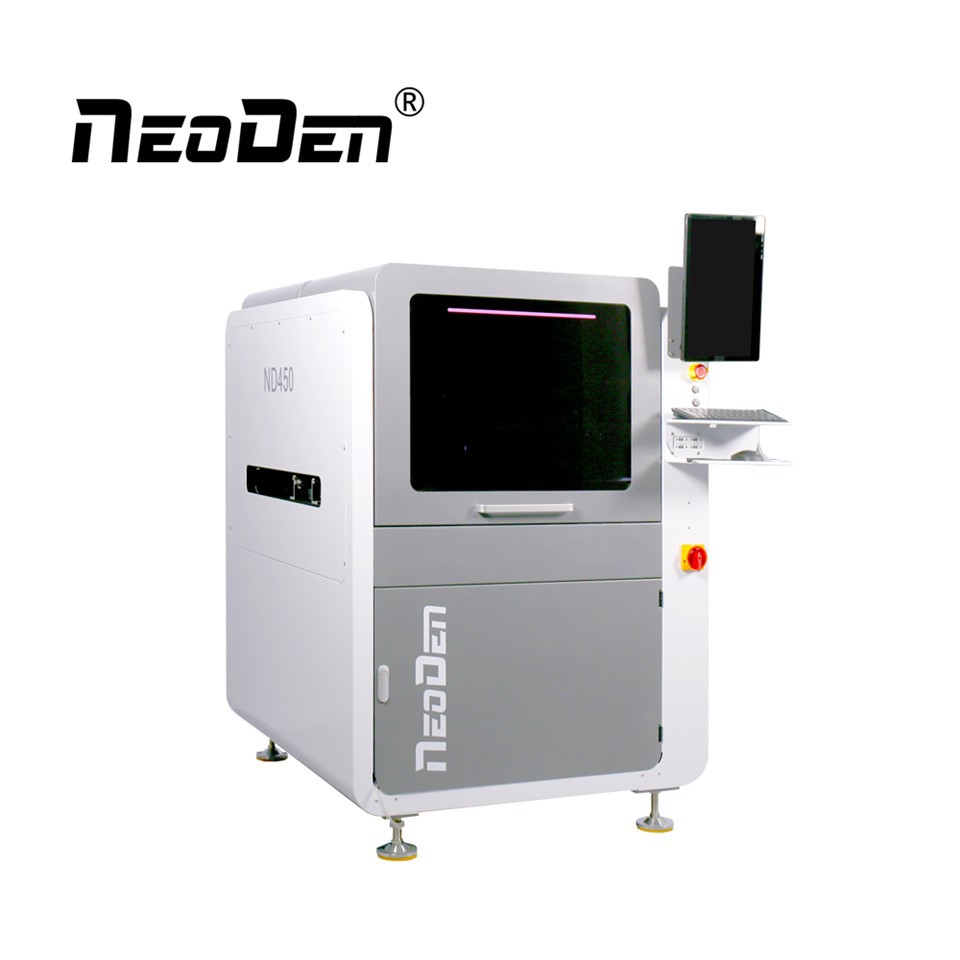

NeoDen ND450 Automatic Solder Paste Printer
■ 450 mm * 350 mm Max PCB size
■ 50 mm * 50 mm Min PCB size
■ 0.4 mm ~ 4 mm PCB thickness
NeoDen ND450 automatic solder paste printer integrated dual-camera Mark system with 6-channel light sources, paired with a high-precision magnetic grating feedback module, ensures exceptional alignment consistency throughout the operational process.
Product Details ofNeoDen ND450 Automatic Solder Paste Printer
Introduction
NeoDen ND450 is a high-precision Automatic Solder Printer engineered for advanced SMT production lines. At its core, the machine integrates the innovative Electric + Air-Suspension Squeegee Head and High-Precision Magnetic Grating Feedback Module to ensure constant pressure monitoring and superior alignment accuracy.
Combined with a 3-Axis PCB Adjustment Platform featuring a specialized backlash elimination mechanism and a 6-channel light source Mark Camera, ND450 delivers exceptional stability and consistency for complex PCB printing.It is the ideal choice for demanding industries, including consumer electronics, automotive electronics, and medical instrumentation, where high production efficiency and precision are paramount.
Fetures of NeoDen ND450 Solder Paste Printer

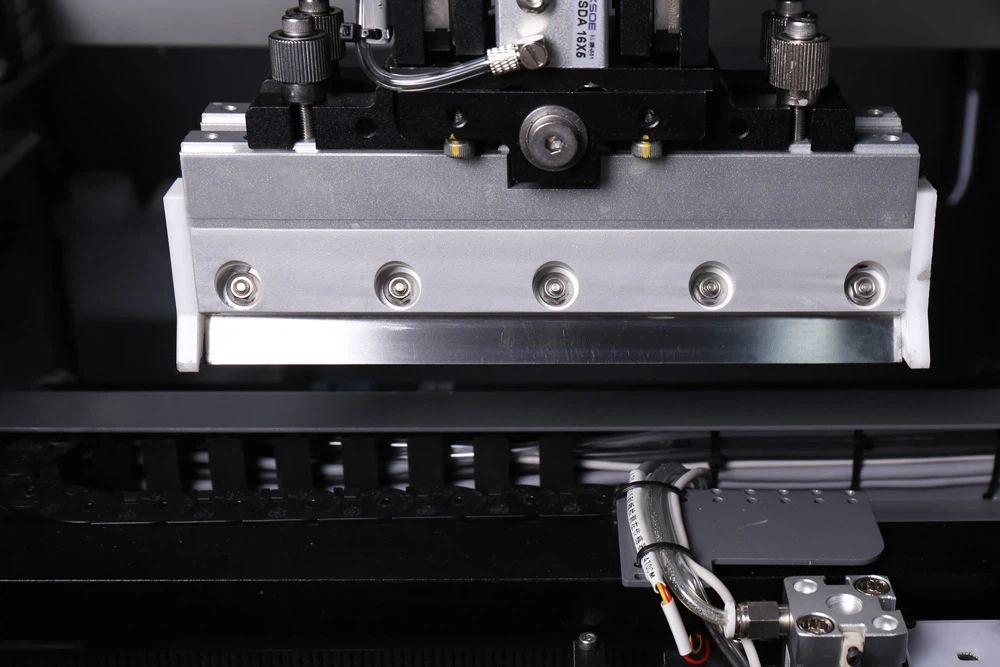

Squeegee Head
Through innovative electrical control and pneumatic circuit designs, the squeegee pressure is continuously monitored, ensuring its stability throughout the printing process.
Stencil Fixing Bracket
CNC-machined crossbeams and high-precision linear guides ensure zero front-to-back backlash, while dual-action pneumatic cylinders guarantee reliable and convenient stencil securing.
Adjustable PCB Lifting Platform
Full CNC machining ensures the flatness of the lifting platform. The internal 45-degree guide rail design allows for rapid adaptation to PCBs of varying thicknesses.
PCB Adjustment Platform
Ensuring stability and consistency.Incorporates a specialized lead screw and nut backlash elimination mechanism to guarantee the precision of PCB position correction.
Cleaning Fluid Spray Module
Utilizes a water pump and one-way valve, paired with a safety circuit, to ensure stability and safety during operation.
Mark Camera
Featuring an integrated dual-camera design, equipped with a 6-channel light source, it effectively adapts to imaging surfaces with varying reflective properties.
Magnetic Grating Feedback Module
Both camera beams are designed with a high-precision magnetic grating feedback system, ensuring stability and precision during the printing process.
Stencil Underside Cleaning Module
A high-torque feed-and-feedback system ensures stable paper cycles, while a flexible lifting mechanism and negative pressure blower deliver thorough stencil cleaning.
Specification
| Frame Size | 400 * 300 mm - 650 * 550 mm | Printing Speed | 1 - 100 mm/s |
| PCB Size | 50 * 50 mm - 450 * 350 mm | Printing Accuracy | ± 0.025 mm |
| PCB Thickness | 0.4 - 4 mm | Printing Repeat Accuracy | ± 0.025 mm |
| PCB Warpage | < 1% | Image Repeat position accuracy | ±0.02mm |
| Transfer height | 885 - 920 mm | Cycle time | 12-18 s/p |
| Demoulding speed | 0.1 - 30 mm/s | Transfer direction | L-R, R-L, L-L, R-R |
| Demoulding length | 0 - 10 mm | Air pressure | 0.6 - 0.7 Mpa |
| Power supply | 220 V / 110 V | Applicable scraper length | 200 - 450 mm |
| Maximum board weight | 4 kg | Board margin gap | 5 mm |
| Maximum bottom gap | 25 mm | Transfer speed | 0 - 400 mm/s |
| Printing pressure | 0.5 - 10 Kg | Printing stroke | 420 mm |
| Platform adjustment range | X:±5mm,Y:±5mm,θ:±2.8° | Operating system | Linux |
| Machine Dimension | 992 x 1305 x 1430 mm | Machine Weight | 350 kg |
NeoDen ND450 solder paste printer video
NeoDen: A reliable SMT equipment manufacturer
factory
Company Profile
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.In our global Ecosystem, we collaborate with our best partners to deliver a more closing sales service, high professional and efficient technical support.We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist everywhere.
certification
exhibition
FAQ
Q: What component sizes can the NeoDen ND450 support?
A: NeoDen ND450 is suitable for a wide range of components, including 0201, 0402, 0603, 0805, 1206, LEDs, diodes, transistors, SOT packages, QFPs, and BGAs with a pin pitch greater than 0.3 mm. It supports PCB sizes from 50 × 50 mm up to 450 × 350 mm, making it suitable for various PCB assembly applications.
Q: How does the ND450 ensure accurate PCB alignment during printing?
A: NeoDen ND450 features an integrated top and bottom dual-camera mark recognition system together with a high-precision magnetic grating feedback module. It also incorporates a 3-axis PCB adjustment platform with a lead screw and backlash elimination mechanism to ensure stable and accurate PCB position correction. The image calibration repeat position accuracy reaches ±0.02 mm, while printing accuracy is ±0.025 mm.
Q: What type of printing head does the NeoDen ND450 use?
A: NeoDen ND450 adopts a floating intelligent printing head driven by two independent direct-connected motors. Its electric and air-suspension squeegee head continuously monitors squeegee pressure throughout the printing process, helping maintain printing stability and consistency. The machine supports both single and double squeegee printing and offers adjustable printing pressure from 0.5 kg to 10 kg.
Q: Can the ND450 accommodate PCBs with different thicknesses?
A: Yes. The ND450 uses a high-precision adjustable PCB lifting platform manufactured by CNC machining to ensure flatness. Its internal 45-degree guide rail design enables rapid adaptation to PCB thicknesses ranging from 0.4 mm to 4 mm, helping maintain stable printing performance.
Q: What stencil cleaning functions are available on the NeoDen ND450?
A: NeoDen ND450 supports dry, wet, and vacuum cleaning modes. Its stencil underside cleaning module utilizes a cleaning paper feed-and-feedback system, a high-torque geared motor, a flexible lifting mechanism, and a high-speed negative-pressure blower to provide stable and consistent stencil cleaning performance.
