NeoDen IN8C Reflow Oven
■ 50-600mm/min
■ Up 30mm, Down 20mm Standard Max Height
The NeoDen IN8C is an environmentally friendly, and stable performance intelligent automatic orbital reflow soldering machine. It adopts the exclusive patented design of "even temperature heating plate" , which ensures excellent soldering performance.
Compact and Humanized Design: The professional industrial design makes the equipment lightweight and miniaturized, allowing for flexible application scenarios. The concealed screen design is convenient for transportation and easy to use.
Product Details ofNeoDen IN8C Reflow Oven
Introduction of NeoDen IN8C reflow oven
The NeoDen IN8C is an environmentally friendly, and stable performance intelligent automatic orbital reflow soldering machine. It adopts the exclusive patented design of "even temperature heating plate" , which ensures excellent soldering performance.
Why choose NeoDen IN8C Reflow oven?
【Intelligent and Precise Control】 NeoDen IN8C features a compact design with 8 temperature zones and a custom-developed intelligent control system with a PID control algorithm. Its high-sensitivity temperature sensor ensures stable temperatures in the furnace with a small horizontal temperature difference. The control system uses imported chips, achieving a temperature control accuracy of ±0.5%.
【Efficient and Eco-friendly】 The unique heating module design offers high-efficiency thermal compensation and low power consumption. A built-in welding fume filtration system effectively filters harmful gases, making it beautiful and environmentally friendly.
【Stable and Durable】 It uses Japan NSK hot air motor bearings and Swiss imported heating wire for durable and stable performance. The custom-developed stainless steel B-type mesh belt is durable and wear-resistant, and not easy to deform with long-term use.
【Compact and Humanized Design】 The professional industrial design makes the equipment lightweight and miniaturized, allowing for flexible application scenarios. The concealed screen design is convenient for transportation and easy to use.
Reflow oven Specification
| Product name | NeoDen IN8C reflow oven |
Transmission mode |
Track |
|
Temperature zones |
Up4/Down4 |
Welding height |
Up 30MM Down 20MM |
|
Heating mode |
Nickel chromium alloy wire and aluminum alloy heating |
Max Soldering Width | 330mm (PCB Width) |
| Cooling Fan | Upper 4 fan |
Track direction |
From left to right |
| Conveyor Speed | 50～600 mm/min | Electricity Supply | AC 220v/single phase |

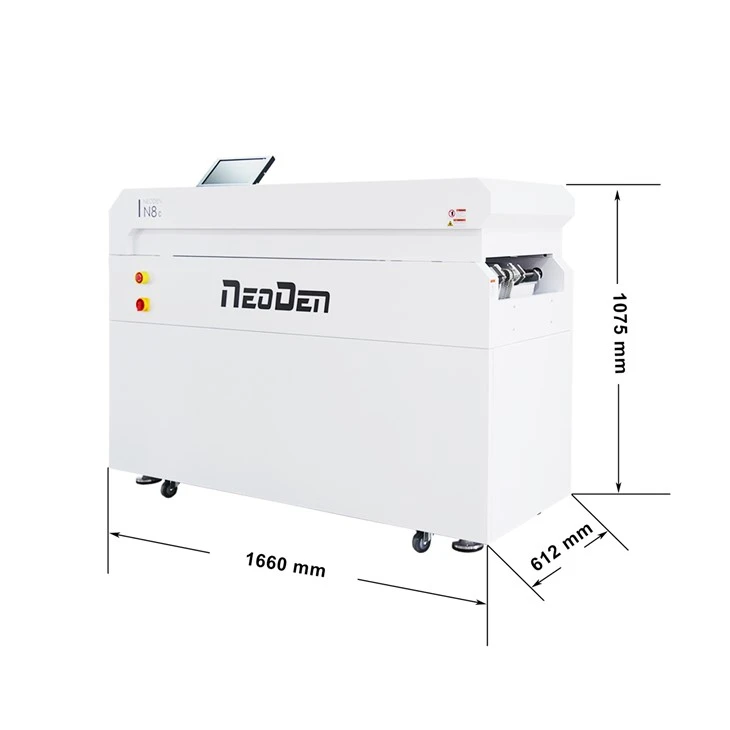

| Temperature Range | Room temperature～300℃ | Machine Size |
L1660*W612*H500(Desktop)L1660*W607*H1075(vertical) |
|
Starting power |
~3.6KW |
Heat-up Time |
~20-30 minutes |
| Net Weight | 200Kgs |
Working power |
~1.5KW |
Details

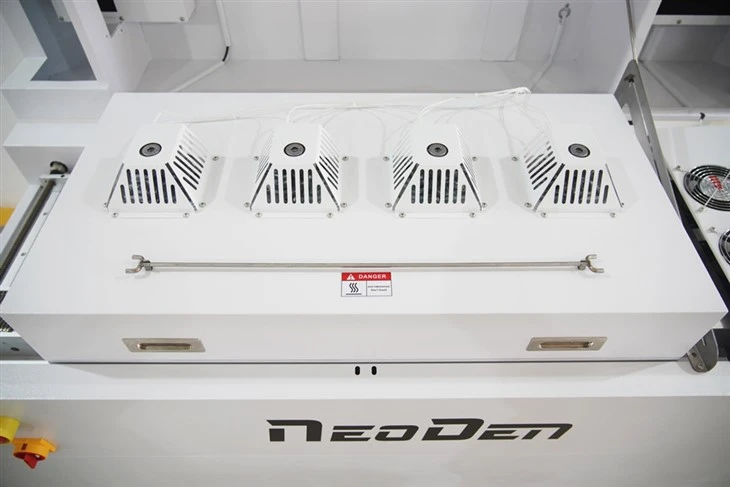

8 Heating Zones
8 temperature zones compact design
Lightweight and compact

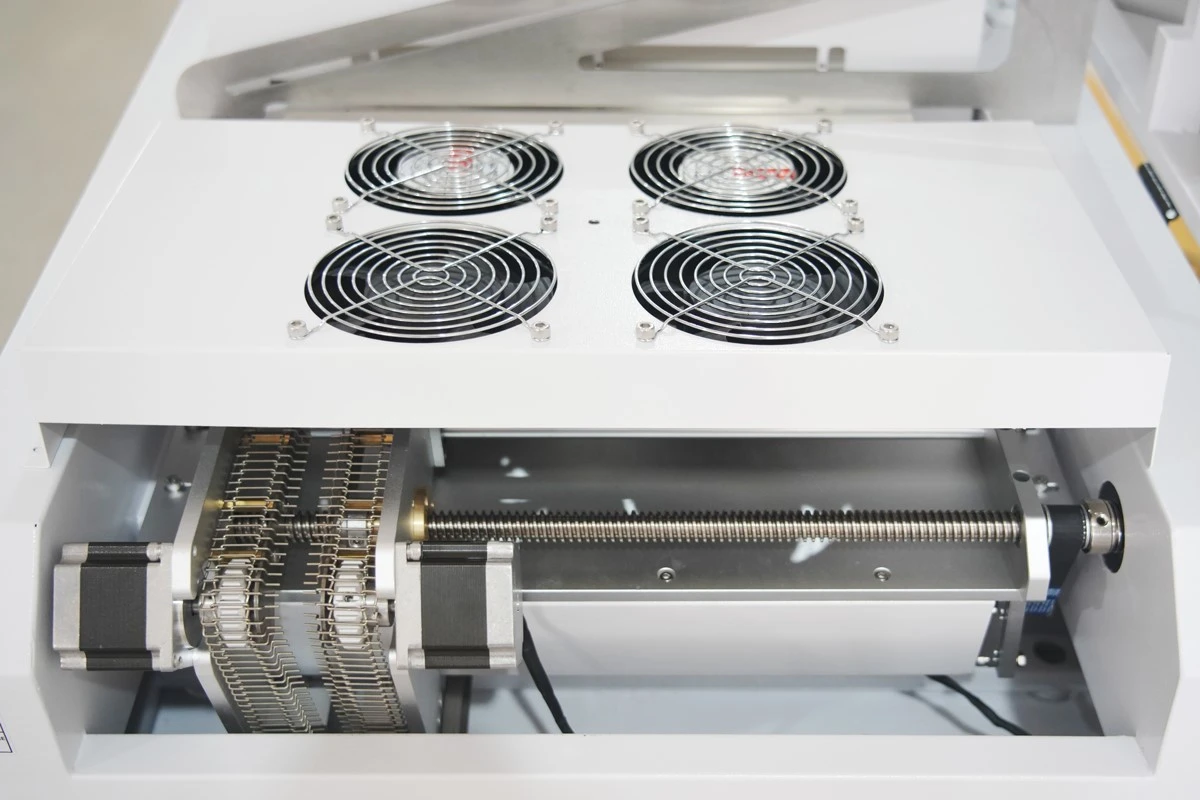

Cooling zone
Independent circulating air design
Isolates the influence of the external environment
Energy saving & Eco-friendly

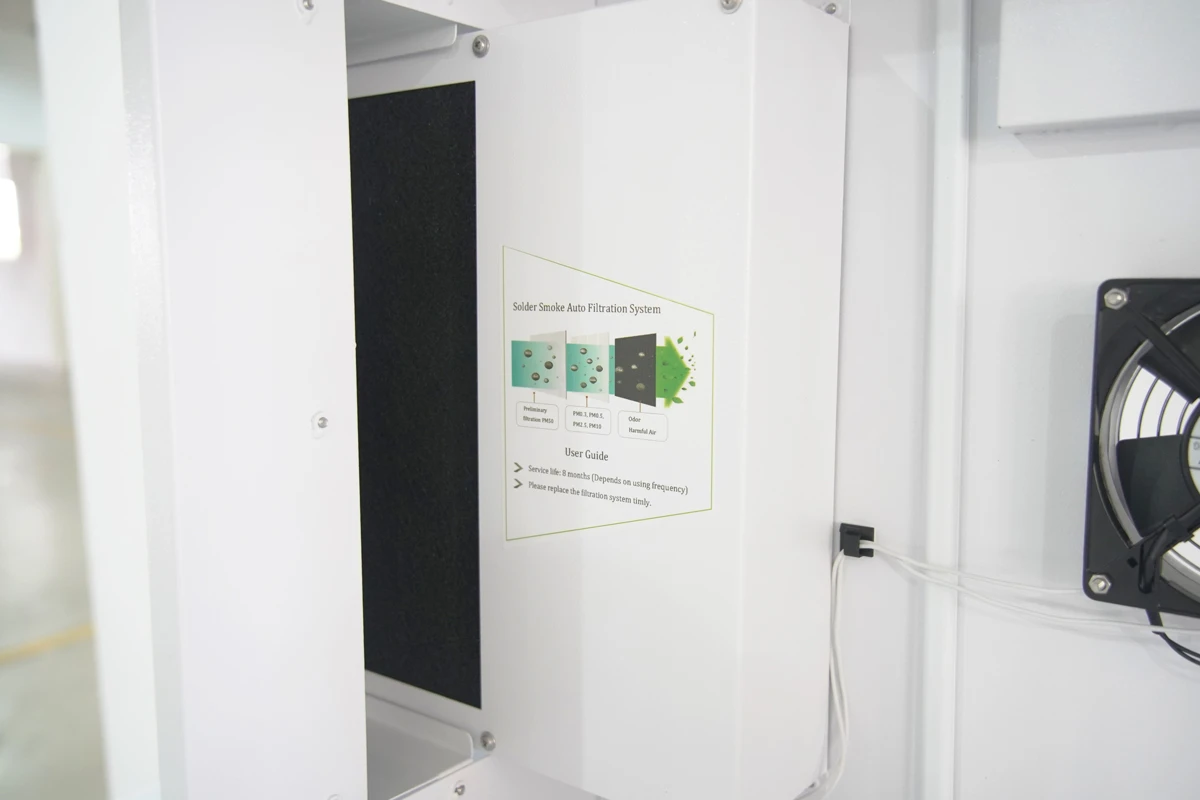

Welding smoke filtering system
low power and supply requirements

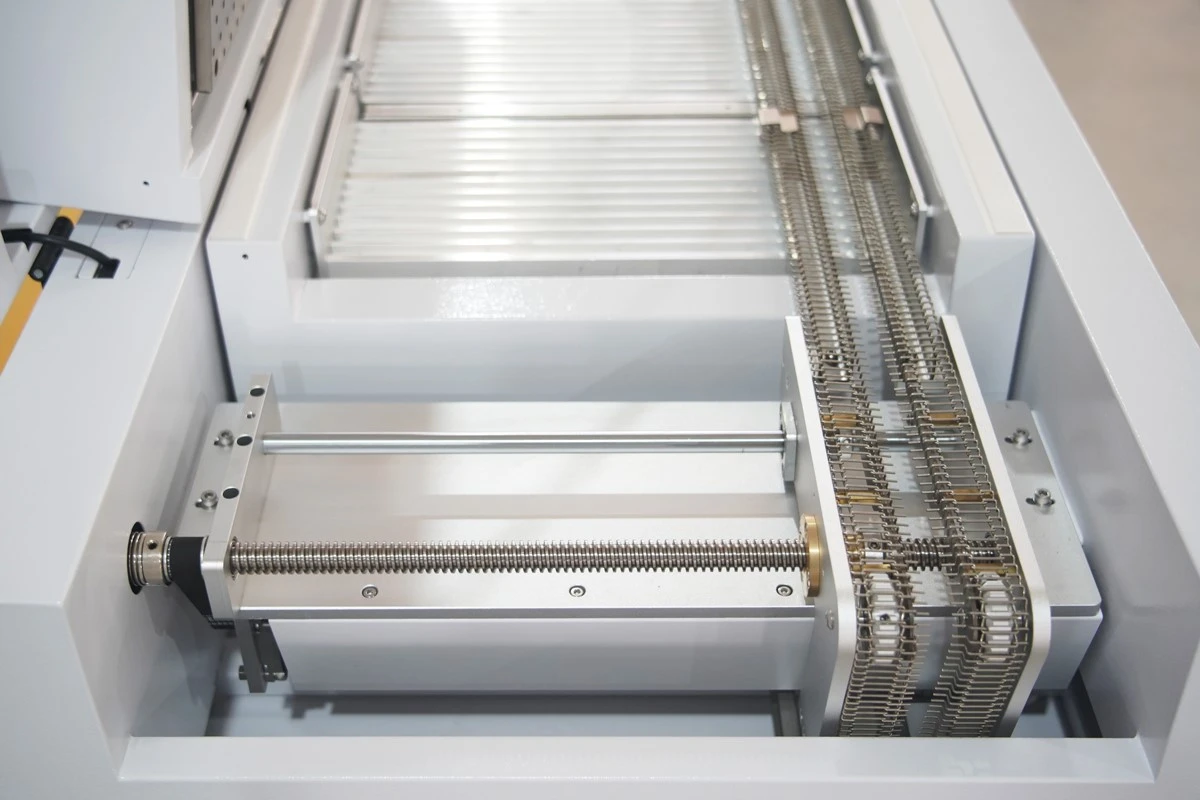

Track
Light weight, small heat loss
Maintenance free and permanent service life

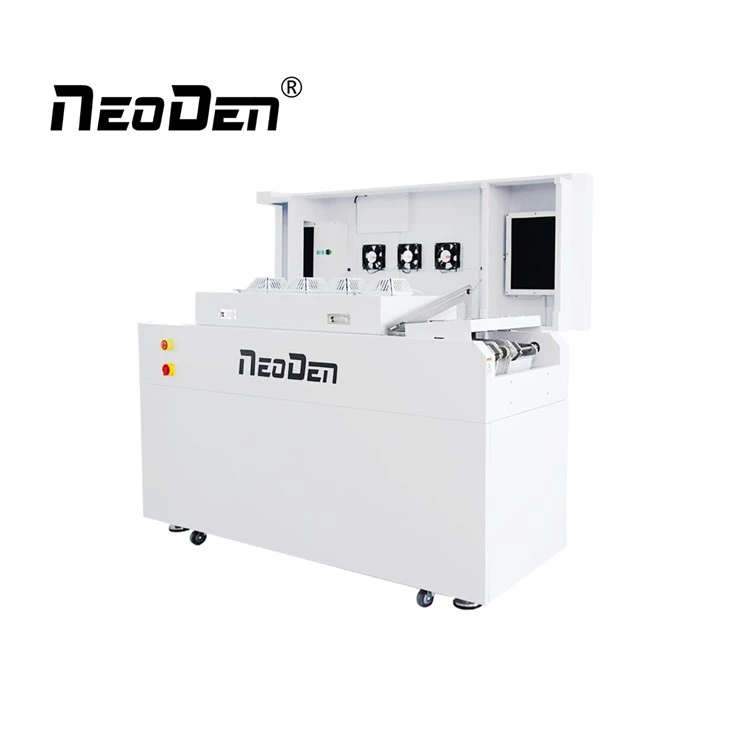

Operation panel
Hidden screen design
Convenient for transportation

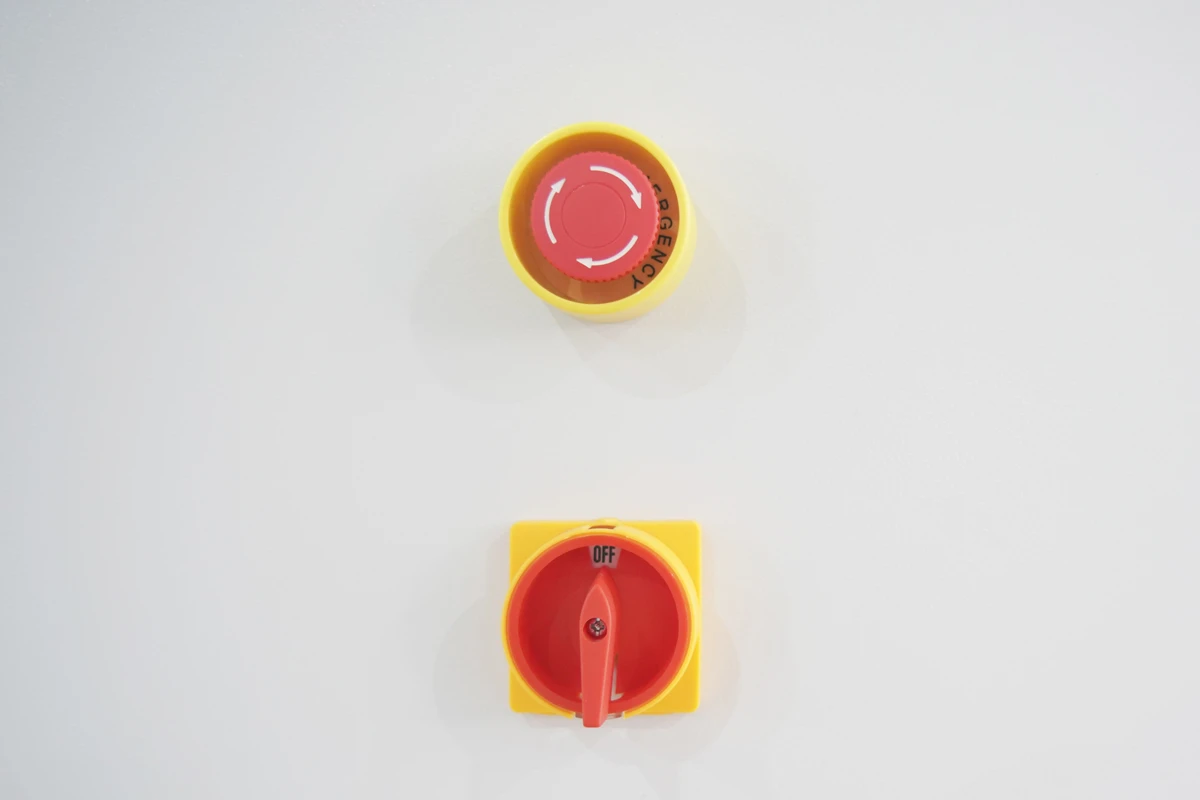

Stem mounted control
Turn the rotary switch to the ON position,
and the machine starts.
Quality control
We have QC person stay on the production lines do to the inspection.
All products must have been inspected before delivery.
we do inline inspection and final inspection.
1. All raw material checked once it arrive our factory.
2. All pieces and logo and all details checked during production.
3. All packing details checked during production.
4. All production quality and packing checked on final inspection after finished.
If you need, please feel free to contact us for more information.
NeoDen IN8C video
NeoDen IN8C Reflow Soldering Customer cases
Case Study: IN8C 8-Zone Reflow Oven in UAV R&D
✓ Verified InstallationClient Location: South Korea 🇰🇷
UAV Drones, Gimbal Motors
SMT Line Configuration:
ND1 Automatic Solder Paste Printer + N10P Pick and Place Machine + IN8C 8-Zone Reflow Oven
This high-tech South Korean manufacturer specializes in UAV drones and gimbal motors. To ensure zero-defect soldering on complex motor driver controllers and sensor boards, they deployed the NeoDen IN8C 8-zone reflow oven. Its precise thermal profiling guarantees rock-solid reliability for components.

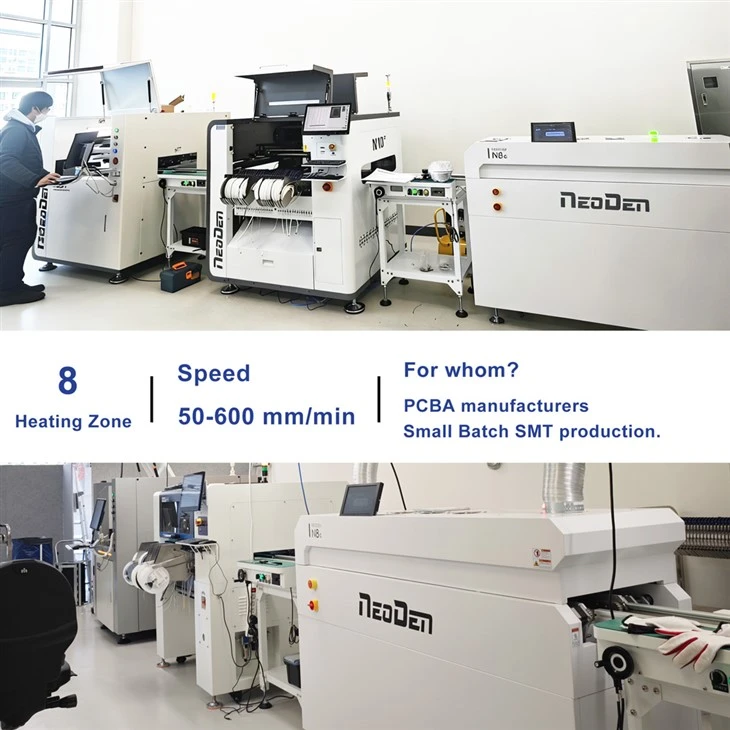

ND1 + N10P + IN8C SMT Line operating at South Korean lab
Case Study: Fully Automated SMT Line with IN8C in Sweden
✓ Fully Automated Line
Full Automated SMT Line in active operation at Swedish client site
Client Location: Sweden 🇸🇪
⚡ Electronics Manufacturing / Industrial Automation
Full Turnkey SMT Line Configuration:
PCB Loader + ND2 Automatic Solder Paste Printer + K1830 Pick & Place Machine + IN8C 8-Zone Reflow Oven + PCB Unloader
This Swedish electronics manufacturer deployed a completely SMT production line. Anchored by the NeoDen IN8C 8-zone reflow oven and K1830 PnP machine, the seamless integration with PCB loaders/unloaders ensures continuous manufacturing with high soldering reliability and minimal operator intervention.
NeoDen: A Reliable SMT Equipment Manufacturer
Factory
Exhibition
certification
FAQ
Q1. How many heating zones does the NeoDen IN8C have?
A. 8 heating zones, upper 4 and down 4.
Q2. Does NeoDen IN series reflow ovens support high temperature lead-free solder paste?
A. Yes.
Q3. what's the standard max height of the oven?
A. Standard Max Height (mm): Up 30mm, down 15mm.
Q4. What Is the Warranty Policy for the NeoDen reflow oven?
- Warranty period : 2 years from delivery date.
- Free replacement of necessary spare parts during warranty.
- Lifetime technical support provided free of charge.
