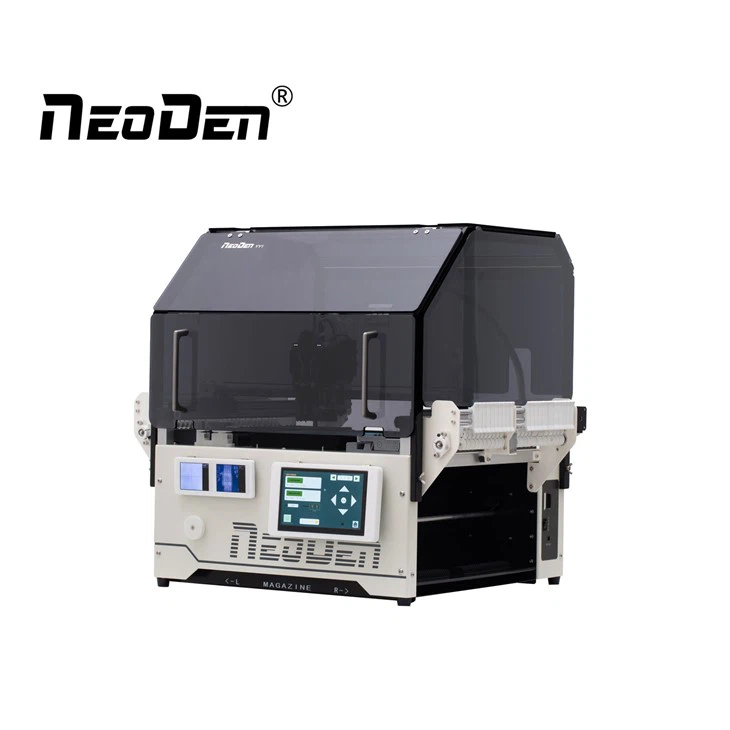

NeoDen YY1 Pick and Place Machine
■ Placement Rate up to 4000 CPH
■ Placement Accuracy ±0.02 mm
■ Feeder Capacity of 52 (all 8 mm) tape Feeders
The NeoDen YY1 is a high-performance, high-precision Desktop Automatic Pick and Place Machine.
Intelligent Vision: Integrates an independent high-definition high-speed dual vision recognition system and Vacuum Detection function. It supports a wide Component Range from 0201 (Smallest Size) up to 18x18mm (Largest Size).
Non-Stop Production: Features the standard Automatic Nozzle Change (ANC) device with 3 Nozzles capacity, enabling uninterrupted placement process.

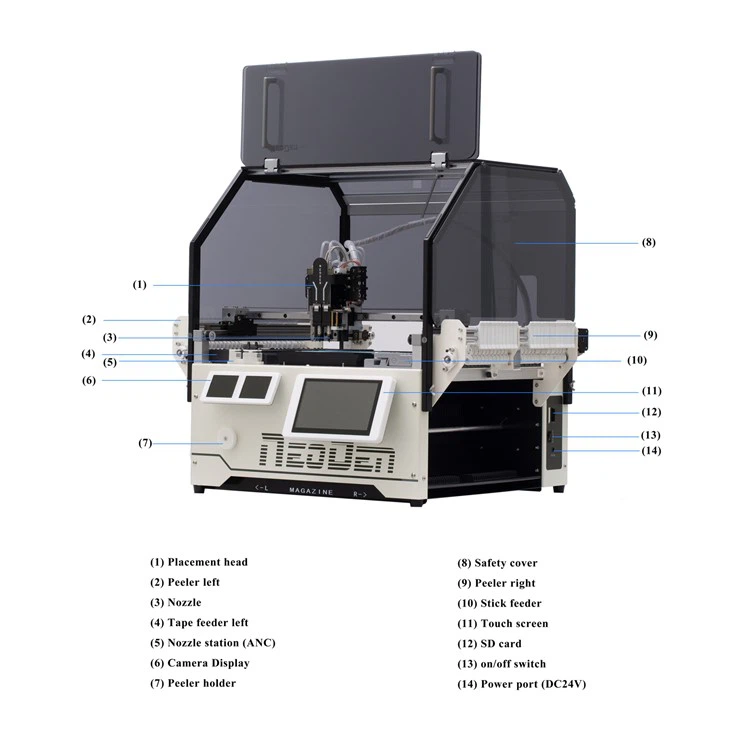

Product Details ofNeoDen YY1 Pick and Place Machine
Introduction of SMT Machine
SMT pick and place machine is a kind of automated SMT equipment, which is used to paste electronic components onto PCBs.
It recognizes the position and direction of the component by camera, automatically grabs the component and pastes it onto the PCB.
2 head SMT machine is mainly used for R&D prototyping and small SMT production line.
The small benchtop pick and place machine is easy to operate and easy to start, which improves the productivity of R&D and reduces the cost.
Benefits of NeoDen YY1 SMT pick & place machine
- Reduce the user's low cost and stable product performance - Newly designed Feeders, support the flexible ratio of different size Feeders.
- Friendly interface, simple and easy to start - Newly developed software operating system, visualization programming and mounting.
- Simple maintenance - Product line design is simple and clear, one-board high integration design.
- Automatic SMT suction nozzles changer, flexible switching of multiple suction nozzles.
NeoDen YY1 Pick and Place Machine video
Features Of NeoDen YY1
1. Independent high-definition & high-speed dual vision recognition systems, as well as dual cameras for real-time display the working status.
2. NeoDne YY1 supports bulk component feeder, strip feeder and IC tray feeder.
3. Newly designed software system & UI for visual programming and placement, which allows fast programming on the machine, friendly interface & easy operation.
4. Works in a near-perfect silent mode, making it a green and pollution-free pick and place machine.
Specification
| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |
Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |

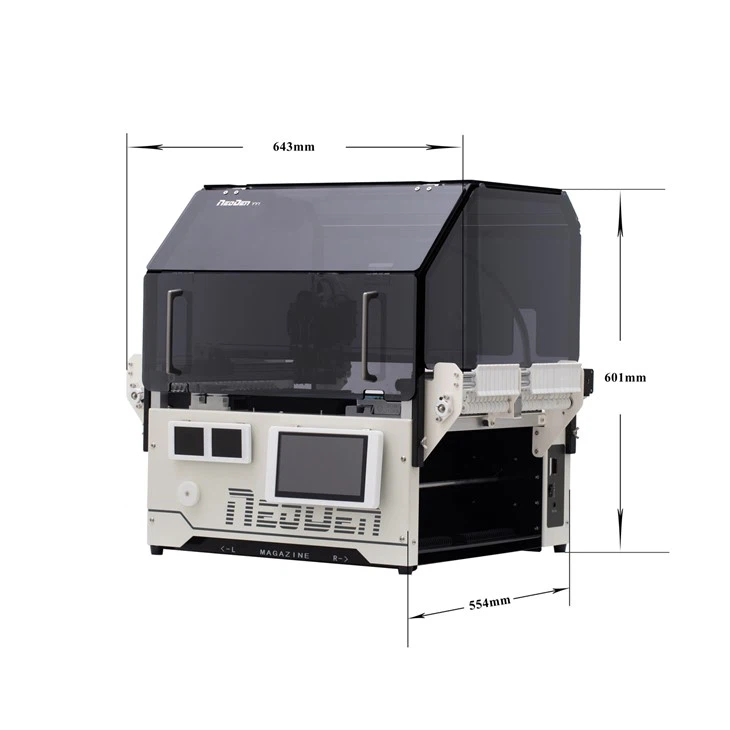

External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm(wooden box) | ||
|
Bulk Feeder: 19 |
Details

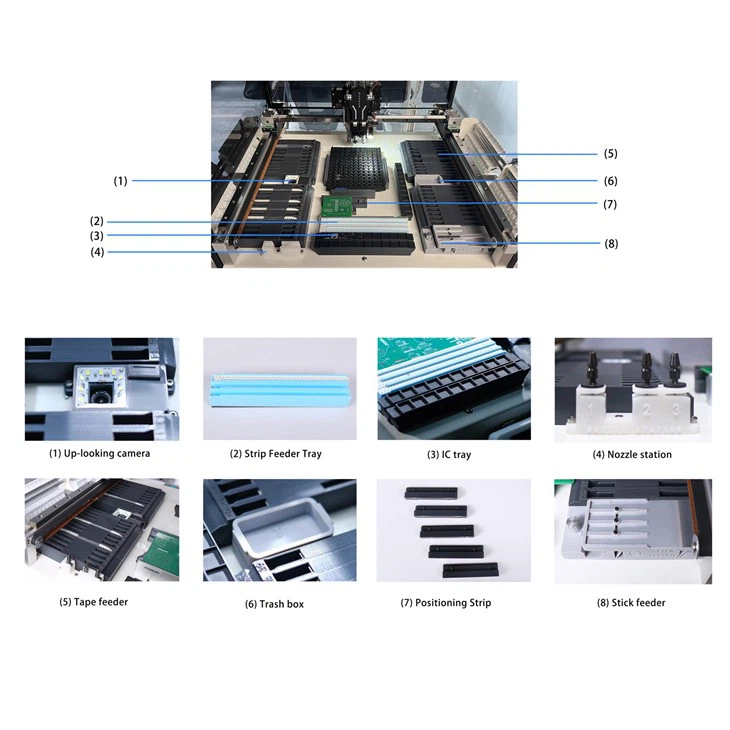

Powerful Magazines
Small size with powerful magazines and newly designed tape feeders to support large tape reels configur ation flexibly, easy to install and replace tape reels conveniently.
Brand new patented peeling gadget
It's easy to install and flexible to remove.
It doesn't need to collect wasted film.
It solve the issue of unstability and offset issue.

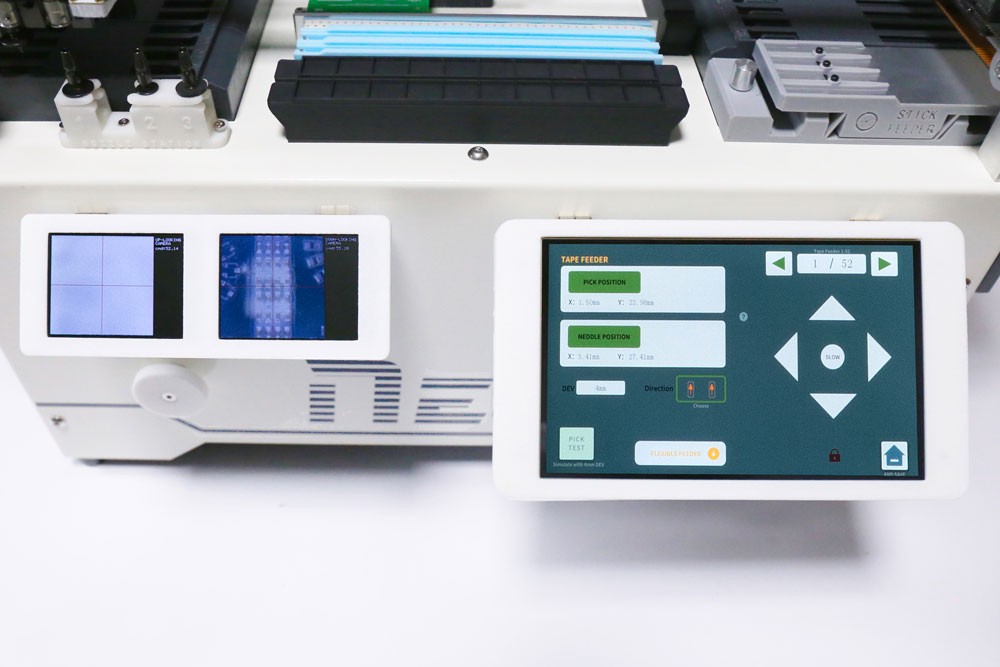

User friendly touch screen
It comes with a high-definition capacitive touch screen,
which can be adjusted up and down to meet the needs of different viewing angles.
Vacuum detection and real-time display
Equipped with a vacuum detection function, can set standard vacuum detection values on placement head flexibly, all information can be displayed visually.

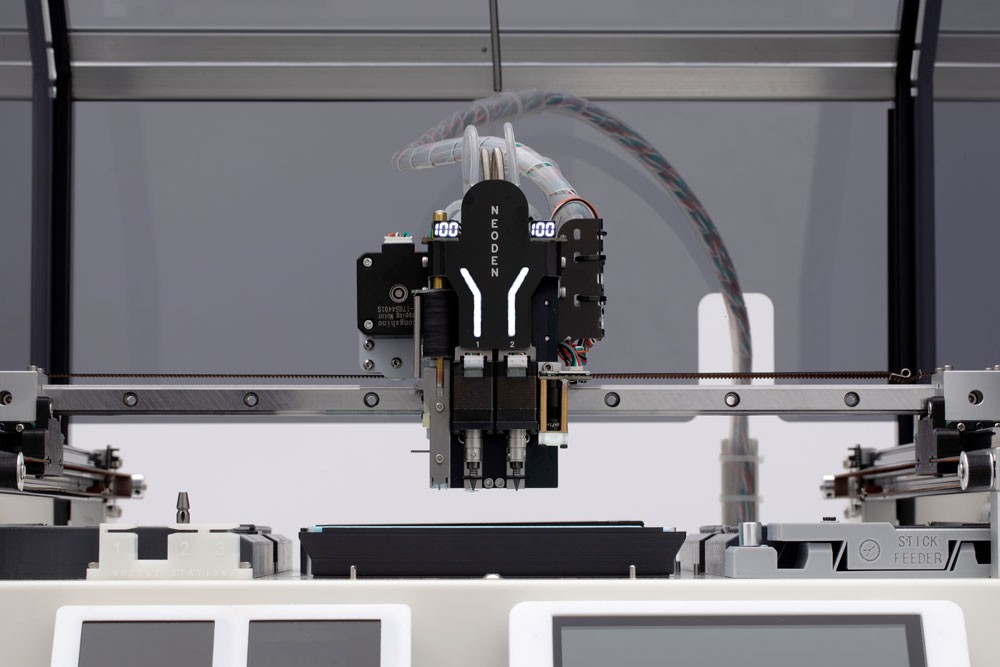

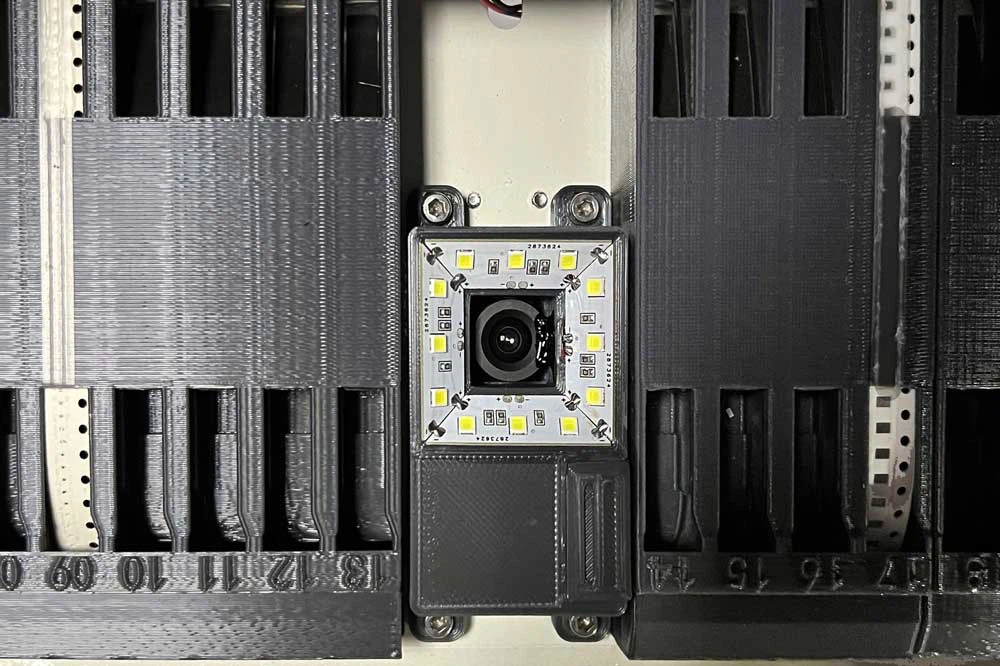

Dual vision system with built-in IC
Independent high-definition & high-speed dual vision recognition systems, as well as two cameras for real-time display the working status.
Auto nozzle changer
It has 3 slots for nozzles replacement, which realizes maximum optimum of nozzles and achieve higher continuity of production.
Our Advantages
Provide product instructions.
YouTube video tutorials.
Experienced after-sales technicians, 24 hours online service.
With our own manufactory and more than 10 years of experience in SMT industry and PNP machine.
We can provide customers with the most cost-effective products.
If you need, please feel free to contact us for more information.
About NeoDen
Factory
certification
exhibition
Application of NeoDen YY1
Desktop pick and place machines play an important role in prototyping and small-scale pilot production. Their flexibility, low cost, and ease of operation make them ideal for research organizations, startups, electronics studios, and individuals and teams that need to rapidly iterate on design solutions.
Applicable fields
1. Prototyping of electronic products in the R&D stage
In the early stages of product design, engineers need to quickly verify the feasibility of circuit design and produce a small number of functional prototypes. Configuring a small low cost pick and place machine or prototype prototyping SMT assembly line can improve efficiency and shorten the development cycle.
2. Education and academic research
Colleges and research institutions often use small pick and place machine for teaching SMT process, experimental PCB production and prototype verification of scientific research projects in their laboratories. They provide a platform for hands-on practice and help students and researchers master surface mount technology.
3. Makers and Hobbyists
for individuals and small teams engaged in the innovative development of electronic products, the configuration of a desktop pick and place machine so that they can be completed in-house small batch, high-density PCB assembly, reducing the dependence on external processing plant, to protect their intellectual property rights.
4. Medical equipment, industrial control, aerospace and other fields
Desktop pick and place machine can be used for small batch, multi-species PCBA production, to meet the demand for customization.
5. Electronic repair and rework
In the laboratory or repair station, mini pick and place machine can be used for the repair of complex electronic equipment and component replacement. Especially for fine pitch chips, it is especially important to configure a YY1.
Customer Case
Other SMT Production Line for Your Choice
If you need, please don't be hesitate to send your inquiry.
FAQ
Q: What components can the NeoDen YY1 SMT pick and place machine handle?
A: The NeoDen YY1 supports components from 0201 to 18x18 mm ICs (maximum height: 12mm), including tape, bulk, and strip components.
Q: What are the key features of NeoDen YY1 surface mount pick and place machine?
- Auto nozzle changer
- Dual vision system for high placement accuracy
- Visual programming
- Touchscreen interface
- Placement rate: 3000 CPH (vision on) / 4000 CPH (vision off)
- Accuracy: ±0.02 mm
- Supports PCB sizes up to 350x249 mm (dual-side feeders)
Q: What's the warranty period for the NeoDen YY1?
A: All pick and place machines come with a 2-year warranty.
During this period, if any issue occurs, we provide solutions within 1–2 hours via email or online support.
Spare parts will be shipped free of charge via DHL. Our after-sales team is available on both workdays and holidays.
Q: I'm Using SMT Machine for the First Time-Is It Easy to Operate?
A: We understand that learning to use a new machine can be challenging. To help you get started, we provide:
- An English user manual
- Guide videos
- Email and WhatsApp support for real-time assistance
Most customers are able to master the operation within 1–3 days.
Specification of NeoDen YY1
| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |
Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm(wooden box) | ||
|
Bulk Feeder: 19 |
