NeoDen9 Pick and Place Machine
■ Placement Rate up to 14,000CPH
■ Placement Accuracy ±0.01 mm
■ Feeder Capacity of 53 pcs Tape Feeders
The NeoDen9 is a Closed loop control system (Fully Closed-Loop), engineered for stable and efficient SMT mass production.
Advanced Vision System: Utilizes a High Resolution Flying Vision Camera System for component recognition, complemented by a High Precision Mark Camera, comprehensively enhancing component identification and PCB positioning capabilities.
Product Details ofNeoDen9 Pick and Place Machine
Why Choose NeoDen9 pick and place machine
【Efficient and Accurate】 The NeoDen9's average mounting speed can reach 9,000CPH , with a maximum speed of 14,000CPH. It uses a real-time calculation algorithm without virtual parameters for speed counting. The repeat position accuracy is ±0.01mm.
【Advanced Control System】 The machine utilizes magnetic scale technology, which is commonly used in well-known brands, to achieve true closed-loop control. This ensures long-term stable placement accuracy. The XY motion feedback is a closed-loop control system , and it is driven by a Panasonic A6 400W motor for better torque and acceleration. The screw used is a C5 precision ground screw , with an accuracy of 0.018mm within a 300mm length.
【Powerful Software Features】 The machine is equipped with NeoDen's independent Linux software, which ensures flexible and expedient upgrading , as well as easier operation and faster training. It also has a 1-click optimization function for mounting sequences and quick calibration of the picking position.
【Versatile Configuration】 The NeoDen9 has 6 independently controlled placement heads. Each head can move up and down separately, making it easy to pick up components. The standard effective mounting height reaches 16mm, meeting the requirements for flexible SMT processing. It supports both electric and pneumatic feeders with a maximum of 53 tape reel feeders. The maximum PCB width it can handle is 300mm.
【Smart and Safe】 The machine is equipped with a self-developed flying camera recognition system that uses an imported CMOS sensor, a 5-million-level industrial high-definition lens, and 289 LEDs ring shadowless light sources to ensure stable and durable effects. Patented sensor technology allows it to handle black PCBs. The front and rear feeder stacks are also equipped with patent sensors. If a Feeder is not installed correctly, the placement head will be locked to prevent head bumps and abnormalities caused by misoperation.
NeoDen 9 Pick and Place Machine Video
Description
NeoDen9 pick and place machine Equips Panosonic 400W servo motor, to ensure better torque and acceleration for achiving stable and durable placement.
Independent control of 6 placement heads, each head can be up and down separately, easy to pick up, and the standard effective mounting height reach 16mm, meet the requirements of flexible SMT processing.
Automatic track handling, double-screw linear track widening structure design.
Equips with patented sensor technology, it can handle black PCB, and 800mm length PCB can be mounted in sections.
Specification of NeoDen9 SMT Machine
| Product Name | NeoDen9 Pick and Place Machine | Repeat Position Accuracy | ±0.01mm |
| Number of Heads | 6 | Maximum Mounting Speed | 14,000CPH |
| Number of Tape reel Feeders | 53 (Yamaha Electric/Pneumatic) | Average Mounting Speed | 9,000CPH |
| Number of IC Tray | 20 | X-axis-Drive Type | WON Linear Guide / TBI Grinding screw C5 - 1632 |
| Placement Area | 460mm*300mm | Y-axis-Drive Type | WON Linear Guide / TBI Grinding screw C5 - 1632 |
| MAX Mounting Height | 16mm | Compressed Air | ＞0.6Mpa |
| PCB Fiducial Recognition | High Precision Mark Camera | Input Power | 220V/50HZ (110V/60HZ Alternative) |
| Component Recognition | High Resolution Flying Vision Camera System | Machine Weight | 500KG |

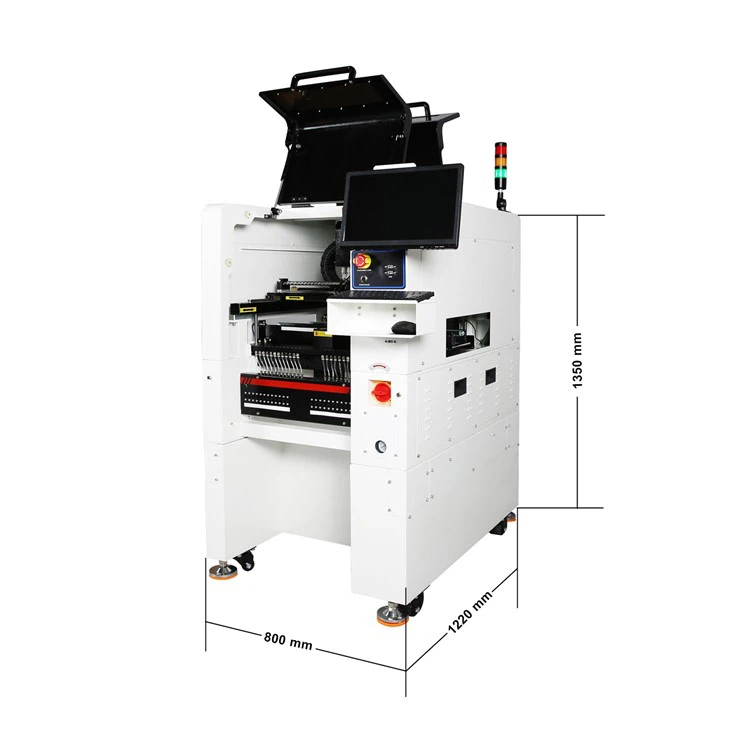

| XY Motion feedback control | Closed loop control system | Machine Dimension | L1220mm*W800mm*H1350mm |
| XY Drive motor | Panasonic A6 400W |
Details

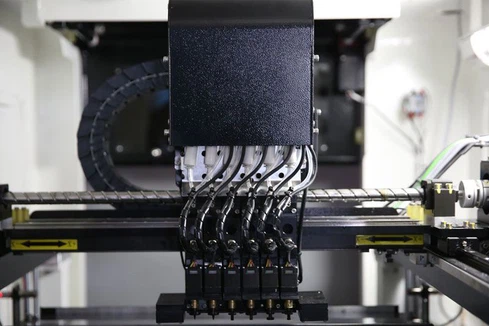

6 Placement Heads
Independent control
Each head can be up and down separately, easy to pick up
Meet the requirements of flexible SMT processing.

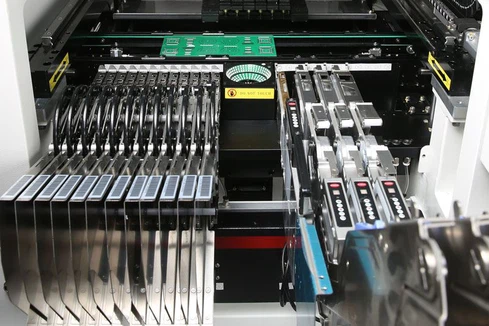

Tape Reel Feeders
Supports both electric feeder and pneumatic feeder at max 53 slots tape reel feeders with machine width 800mm only, to ensure the high efficiency with flexible & worthiest space.

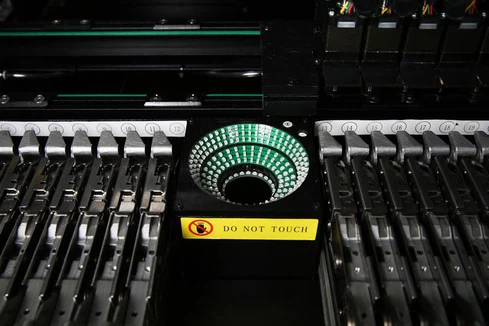

Self-developed Flying Camera
Recognition system uses imported CMOS sensor, 5 million-level industrial high- definition lens and 289 LED s ring shadowless light sources, to ensure the stable and durable effects.

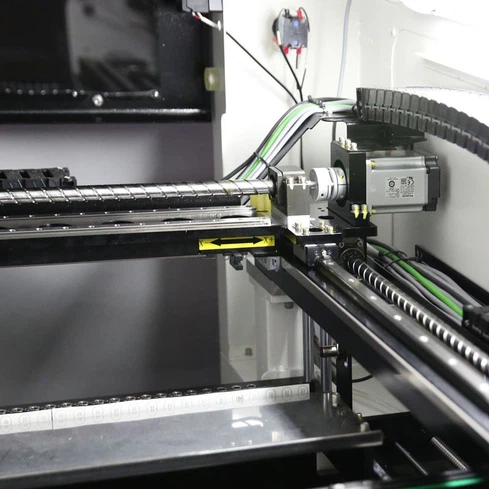

C5 precision ground screw
with an accuracy of 0.018mm within the length 300mm. It is matched with Taiwan PVP and Japan Miki's couplings, coupled with precision assembly, less wear and aging, stable and durable precision.
Servo Motor
Equips Panosonic 400W servo motor,
to ensure better torque and acceleration for achiving stable and durable placement.

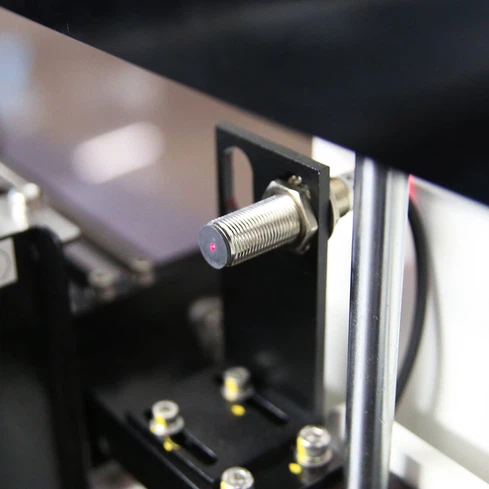

Patent Sensors
If the feeder is not installed in the correct position, the placement head will be locked, to avoid head bumps and abnormalities by misoperation.
Our Service
We are in a good position not only to supply you high quality pnp machine, but also the excellent after sales service.
Well-trained engineers will offer you any technical support.
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours.
Professional solutions can be offered within 24 hours both workday and holidays.
If you need, please feel free to contact us for more information.

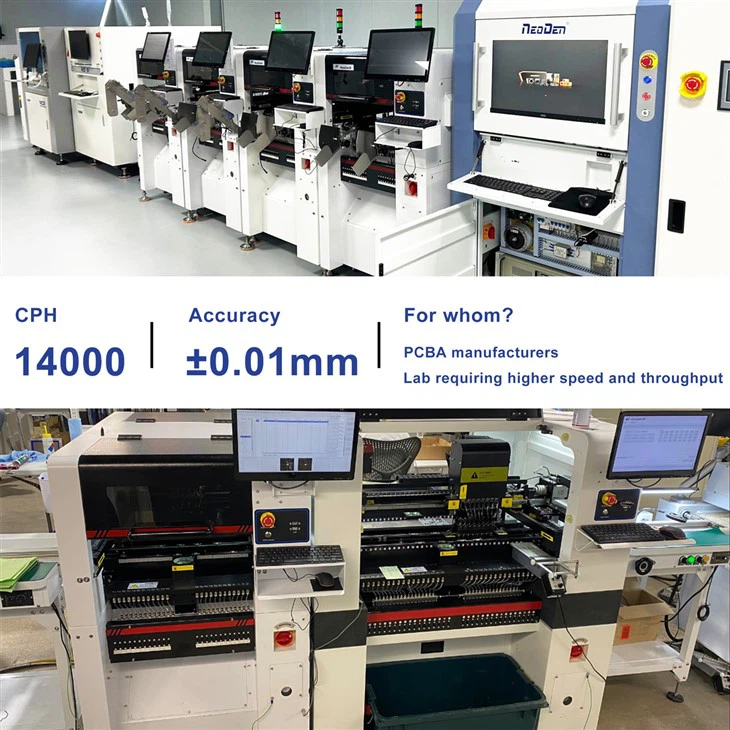

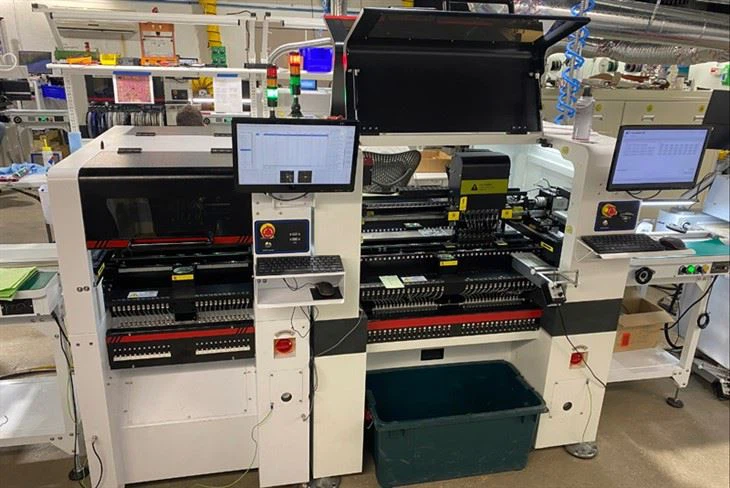

customer case of NeoDen9 Surface mount machine
About NeoDen SMT
Factory
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various PNP machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
With global presence in over 130 countries, the excellent performance, high accuracy and reliability of NeoDen pick and place machines make them perfect for R&D, professional prototyping and small to medium batch production. We provide professional solution of one stop best smt pick and place machine and PNP machine.
certification
exhibition
Other Production Line for Your Choice
If you need, please don't be hesitate to send your inquiry.
FAQ
Q: What components can the NeoDen9 SMT machine handle?
A: The NeoDen9 supports components from 0201 to 40 x 40 mm, including fine-pitch ICs, LEDs, diodes, and triodes.
It also handles standard IC packages such as QFP, SSOP, QFN, and BGA, with a maximum component height of 16 mm.
Q: What are the key features of the NeoDen9 SMT pick and place machine?
- 800 mm narrow machine body designed for office elevators
- Ideal for prototyping and small-to-medium-scale production
- 6 placement heads with max speed of 14,000 CPH / avg. 9,000 CPH
- Supports PCB sizes up to 460 x 300 mm (optional extension available)
- High precision achieved through ball screw drives and servo motors
- Component size range: 0201 to 40 x 40 mm, max height 16 mm
Q: Does the NeoDen9 SMT machine have CE certification?
A. No, the NeoDen9 does not have CE certification.
All other NeoDen pick and place machines (YY1, NeoDen4, K1830, N10P) are CE certified.
Q: Our office door/elevator is not big, is this model dimension available in normal elevator?
A: Yes, we specially design it narrow for most customers in office buildings.
Specification of NeoDen9 SMT Machine
| Product Name | NeoDen9 Pick and Place Machine | Repeat Position Accuracy | ±0.01mm |
| Number of Heads | 6 | Maximum Mounting Speed | 14,000CPH |
| Number of Tape reel Feeders | 53 (Yamaha Electric/Pneumatic) | Average Mounting Speed | 9,000CPH |
| Number of IC Tray | 20 | X-axis-Drive Type | WON Linear Guide / TBI Grinding screw C5 - 1632 |
| Placement Area | 460mm*300mm | Y-axis-Drive Type | WON Linear Guide / TBI Grinding screw C5 - 1632 |
| MAX Mounting Height | 16mm | Compressed Air | ＞0.6Mpa |
| PCB Fiducial Recognition | High Precision Mark Camera | Input Power | 220V/50HZ (110V/60HZ Alternative) |
| Component Recognition | High Resolution Flying Vision Camera System | Machine Weight | 500KG |
| XY Motion feedback control | Closed loop control system | Machine Dimension | L1220mm*W800mm*H1350mm |
| XY Drive motor | Panasonic A6 400W |
