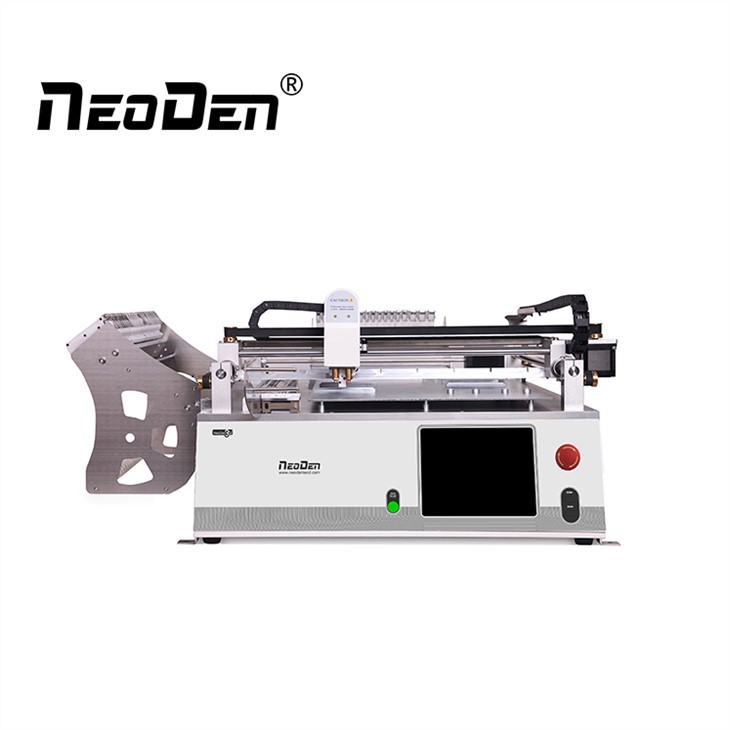

NeoDen PCB Assembly Machine
Feature Compared with the previous version TM245P, NeoDen 3V PCB SMT assembly machine adopts a high-definition camera that could mount most kinds of components including micro chips like 0402, fine-pitch ICs like QFN and so on; and with high speed and accuracy, small volume, low power, stable performance and easy operation, NeoDen 3V committed to create the greatest value and try to fulfill all demands for customers in the actual production. |
Specification
|
Produt name |
NeoDen 3V PCB SMT Assembly Machine |
| Alignment |
Vision |
|
Rotation |
±180° |
|
Placement Rate |
5000CPH (without vision); 3500CPH (with vision) |
|
Feeder Capacity |
Tape feeder: 44 (all 8mm) |
|
Vibration feeder: 0~5 |
|
|
Tray feeder: 5~10 (Customization supported) |
|
|
Board Dimension |
Maximum: 320*390mm |
|
Component Range |
Smallest components: 0402 |
|
Largest components: TQFP144 |
|
|
Max height: 5mm |
|
|
Numbers Of Pumps |
3 |
|
Placement Accuracy |
±0.02mm |
|
Operate System |
Windows XP-NOVA |
|
Power |
160~200W |
|
Electricity Supply |
110V/220V |
|
Machine Size |
820(L)*680(W)*410(H)mm |
|
Packing Size |
1001(L)*960(W)*580(H)mm |
| N.W./G.W. |
60Kg/85Kg |
Details

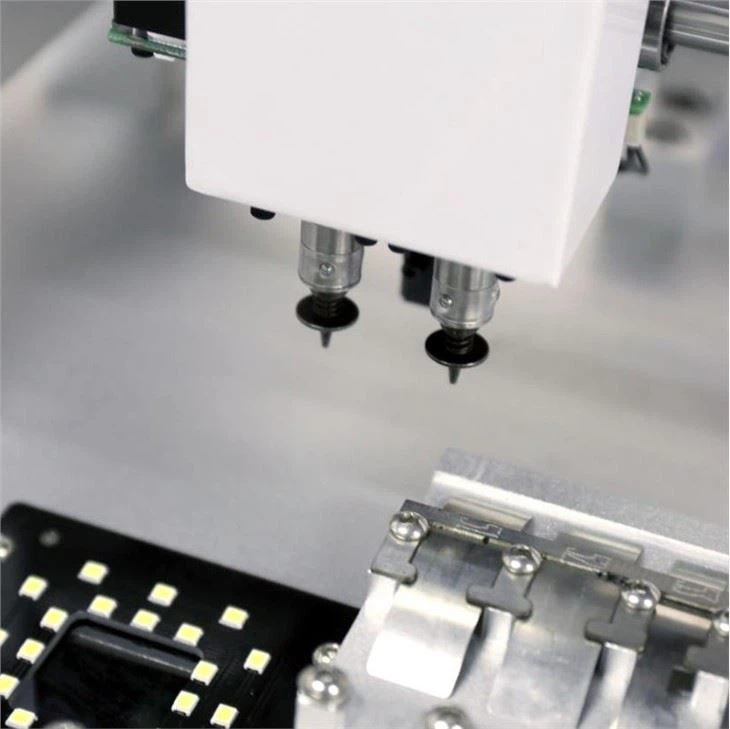

2 high-precision heads
±180° rotation
Satisfy the need of wide range components
Flexible PCB positioning
Put the component anywhere
handl well different shape of PCB
Patented automatic Peel-box
Patented electromagnetic actuators
saves you more time and effort
Integrated Controller
More stable performance and easier to do maintenance.
PCB Angle Correction
PCB angle will influence the accuracy of mounting.
The angle more closer to 0 degree the better, and the angel deviation need to be within 1 degree.
The angle of PCB is generated according to panelized PCB coordinates, but we can also adjust the angle by manual.
Click" PCB angle" button, according to the index of machine to choose two points, then a new PCB angle will be generated.
Provide one-stop SMT assembly production line
Especially a good choice for customers who prefer in prototype project as a startup device. If you need, please feel free to coantact us.
