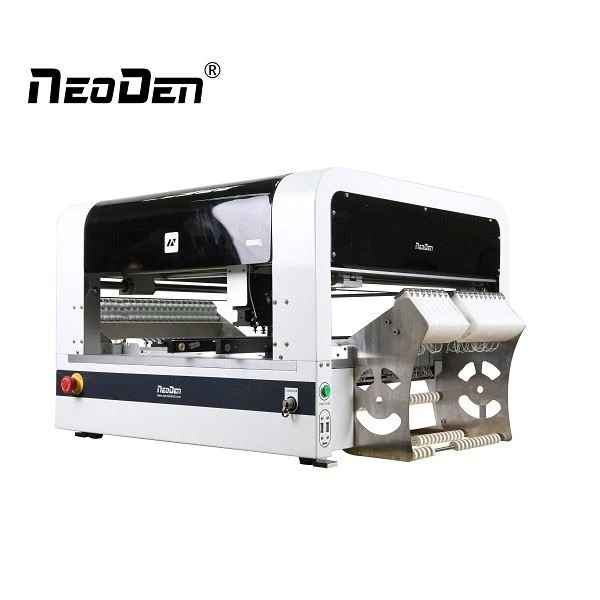

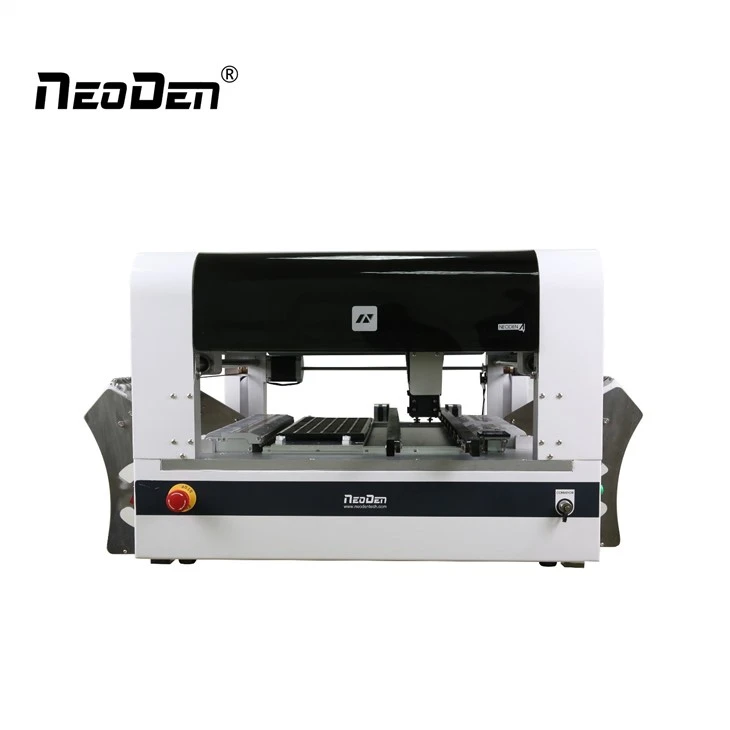

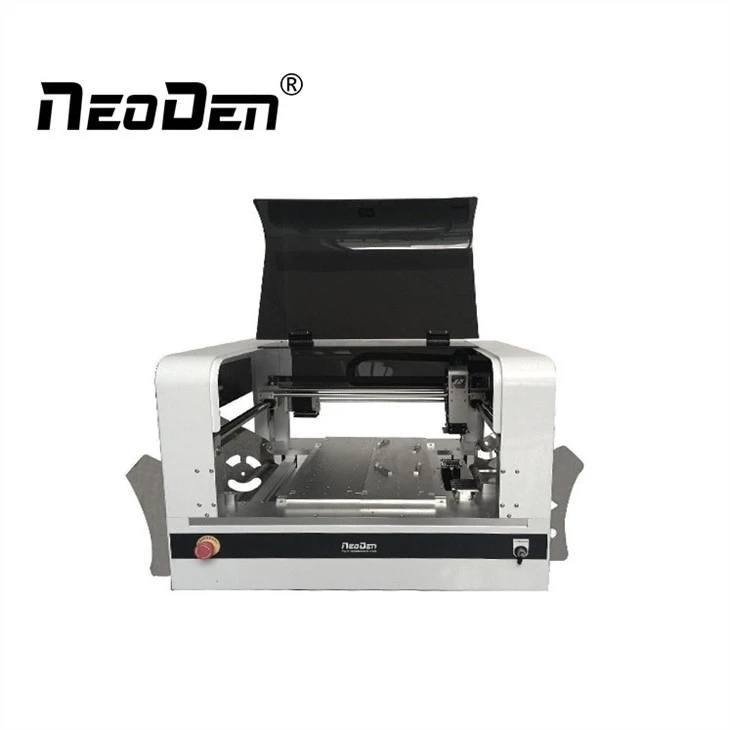

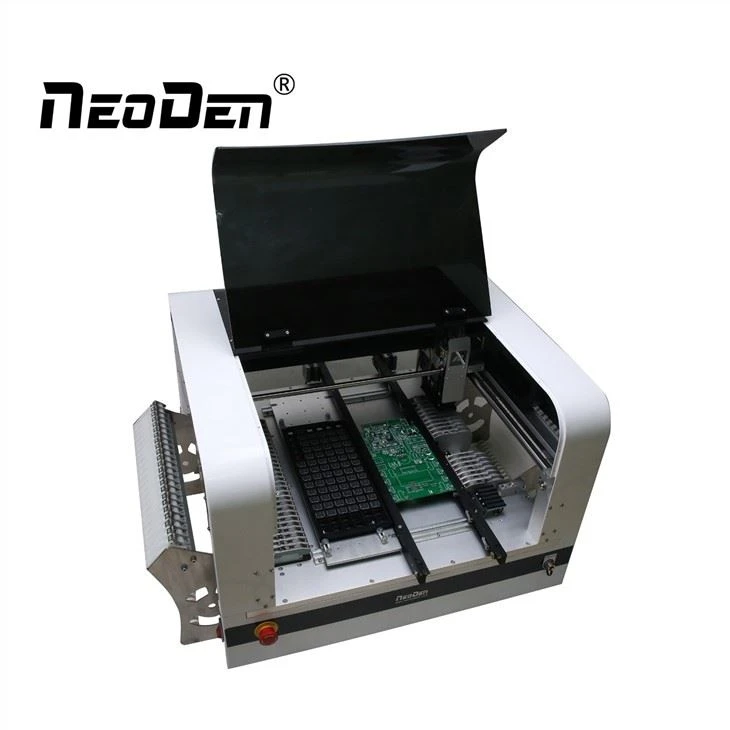

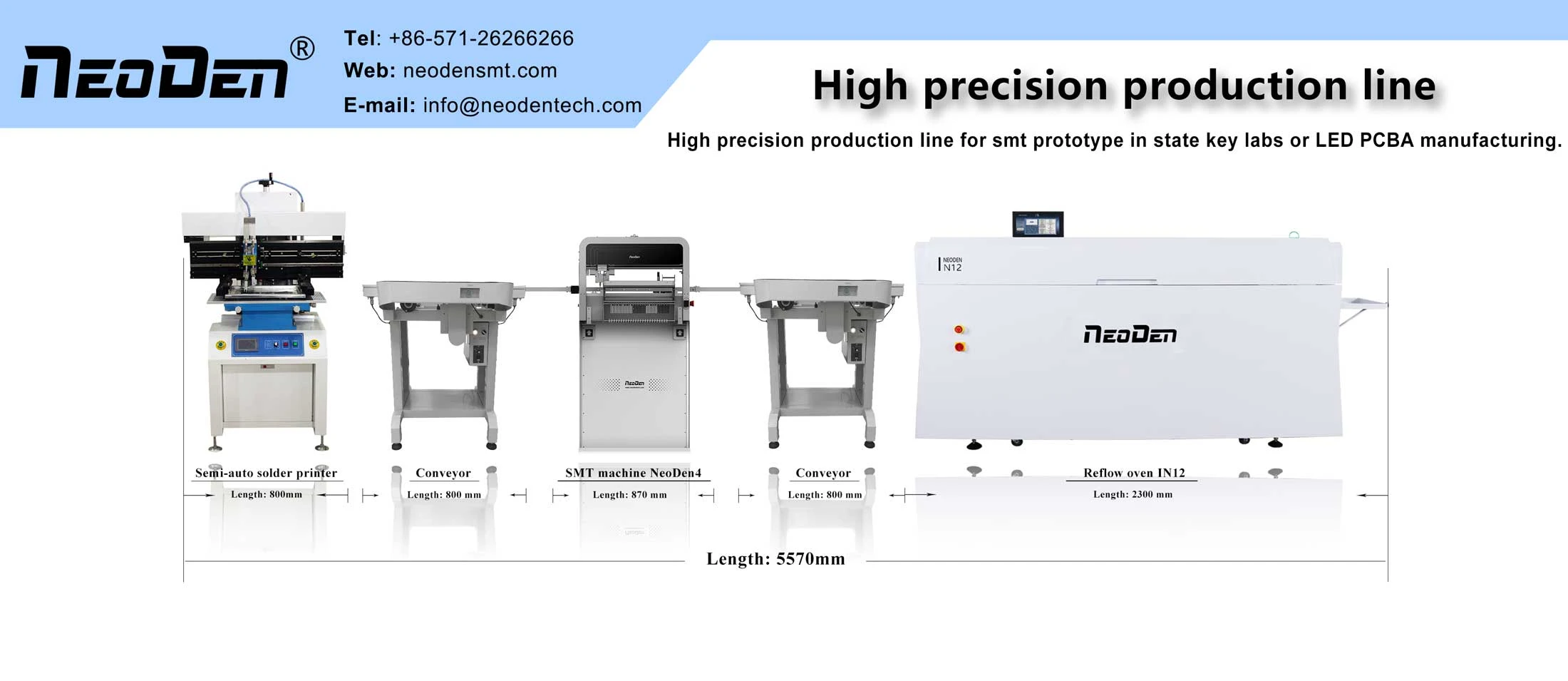

Pick and Place Machine Desktop
NeoDen4 Pick and Place Machine Desktop Video
Feature
NeoDen4 Pick and place machine desktop with high speed and accuracy, compact in body, low power, stable quality and easy operation.
It adopts our newly developed feeding system which can help to replace the tape easily and install smoothly, together with its vision system and rails feeding system, committed to create the great value for customers in actual PCB production.
Specification
| Product name | NeoDen4 Pick and Place Machine Desktop |
Machine Style | Single Gantry with 4 Heads |
Placement Rate | 4000CPH |
External Dimension | L 680*W 870*H 460mm |
Max applicable PCB | 290mm*1200mm |
Feeders | 48pcs |
Average working power | 220V/160W |
Component Range | Smallest Size: 0201 |
Biggest Size: TQFP240 | |
Max Height: 5mm |
Details
Auto Rails
A. Support connect to conventional conveyor directly.
B. Set the feeding position at anywhere.
C. Mount overlong boards easily.
Four Nozzles
Any size nozzle can be installed
Designed in a suspended, fully symmetric
Mount at the same time with 360 degrees
Vision System
(up-looking and down-looking camera)
Equip with high speed industry CCD cameras
Highly improved accuracy of placement from 0201 to BGA
Electronic Feeders
8mm tape-and-reel feeders
Adopts feeding error corrections technique
handle up to 5 separate tubes
The downward-looking camera
On the head is used for precision location of feeders and PCB placement points.
The downward looking camera also verifies proper board placement (and compensates for minor board-position inaccuracies) by auto-aligning the nozzles to multiple fiducials on the board before beginning actual pick-and-place operations.
Once the coordinates are established, the semi-closed-loop stepper motors are able to repeat these locations to 20µm accuracy without further need for this camera.
Q1: Are you a trade company or a manufacturer?
A: We are an professional manufacturer specialized in SMT Machine, Pick and Place Machine, Reflow Oven, Screen Printer, SMT Production Line and other SMT Products.
Q2: How can I place an order?
A: You can contact any of our sales person for an order.
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype, TradeManger or QQ or WhatsApp or other instant ways, in case of any delays.
Q3: How your quality guarantee?
A: We have 100% quality guarantee to customers. We will be responsible for any quality problem.
About us
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
In our global Ecosystem, we collaborate with our best partners to deliver a more closing sales service, high professional and efficient technical support.
If you need, please feel free to contact us!
