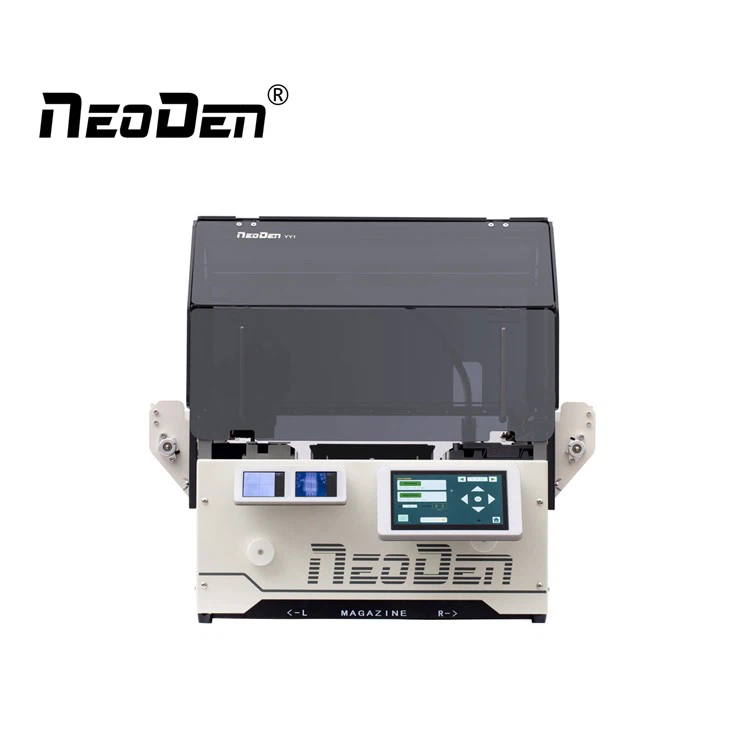

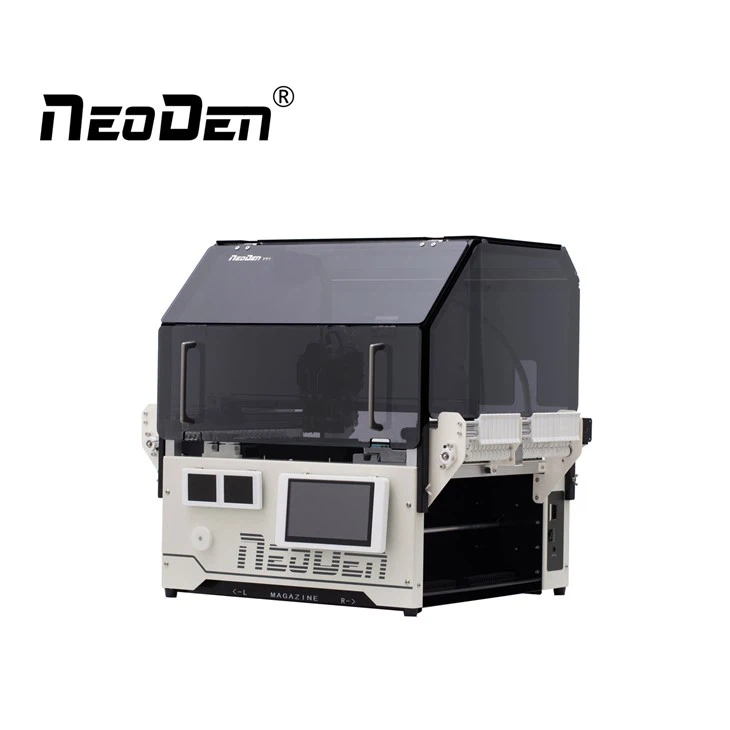

Low Cost SMT Pick And Place Machine
low cost SMT pick and place machine
|

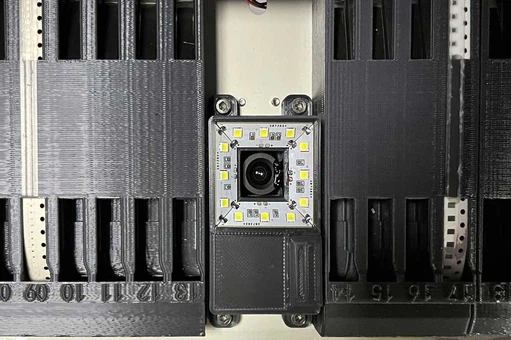

Feature Automatic nozzle changer help realizing nozzles changed flexibly. Independent high-definition & high-speed dual vision recognition systems, as well as dual cameras for real-time display the working status. Linear rail design for X, Y axis to ensure accuracy and stability, and reduce noise at the same time. The newly-designed stick feeder with its compact shape, is perfectly compatible with the tape feeder system. |
Specification
| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |
Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm(wooden box) | ||
|
Bulk Feeder: 19 |
Details
Bad Board Detection
In actual work, bad boards no need to be mounted, then you can activate this function to skip these boards automatically.
Processes of detecting bad boards:
1) According to panelized PCB to generate panelized list.
2) Choose" Auto" from "Skip" options of panelized list.
3) Click "Align" button to choose one fixed position and mark it, thus every time when machine scans this mark, it will skip this bad board.
( One common guideline is stick another colorful tag on the bad board, if stick with this tag the machine will skip the bad board, otherwise it will go on mounting)
Provide one-stop SMT assembly production line
Especially a good choice for customers who prefer in prototype project as a startup device. If you need, please feel free to coantact us.
FAQ
Q1: How long is your delivery time?
A: The general delivery time is 15-30 days after receiving your order confirmation.
Anther, if we have the goods in stock, it will only take 1-2 days.
Q2: Which payment form you can accept?
A: T/T, Western Union, PayPal etc.
We accept any convenient and swift payment term.
Q3: What's your products?
A: SMT machine, AOI, reflow oven, PCB loader, stencil printer.
About us
factory
certification
exhibition
If you need, please feel free to contact us for more information!
