High Speed 6 Heads Automatic PCB Assembly Machine With Mark Camera
■ Placement Rate up to 14,000CPH
■ Placement Accuracy ±0.01 mm
■ Feeder Capacity of 53 pcs Tape Feeders
The NeoDen9 is a Closed loop control system (Fully Closed-Loop), engineered for stable and efficient SMT mass production.
Advanced Vision System: Utilizes a High Resolution Flying Vision Camera System for component recognition, complemented by a High Precision Mark Camera, comprehensively enhancing component identification and PCB positioning capabilities.
Product Details ofHigh Speed 6 Heads Automatic PCB Assembly Machine With Mark Camera
Technical Parameters
| Product Name | NeoDen9 Pick and Place Machine | Max Mounting Height | 16mm |
| Number of Heads | 6 | PCB Fiducial Recognition | High Precision Mark Camera |
| Number of Tape reel Feeders | 53 (Yamaha Electric/Pneumatic) | Component Recognition | High Resolution Flying Vision Camera System |
| Number of IC Tray | 20 | XY Motion feedback control | Closed loop control system |
| Placement Area | 460mm*300mm | XY Drive motor | Panasonic A6 400W |
| Repeat Position Accuracy | ±0.01mm | X-axis-Drive Type | WON Linear Guide / TBI Grinding screw C5 - 1632 |
| Maximum Mounting Speed | 14,000CPH | Y-axis-Drive Type | WON Linear Guide / TBI Grinding screw C5 - 1632 |
| Average Mounting Speed | 9,000CPH | Compressed Air | ＞0.6Mpa |
| Machine Weight | 500KG | Input Power | 220V/50HZ (110V/60HZ Alternative) |
| Machine Dimension | L1220mm*W800mm*H1350mm |
Live show line from customer's factory with Automatic PCB Assembly Machine
Size comparison of Nozzles
|
Model |
Recommendation(Imperial system) |
|
CN030 |
0201 |
|
CN040 |
0402(optimal) |
|
CN065 |
0402,0603 etc. |
|
CN100 |
0805,diode,1206,1210 etc. |
|
CN140 |
1206,1210,1812,2010,SOT23,5050, etc. |
|
CN220 |
SOP series ICs,SOT89,SOT223,SOT252, etc. |
|
CN400 |
ICs from 5 to 12mm |
|
CN750 |
ICs bigger than 12mm |
|
YX01 |
3528serices Soft bead |
|
YX02 |
High power lamp beads |
|
YX03 |
Chips and BGA from 11mm to 17mm BGA |
|
YX04 |
Chips and BGA bigger than 17mm |
|
YX05 |
4148 circular diode |
|
YX06 |
3535 ball shape LED(Spherical height 1.4mm, overall height 1.9mm) |
NeoDen is a reliable manufacturer with 14 years' experience. Until now, we have exported to more than 130 countries and 10000+ sets of machines all over the world, and have built a good reputation in the market. We are in a good position not only supply you high-quality machines, but also excellent after-sale service. The well-trained engineer will provide any technical support to you.
Our key products are pick&place machine, reflow oven and solder printer, which could assemble an SMT line for PCB/LED production. Please feel free to contact us if you have any interests.
Reinforce daily maintenance
P&P machine is a high-accuracy device which requires a clean working environment with constant temperature and humidity, so it's necessary to have routine maintenance.Requirements for operator
● The operator should get basic operator training, which should cover fully all the skills and knowledge needed to safely operate the type of pick and place machine.
● Operating strictly against equipment's instruction. Don't use a machine with problems. Stop the machine once malfunction appears and contact the after-sales service staff, restart to work after the problem solved.
● The operator should be concentrated,
Observation-- to see whether there is an abnormal situation, such as peel-box doesn't work, the plastic tape is broken, etc.
Listening-- whether have a strange sound, such as noise from placement head, the sound of loss component, strange noise of conveyor, etc.
Handwork-- solve some small problems in time, such as install feeder, correction placement position, etc. If the main machine body or circuit problem, please consult after-sales staff. Formulate measures to reduce/ avoid a big problem.
Details
About Us

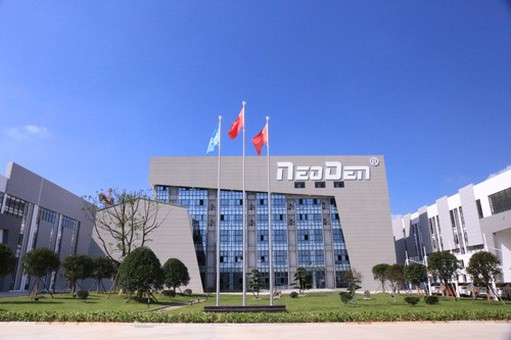

factory
certification
exhibition
What is the SMT production line?
Also Called smt assembly line
SMT is the new technology to produce the circuit. Many years ago, People produce circuit use wires, so electronic product is big and hard to use and take with. So the circuit develops direction becomes smaller, then People invented the PCB, it can put the circuit on a small PCB, and then the components invented to out the resistors, capacitors on the PCB. All technology rated in this process is SMT.
Traditional electronic components compressed into a volume of only a few tenths of the device directly to the surface assembly components paste, printed on the printed circuit board surface location of the assembly technology.
Compared with the traditional process, SMT has high density, high reliability, low cost, miniaturization, sound field automation, and other five characteristics.
