High Speed Pick And Place Machine With 8 Camera
NeoDen7 has been discontinued. Looking for an upgrade?
Discover the NeoDen9 - a more powerful and superior alternative that's the ideal choice for your needs.
Pick And Place Machine With 8 Camera for mass production
NeoDen7 is designed for mass production, with the speed of 14000 CPH, It can be used for PCB/LED batch production. And it has been supplied to many different overseas areas, we have English interface, user manual, and professional after-sales engineers.
Warranty: 2 years from us, during this period, if any part is needed to change and replace( not include nozzles), we will ship to you for free within 1 working day.
Technical Parameters
|
Max PCB size |
630*300mm(1200mm optional) |
|

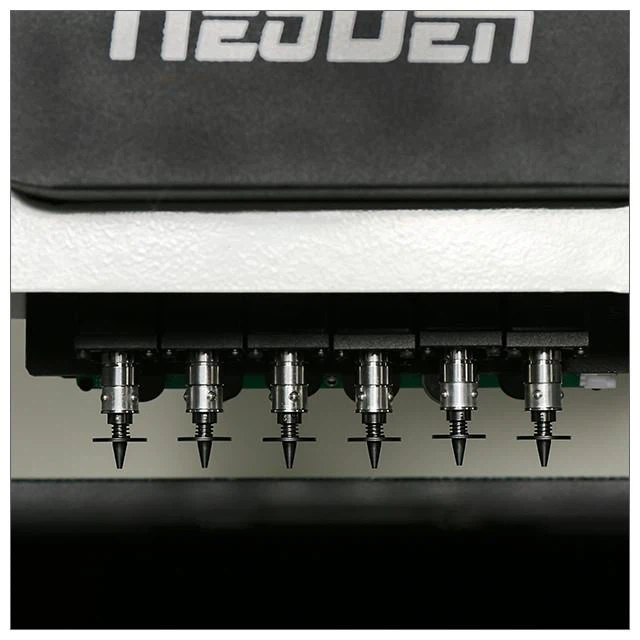

Number of Heads |
Placement head:1 Nozzle:6 |
|
Max Tape Feeder Capacity |
64 pcs(all in 8mm or 12mm feeder) |
|
Applicable tape reel feeder size |
8mm,12mm,16mm,24mm,32mm,44mm,56mm |
|
Average Placement Speed |
13,500CPH |
|
Vision Number |
8(1 fiducial camera, 6 flying cameras, 1 IC camera) |
|
Component range |
Smallest components:0402, TQFP, QFN, BGA and other conventional components |
|
Feeder Number |
Tape feeder:64 |
|
Resolution |
X/Y-axis:0.01mm, Z-axis:0.1mm |
|
Rotation |
±180°(360°) |
|
Placement Accuracy |
0.01mm |
|
Power Supply |
AC220V/110V |
|
Power |
500W |
|
Machine Size |
1420*1220*1665mm |
|
Air Source |
Above 0.6MP |
Structure of NeoDen7
If you need a small line, we also have a lot of options for you.
