Pick and Place Machine Kit
■ Placement Rate up to 4,000CPH
■ Smallest size of 0201 to a largest size of TQFP240
■ Feeder Capacity of 48 pcs Feeders
NeoDen4 Pick and place machine kit has upper-camera and down looking camera, they will display the picking process with high definition image.Multiply efficiency while ensure accuracy.
Product Details ofPick and Place Machine Kit
Features of NeoDen4 SMT Machine

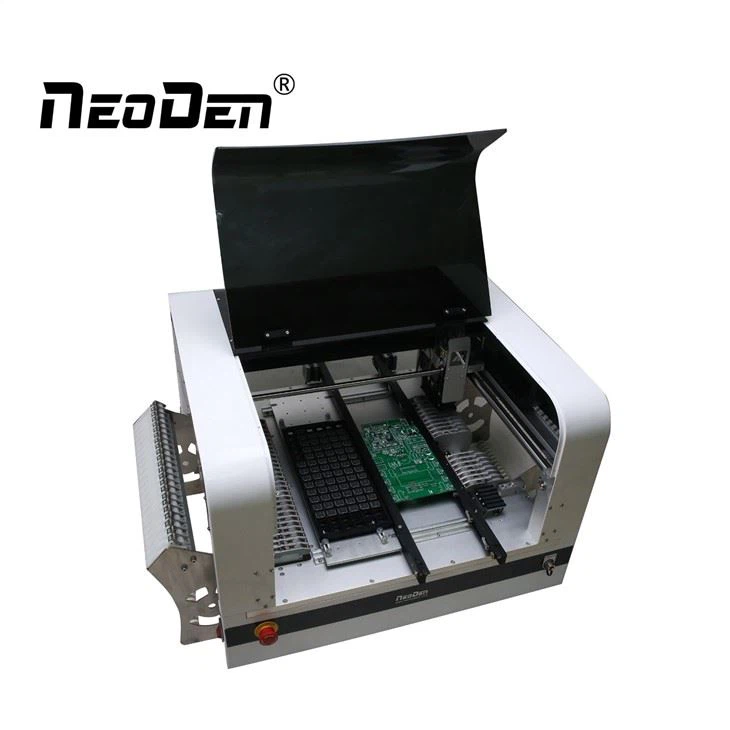

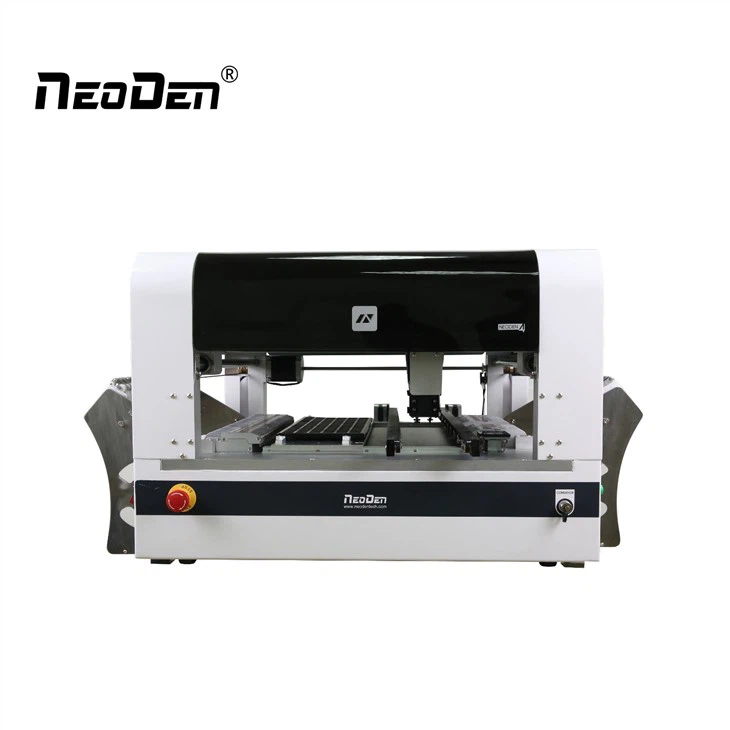

NeoDen4 Pick and place machine kit comes in two basic versions.
The base model uses magnetic fixtures to hold the PCB in place, and the rail version features an automatic feed system that will advance a board to the proper position and eject the assembled PCB back to the user or out of the back of the machine straight into the reflow oven.
The single head holds four independently-controllable nozzles. Eight different nozzle types are available, and can be combined in any combination to suit your BOM.
Each nozzle has 12mm of travel in the Z axis (for a maximum component height of 5mm) with 360 degrees of rotation.
And each nozzle is precisely aligned in relation to a high resolution CCD camera, so you can identify both pick and place coordinates for all nozzles with a single image.
The nozzles are not cheap molded plastic, but are precision machined in the Neoden factory from a proprietary design and powered by four independent internal vacuum pumps.
Specification
| Product name | NeoDen4 Pick and place machine kit |
|
Machine Style |
Single Gantry with 4 Heads |
|
Placement Rate |
4000CPH |
|
External Dimension |
L 680*W 870*H 460mm |
|
Max applicable PCB |
290mm*1200mm |
|
Feeders |
48pcs |
|
Average working power |
220V/160W |
|
Component Range |
Smallest Size: 0201 |
|
Biggest Size: TQFP240 |
|
|
Max Height: 5mm |
Details

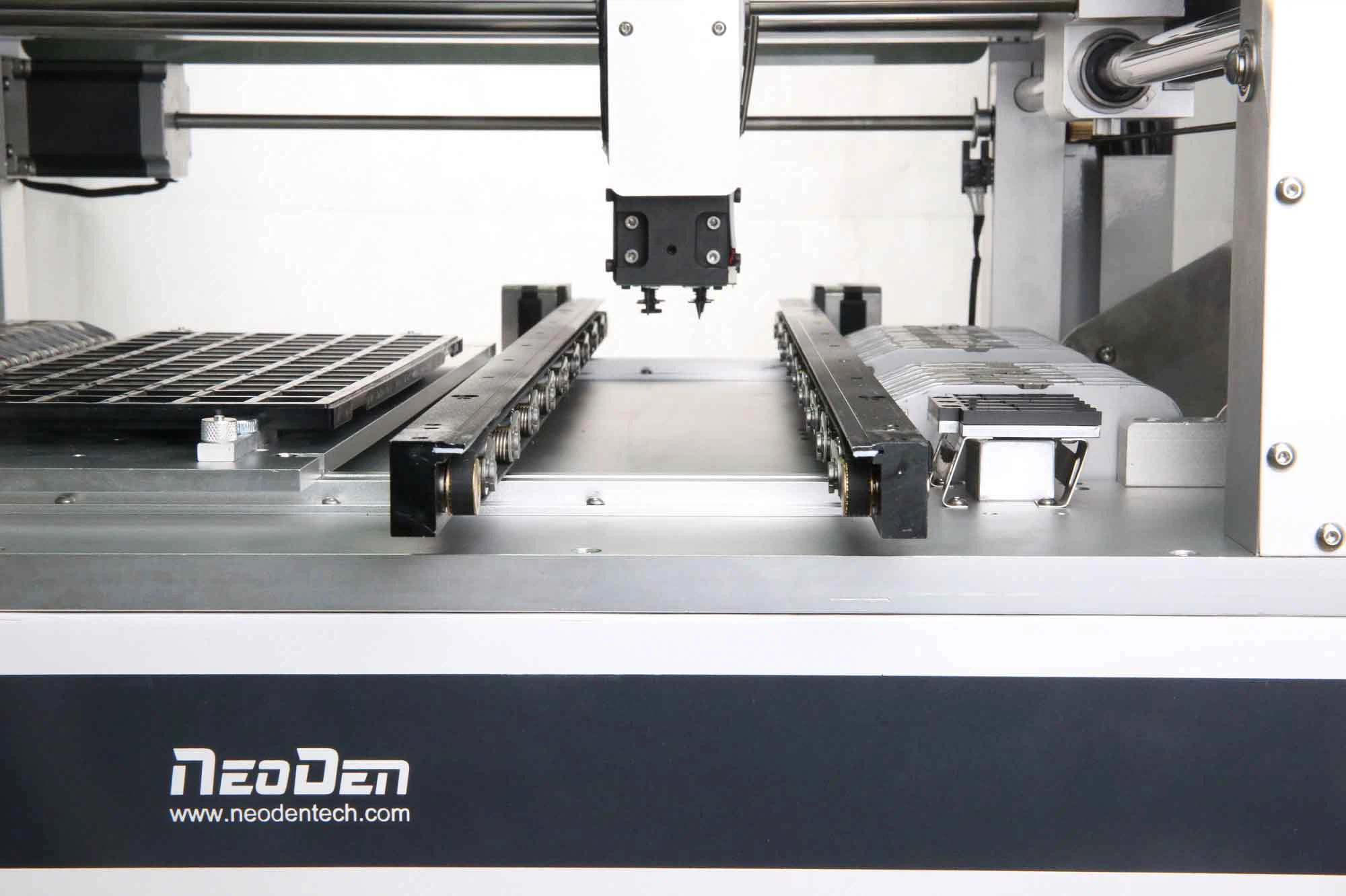

On-line dual rails
A. Support connect to conventional conveyor directly.
B. Set the feeding position at anywhere.
C. Mount overlong boards easily.
Four high precision Nozzles
Any size nozzle can be installed.
Designed in a suspended, fully symmetric and high degree of coupling way.
Mount at the same time with 360 degrees rotation at -180 to 180.

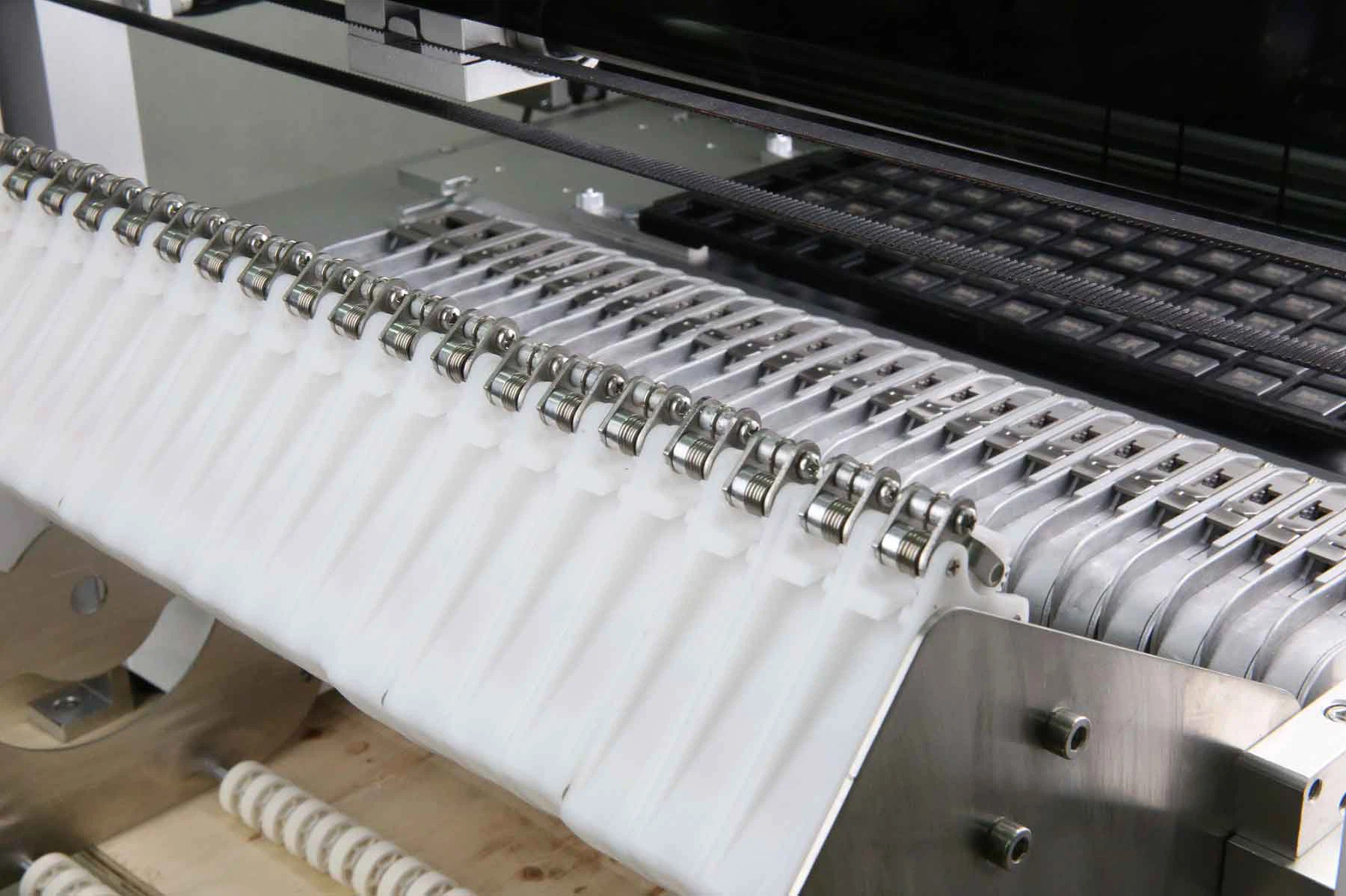

Electronic feeders
Adopts feeding error corrections technique.
Designed in a suspended, fully symmetric and high degree of coupling way.

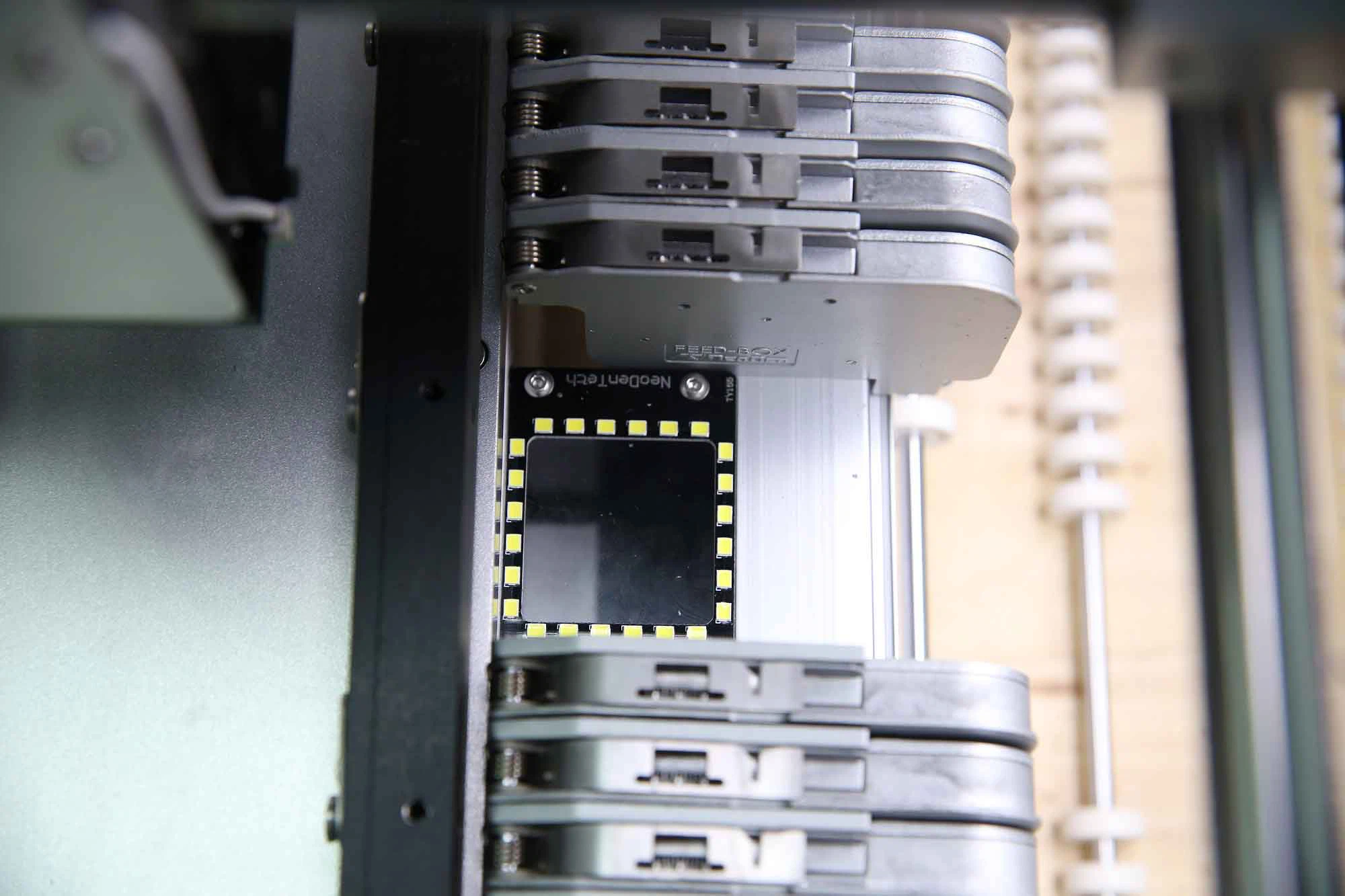

Vision system
(up-looking and down-looking cameras)
Equip with high speed industry CCD cameras.
Highly improved accuracy of placement from 0201 to BGA.
NeoDen4 Pick and Place Machine Kit Video
Packaging & Shipping
Packaging: One piece in one wooden case
Suitable quantity to an export wooden case
other packing accessories in regular
Customer required packing is available
Shipping: by air, sea, or express
Delivery time: about 15~30 days after order details and production confirmed.
package
Provide one-stop SMT assembly production line
About Us
Factory
certification
exhibition
If you need, please feel free to contact us!
FAQ
Q1. When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q2. Which payment form you can accept?
A: T/T, Western Union, PayPal etc.
We accept any convenient and swift payment term.
Q3. What's your tem of the delivery?
A: Our ordinary delivery term is FOB Xiamen. We also accept EXW, CFR, CIF, DDP, DDU etc.
We'll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
Q4. What's your products?
A: SMT machine, AOI, reflow oven, PCB loader, stencil printer.
Q5. What's the MOQ for your products?
A: Usually 1 set.
