Pick and Place LED Chips
NeoDen4 Pick and place LED chips Video

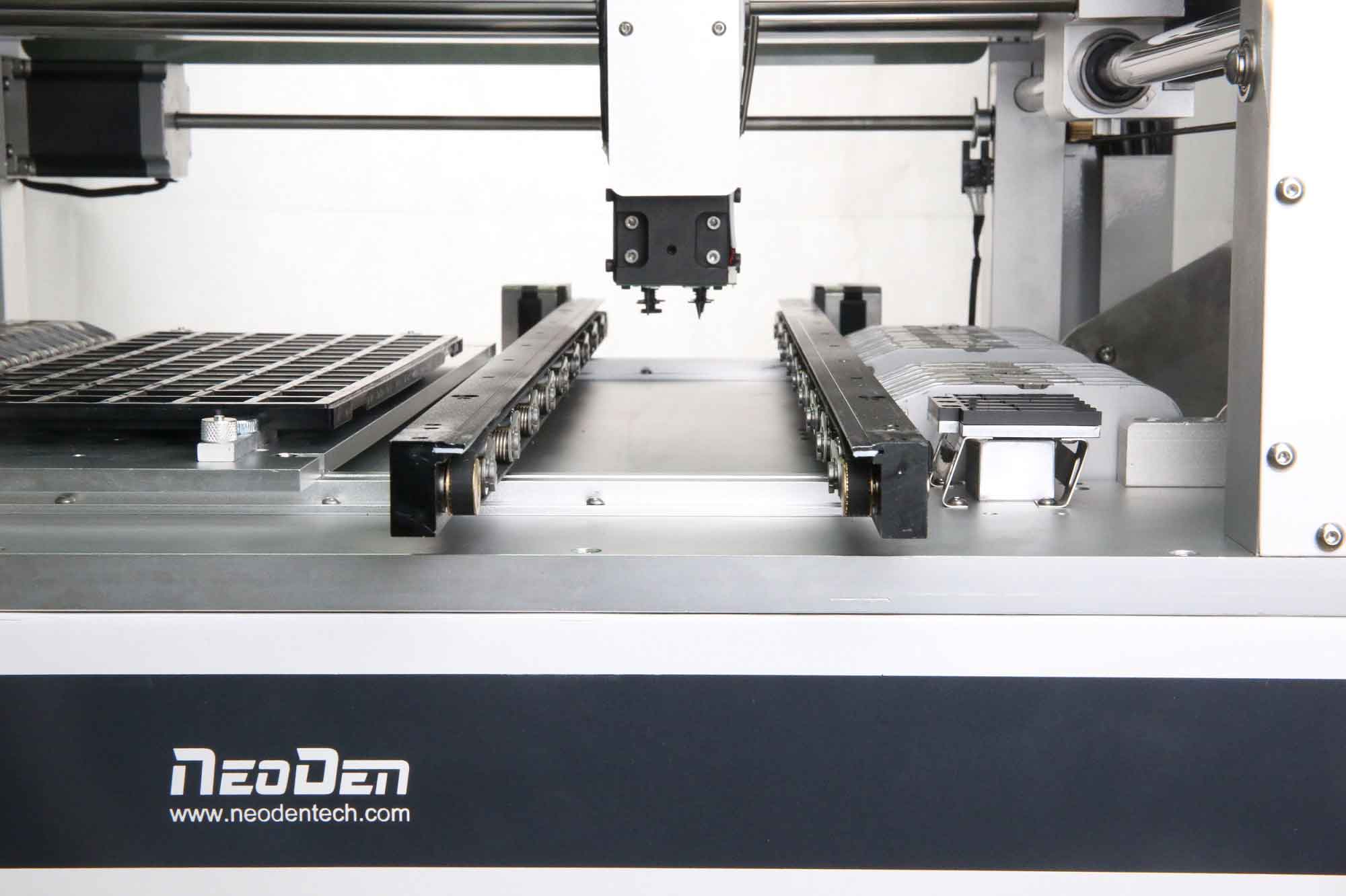

NeoDen4 Pick and place LED chips
Feature
The NeoDen 4 isn't only flexible, it's precise.
A selectable upward looking camera scans each part to ensure it is properly held to the nozzle, and automatically corrects any misalignment in the X-Y and rotational axes before placement on the PCB.
All this is controlled by a windows-based application running on an internal PC that gives you access to every parameter of the operation in an intuitive user interface.
Specification
| Product name | NeoDen4 pick and place LED chips |
|
Machine Style |
Single Gantry with 4 Heads |
|
Placement Rate |
4000CPH |
|
External Dimension |
L 680*W 870*H 460mm |
|
Max applicable PCB |
290mm*1200mm |
|
Feeders |
48pcs |
|
Average working power |
220V/160W |
|
Component Range |
Smallest Size: 0201 |
|
Biggest Size: TQFP240 |
|
|
Max Height: 5mm |
Details
Four high precision Nozzles
Any size nozzle can be installed.
Designed in a suspended, fully symmetric and high degree of coupling way.
Mount at the same time with 360 degrees rotation at -180 to 180.
On-line dual rails
A. Support connect to conventional conveyor directly.
B. Set the feeding position at anywhere.
C. Mount overlong boards easily.
Vision system
(up-looking and down-looking cameras)
Equip with high speed industry CCD cameras.
Highly improved accuracy of placement from 0201 to BGA.
Electronic Feeders
Adopts feeding error corrections technique.
Designed in a suspended, fully symmetric
and high degree of coupling way.
Quality Control
We have QC person stay on the production lines do to the inspection.
All products must have been inspected before delivery. We do inline inspection and final inspection.
1. All raw material checked once it arrive our factory.
2. All pieces and logo and all details checked during production.
3. All packing details checked during production.
4. All production quality and packing checked on final inspection after finished.
Package
Provide one-stop SMT assembly production line
About Us
Factory
Established in 2010 with 200+ employees & 27,000+ Sq.m. factory of independent property rights, to ensure the standard management and achieve the most economic effects as well as saving the cost.
3 different R&D teams with total 25+ professional R&D engineers, to ensure the better and more advanced developments and new innovation.
Skilled and professional english support&service engineers, to ensure the prompt response within 8 hours, solution provides within 24 hours.
NeoDen supplies life-long technical support and service for all of the NeoDen machines, moreover, regular software updates based on the using experiences and actual daily request from the endusers.
Certifictaion
Exhibition
If you need, please feel free to contact us!
FAQ
Q1. Do you provide the NeoDen4 software updates?
Yes, all customers who purchase our SMT equipment are entitled to free software upgrades.
Q2. Does the NeoDen4 Surface Mount Machine Require an Air Supply?
No. The machine is equipped with an internal vacuum pump and does not require an external air supply.
Q3. I'm Using This Type of Machine for the First Time - Is It Easy to Operate?
We understand that learning to use a new machine can be challenging. To help you get started, we provide:
- An English user manual
- Step-by-step guide videos
- Email and WhatsApp support for real-time assistance
- Most customers are able to master the operation within 1–3 days.
Q4. What's the lead time for the NeoDen4 SMD pick and place machine?
The standard lead time is approximately 7 working days after payment confirmation.
Q5. Does the NeoDen4 SMT machine support components with 12 mm height?
The NeoDen4 is designed to handle components up to 5 mm in height.
For taller components, we recommend the NeoDen9 model.
