Auto Solder Printer
Features
1. Accurate optical positioning system.
2. Intelligent squeegee system.
3. High efficiency and high adaptability stencil cleaning system.
4. HTGD Special PCB thickness adaptive system.
5. Printing axis servo drive.
6. 2D solder paste printing quality inspection and SPC analysis.
Specification
| Product name | Auto solder printer |
| Maximum board size（X x Y） | 450mm x 350mm |
| Minimum board size（X x Y） | 50mm x 50mm |
| PCB thickness | 0.4mm~6mm |
| Warpage | ≤1%Diagonal |
| Maximum board weight | 3Kg |
| Board margin gap | Configuration to 3mm |
| Maximum bottom gap | 20mm |
| Transfer height from the ground | 900±40mm |
| Transfer speed | 1500mm/s(Max) |
| Transfer orbit direction | L-R,R-L,L-L,R-R |
| Machine weight | Appro.1000Kg |
Details
Standard Configuration
Four way light source is adjustable, light intensity is adjustable, light is uniform.
Good identification (including uneven mark points), suitable for types of PCB with different colors.
The new wiping system ensures full contact with the stencil.
Three cleaning methods of dry, wet and vacuum.
Soft wear-resistant rubber wiping plate, thorough cleaning.

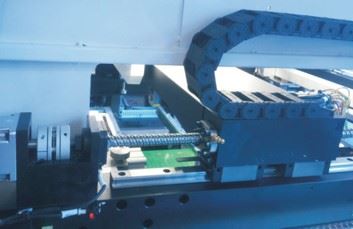

The scraper Y axis adopts servo motor drive through screw drive,to improve accuracy grade.
Operational stability and extend the service life.
Intelligent programmable setting.
two independent direct motors driven squeegee.
built-in precise pressure control system.
Packaging: one piece in one wooden case
Suitable quantity to an export wooden case
other packing accessories in regular
Customer required packing is available
Shipping: by air, sea, or express
Delivery time: about 15~30 days after order details and production confirmed.
Q1: What's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.
Q2: What's your tem of the delivery?
A: Our ordinary delivery term is FOB Shanghai.
We also accept EXW, CFR, CIF, DDP, DDU etc.
We'll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
Q3: What's your after-sale service?
A: Our quality warranty period is one year.
Any quality problem will be solved to customer satisfactions.
About us
Zhejiang NeoDen Technology Co., Ltd. founded in 2010, is a professional manufacturer specialized in SMT pick and place machine, reflow oven, stencil printing machine, SMT production line and other SMT Products. We have our own R & D team and own factory, taking advantage of our own rich experienced R&D, well trained production, won great reputation from the world wide customers.
In our global Ecosystem, we collaborate with our best partners to deliver a more closing sales service, high professional and efficient technical support.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist everywhere.
If you need, please feel free to conatct us for more information.
