Full Automatic Screen Printer
Full automatic screen printer
Description
-
Accurate optical positioning system.
-
Intelligent squeegee system.
-
High efficiency and high adaptability stencil cleaning system.
-
HTGD Special PCB thickness adaptive system.
-
Printing axis servo drive.
-
2D solder paste printing quality inspection and SPC analysis.
Specification
| Product name | Full automatic screen printer | Maximum board weight | 3Kg |
| Maximum board size(X x Y) | 450mm x 350mm | Board margin gap | Configuration to 3mm |
| Minimum board size(X x Y) | 50mm x 50mm | Maximum bottom gap | 20mm |
| PCB thickness | 0.4mm~6mm | Transfer height from the ground | 900±40mm |
| Warpage | ≤1% Diagonal | Transfer speed | 1500mm/s (Max) |
| Transfer orbit direction |
L-R, R-L, L-L, R-R |
Machine weight |
Appro.1000Kg |
Details

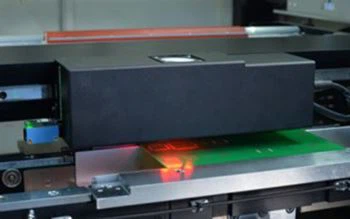

Four way light source is adjustable, light intensity is adjustable, light is uniform.
Good identification (including uneven mark points),
suitable for types of PCB with different colors.

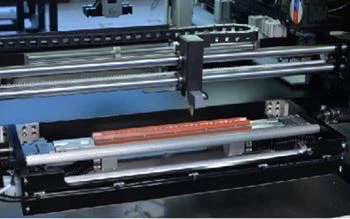

The new wiping system ensures full contact with the stencil.
Three cleaning methods of dry, wet and vacuum.
Soft wear-resistant rubber wiping plate, thorough cleaning.

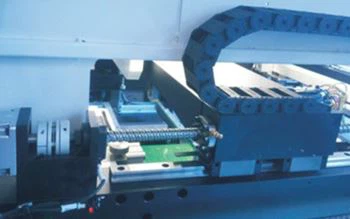

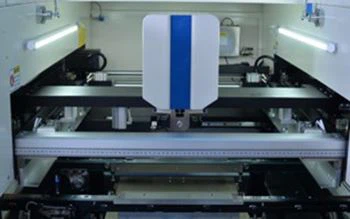

The scraper Y axis adopts servo motor drive through screw drive, to improve accuracy grade.
Operational stability and extend the service life.
Intelligent programmable setting.
two independent direct motors driven squeegee.
built-in precise pressure control system.
Our Service
1. More Professional service in PNP machine field.
2. Better manufacture ability.
3. Various payment term to choose: T/T, Western Union, L/C, Paypal.
4. High quality/Safe material/Competitive price.
5. Small order available.
6. Quickly response.
7. More safe and fast transport.

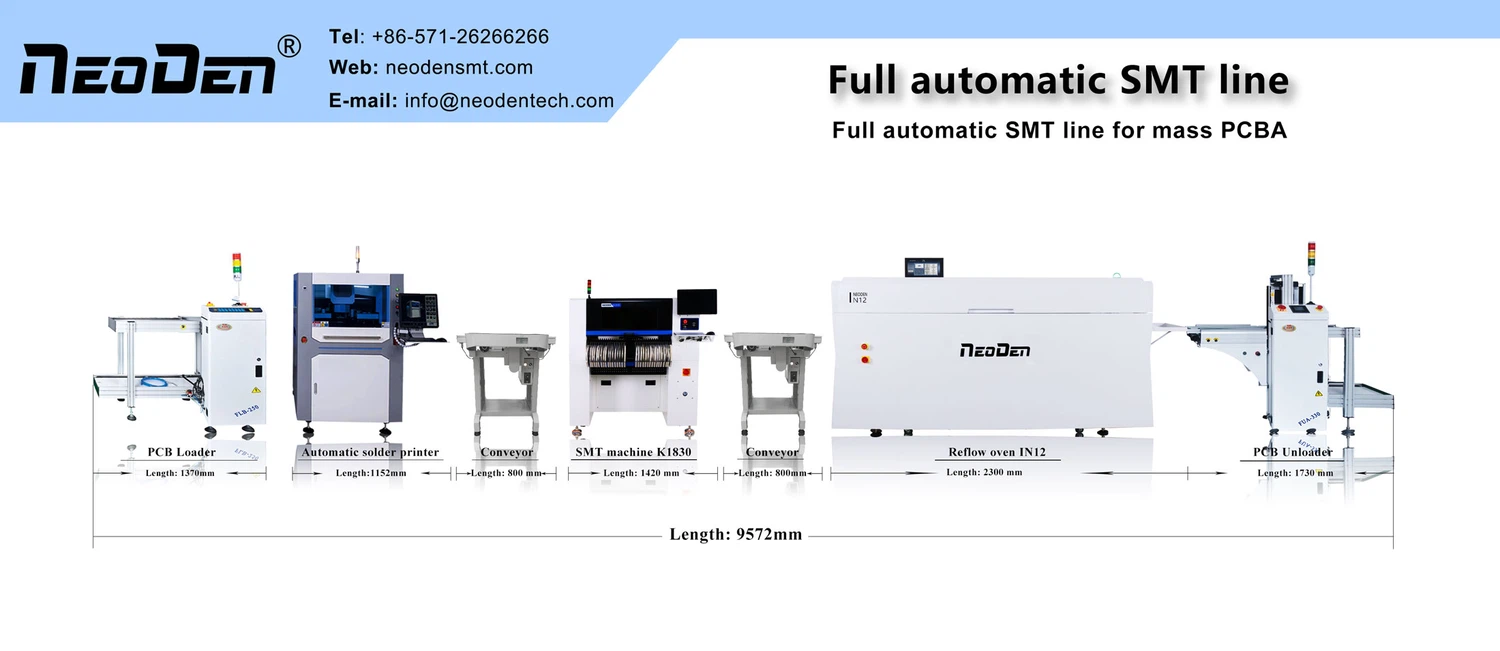

Provide one-stop SMT assembly production line
FAQ
Q1: Can l visit your factory?
A: By all means, we warmly welcome your arrival.
Before you take off from your country, please let us know.
We will show you the way and arrange time to pick you up if possible.
Q2: Can I request to change the form of packaging and transportation?
A: Yes, we can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
Q3: What is your advantage compared with your competitors?
A: (1). Qualified Manufacturer
(2). Reliable Quality Control
(3). Competitive Price
(4). High Efficiency working (24*7hours)
(5). One-Stop Service
About us

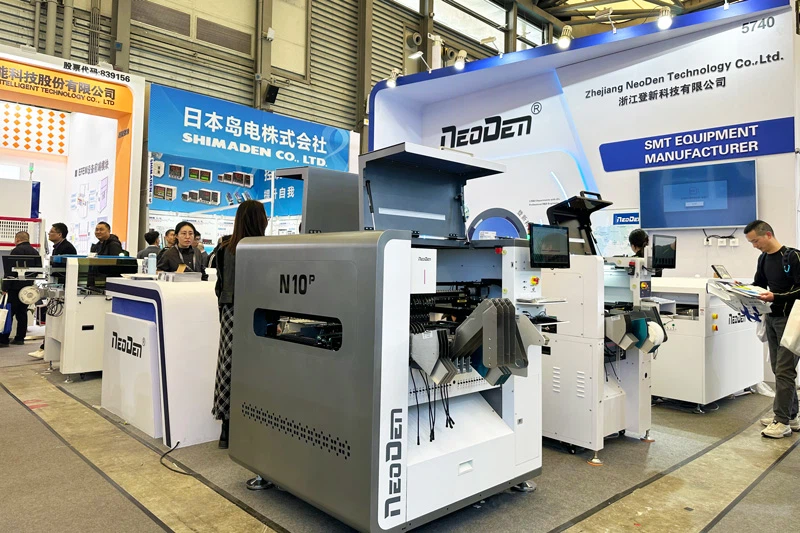

exhibition
certification
Products Description
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
With global presence in over 130 countries, the excellent performance, high accuracy and reliability of NeoDen PNP machines make them perfect for R&D, professional prototyping and small to medium batch production. We provide professional solution of one stop SMT equipment.
If you need, please feel free to conatct us for more information.
