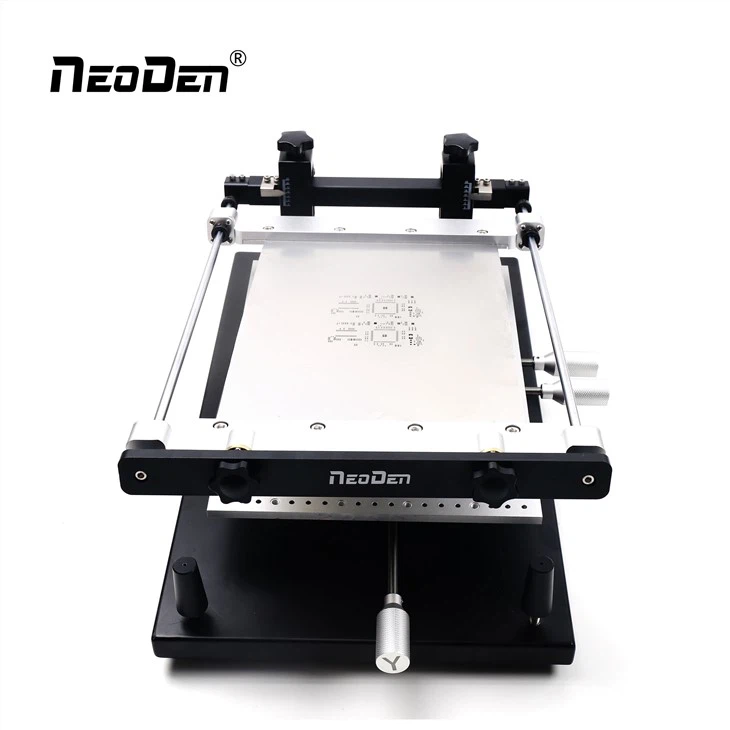

Solder Paste Printing
Features
1. Rulers of stencil fixed frame for reference lines,ensure the levelness between stencil and PCB.
2. The mechanical fixation frame for quick installation and replacement of frameless stencils,ensure high-efficiency but low-cost.
3. Support for single sided as well as double sided PCB.
4. Adjustable rubber footing,ensure the flatness while operating.
Specification

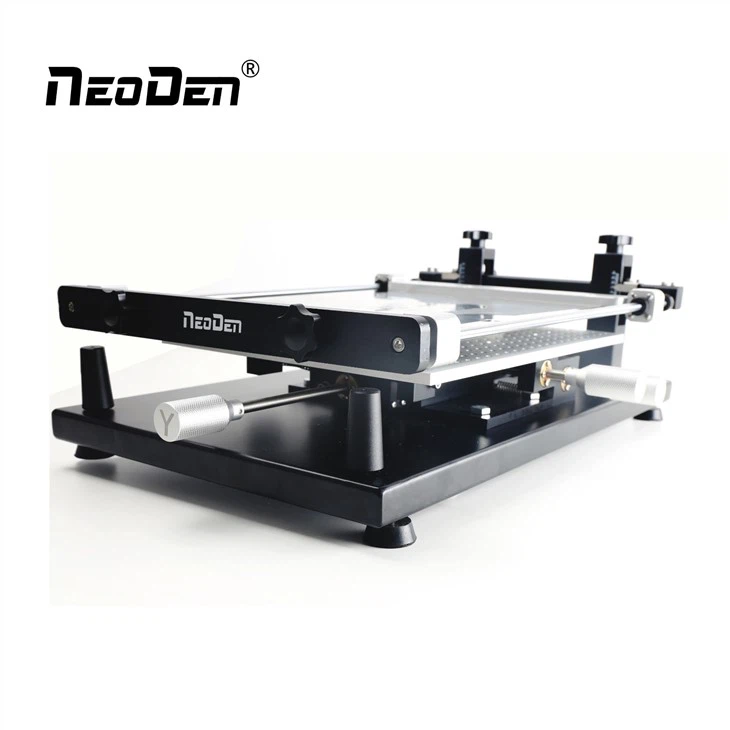

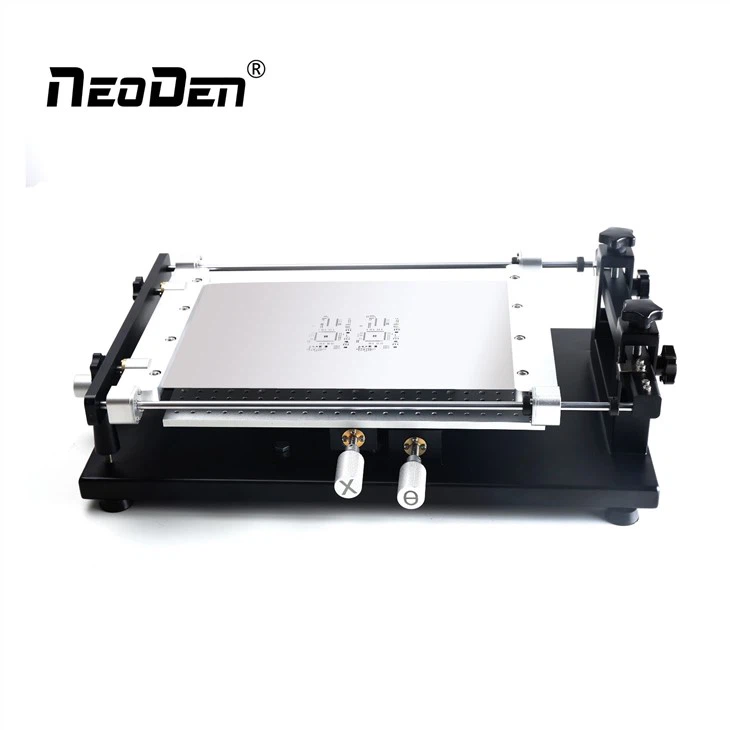

Product name | NeoDen FP2636 solder paste printing |
Max PCB Size | 11"× 15" - 280×380mm |
Min PCB Size | 0.4"× 0.2" - 10×5mm |
Screen Stencil Size | 10"× 14" - 260×360mm |
Printing Speed | Labor control |
PCB Thickness | 0- 0.8" - 0-20mm |
Platform Height | 7.5" - 190mm |
Repeatability | ±0.01mm |
Max Rotation Angle | ±15° |
| Positioning Mode | Outside/Reference Hole |
Details
Rulers of stencil fixed frame
Rulers of stencil fixed frame for reference lines
Convenience operating
1. Straight damping shaft

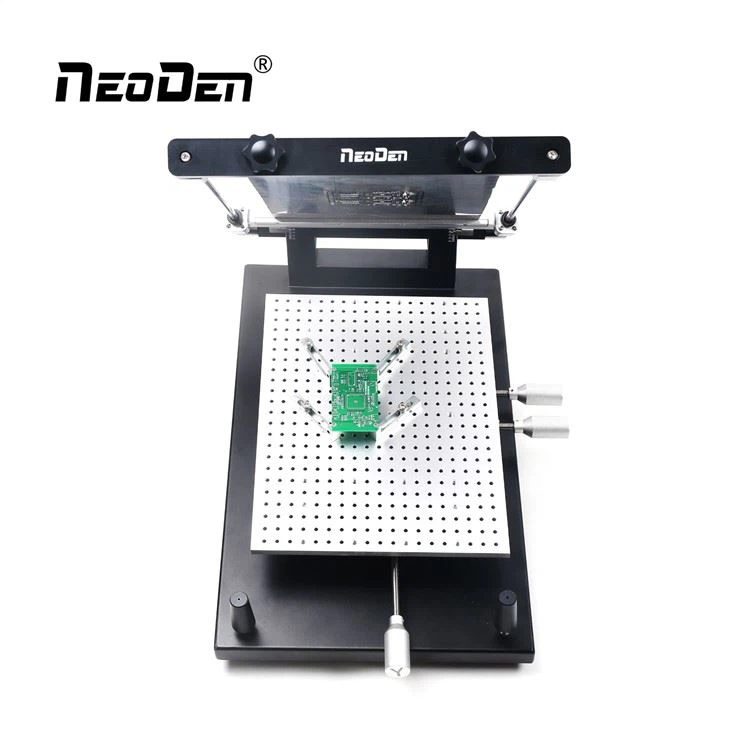

2. L supports and pins to fix PCB
Adjustment handle
1. T screw rod regulating handle
2. Minimum lead pitch achieved 1mm
3. Letter mark for each regulating handle
Standard Accessories
Accessory box
Stirring knife, Scraper blade
Our Service
We have QC person stay on the production lines do to the inspection.
All products must have been inspected before delivery.
We do inline inspection and final inspection.
1. All raw material checked once it arrive our factory.
2. All pieces and logo and all details checked during production.
3. All packing details checked during production.
4. All production quality and packing checked on final inspection after finished.
If you need, please feel free to contact us for more information.
Q1: How can I place an order?
A: You can contact any of our sales person for an order.
Please provide the details of your requirements as clear as possible.
So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype, TradeManger or QQ or WhatsApp or other instant ways, in case of any delays.
Q2: Have your products been exported?
A: Yes, they have been exported to USA, Canada, Australia, Russia, Chile, Panama, Nicaragua, UAE, Saudi Arabia, Egypt, Sri Lanka, Nigeria, Iran, Vietnam, Indonisia, Singapore, Greece, Netherland, Georgia, Romania, Ireland, India, Thailand, Pakistan, Philippines, Singapore, HK, Taiwan...
Q3: What products you sell?
A: Our company deal in the following products:
SMT equipment
SMT accessories: Feeders, Feeder parts
SMT nozzles, nozzle cleaning machine, nozzle filter.
