SMT Screen Printer
NeoDen FP2636 SMT screen printer
Features
1. Letter mark for each regulating handle, better and easier to operate.
2. Straight damping shaft, ensure the stencil fixed frame can be fastened at random angles, to improve convenience while operating.
3. L supports and pins to fix PCB, applicable for multiple types PCBs' fixation and printing, more flexible and convenient.
Specification
Product name | NeoDen FP2636 SMT screen printer | PCB Thickness | 0- 0.8" - 0-20mm |
Max PCB Size | 11"× 15" - 280×380mm | Platform Height | 7.5" - 190mm |
Min PCB Size | 0.4"× 0.2" - 10×5mm | Repeatability | ±0.01mm |
Screen Stencil Size | 10"× 14" - 260×360mm | Max Rotation Angle | ±15° |
Printing Speed | Labor control | Positioning Mode | Outside/Reference Hole |
Details

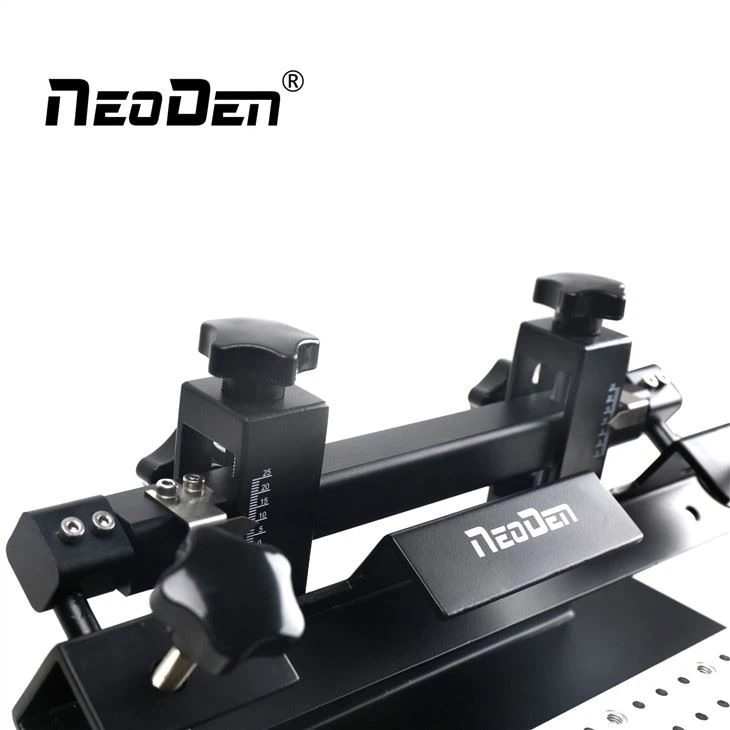

Rulers of stencil fixed frame
Rulers of stencil fixed frame for reference lines
Convenience operating
1. Straight damping shaft
2. L supports and pins to fix PCB
Adjustment handle
1. T screw rod regulating handle
2. Minimum lead pitch achieved 1mm
3. Letter mark for each regulating handle
Standard Accessories
Accessory box
Stirring knife, Scraper blade
User Instruction
I. Preparation:
FP2636 stencil printer, frameless stencil, PCB, accessory box, solder paste, stirring knife, scraper blade
II. Install the frameless stencil:
Loosen the four "Set screw", adjust the "rear stencil fixing platen" to a suitable position, loosen the 8 screws on the front and rear stencil fixing platen, and put in the "frameless stencil", tighten the screws.
III. Place the PCB:
Install four "L-shaped seats" and "positioning pins" according to the actual positioning holes on the PCB. (PS: Due to the limited XY adjustment range, the position of the "PCB" should be as close as possible to the hole location of the frameless stencil),if the PCB is easy to deform, you can install the PCB top post to the size of the PCB.
IV. Adjust the stencil:
Adjust the "height adjustment handle" to adjust the height of the stencil, adjust the x, y and angle adjustment handle to adjust the X/Y position.
If you need, please feel free to contact us for more information.
