SMT Stencil Solder Printer for Solder Paste Apply
Brief Introduction
FP2636 is used to covering the solder paste to the PCB surface by making one Stencil frame according to the different PCBs, high flexibility ensures high printing precision, support PCBs which have components on both sides.
Specification
Model | FP2636 (Support Frame Stencil) | PCB Thickness | 0.5-10mm |
PCB Size/PCB | 260*360mm | Platform height | 190mm |
Max Frame Size | 500*400mm | Repeatability | ±0.01mm |
Screen Stencil Size | 260*360mm | Max Rotation Angle | ±15 Degree |
Printing Speed | Labor control | Positioning Mode | Outside/Reference Hole |
Fine Adjustment Range | X/Y/Z Axis (All ±15mm) | N.W. | 11KG |
Positioning Pin Size | 1mm/1.5mm/2.0mm/2.5mm/3mm | G.W. | 13KG |
Packing Size | 660×470×245mm |
Features
1. T screw rod regulating handle, ensure adjustment accuracy and levelness of PCB fixed plane, minimum lead pitch achieved 1mm.
2. Adjustable rubber footing,ensure the flatness while operating.
3. Letter mark for each regulating handle, better and easier to operate.
4. Rulers of stencil fixed frame for reference lines, ensure the levelness between stencil and PCB.
5. Straight damping shaft, ensure the stencil fixed frame can be fastened at random angles, to improve convenience while operating.
6. L supports and pins to fix PCB, applicable for multiple types PCBs' fixation and printing,more flexible and convenient.
7. Support for single sided as well as double sided PCB.
Details

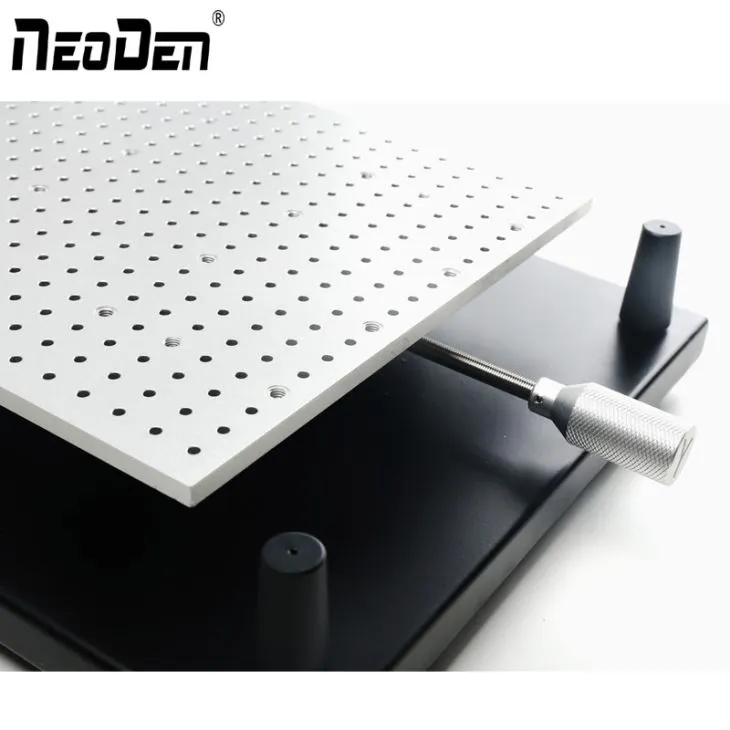

Adjustment handle
1. T screw rod regulating handle
2. Minimum lead pitch achieved 1mm
3. Letter mark for each regulating handle
Convenience operating
1. Straight damping shaft
2. L supports and pins to fix PCB
Rulers of stencil fixed frame
Rulers of stencil fixed frame for reference lines
Warranty
Our various smt lines are good choices for
A: Fast&accurate prototype
B: Small to Medium SMT Production
C: Mass SMT Production
