SMT Pick and Place Machine with 2 Heads

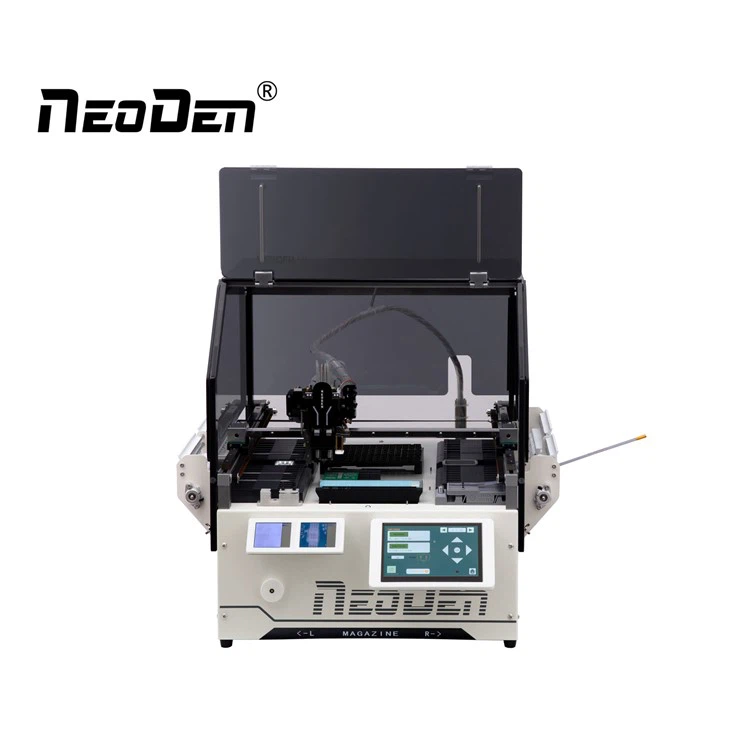

neoDen yY1 SMT Pick and place machine with 2 heads
Feature
NeoDen YY1 SMT pick and place machine with 2 heads Independent high-definition & high-speed dual vision recognition systems, as well as dual cameras for real-time display the working status.
Linear rail design for X, Y axis to ensure accuracy and stability,and reduce noise at the same time.
Small size with powerful magazines and newly designed tape feeders to support large tape reels configuration flexibly, easy to install and replace tape reels conveniently, to ensure the most excellence solution among all of the entry level machines with lower budget but higher stability.
Comes with a high-definition capacitive touch screen, which can be adjusted up and down to meet the needs of different viewing angles and enhance the user experiences.
Specification
| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |
Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643x530x601mm | |
|
Flexible Feeder: 28 |
Packing Size: 700x580x585mm (wooden box) | ||
|
Bulk Feeder: 19 |
Details
Pre-sale services
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
Sale of services
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
Provide one-stop SMT assembly production line
Especially a good choice for customers who prefer in prototype project as a startup device. If you need, please feel free to coantact us.
FAQ
Q1: How can I place an order?
A: You can contact any of our sales person for an order.
Please provide the details of your requirements as clear as possible.
So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype, TradeManger or QQ or WhatsApp or other instant ways, in case of any delays.
Q2: Is there the products tested before shipping?
A: Yes, of course.
All of our conveyor belt we all will has been 100% QC before shipping.
We test every batch every day.
Q3: Can I request to change the form of packaging and transportation?
A: Yes, we can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
About us
factory
certification
Quick facts about NeoDen
① Established in 2010, 200+ employees, 8000+ Sq.m. factory
② NeoDen products: Smart series PNP machine, NeoDen K1830, NeoDen4, NeoDen3V, NeoDen7, NeoDen6, TM220A, TM240A, TM245P, reflow oven IN6, IN12, Solder paste printer FP2636,PM3040
③ Successful 10000+ customers across the globe
exhibition
If you need, please feel free to contact us for more information!
