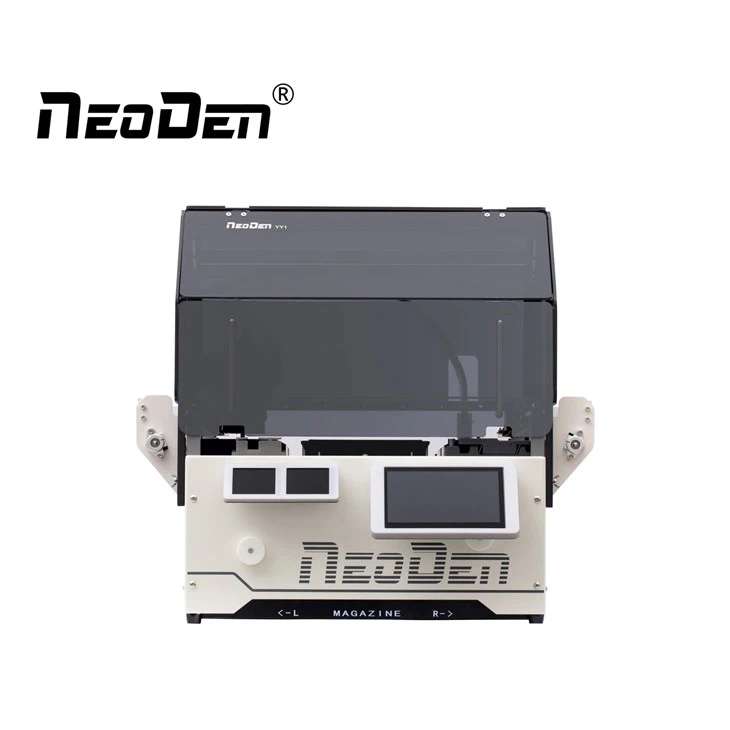

Portable Pick And Place Machine
■ Placement Rate up to 4000 CPH
■ Placement Accuracy ±0.02 mm
■ Feeder Capacity of 52 (all 8 mm) tape Feeders
The NeoDen YY1 is a high-performance, high-precision Desktop Automatic Pick and Place Machine.
Intelligent Vision: Integrates an independent high-definition high-speed dual vision recognition system and Vacuum Detection function. It supports a wide Component Range from 0201 (Smallest Size) up to 18x18mm (Largest Size).
Non-Stop Production: Features the standard Automatic Nozzle Change (ANC) device with 3 Nozzles capacity, enabling uninterrupted placement process.
Product Details ofPortable Pick And Place Machine

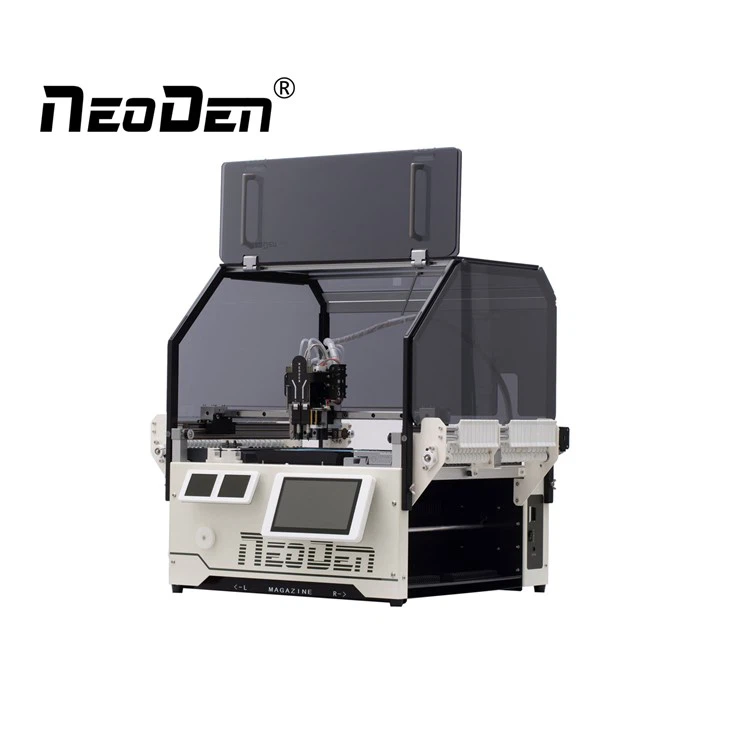

NeoDen YY1 portable pick and place machine
Feature
NeoDen YY1 are portable pick and place machine especially developed for research laboratories and small medium manufacturing enterprises however it will also be suitable for the serious hobbyist.
These automatic pick and place machines are suitable for small batch production, laboratory research and development, product sample trials, LED SMT processing and other similar processes.
Specification
| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |
Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm (wooden box) | ||
|
Bulk Feeder: 19 |
Details
Pre-sale services
Providing professional technical support.
Send the product catalog and instruction manual.
If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
Personal call or visit are warmly welcome.
Sale of services
We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
We guarantee punctuality, quality and quantities strictly implement the terms of contract.
Provide one-stop SMT assembly production line
Especially a good choice for customers who prefer in prototype project as a startup device. If you need, please feel free to coantact us.
FAQ
Q1. What's your tem of the delivery?
A. Our ordinary delivery term is FOB.
We also accept EXW, CFR, CIF, DDP, DDU etc.
We'll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
Q2. What is your main market?
A. All over the world.
Q3. Can I request to change the form of packaging and transportation?
A. Yes, we can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
About us
exhibition
certification
factory
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
In our global Ecosystem, we collaborate with our best partners to deliver a more closing sales service, high professional and efficient technical support.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist everywhere.
If you need, please feel free to contact us for more information!
