SMT Assembly Machine PCB Prototype
SMT assembly machine PCB prototype
Description

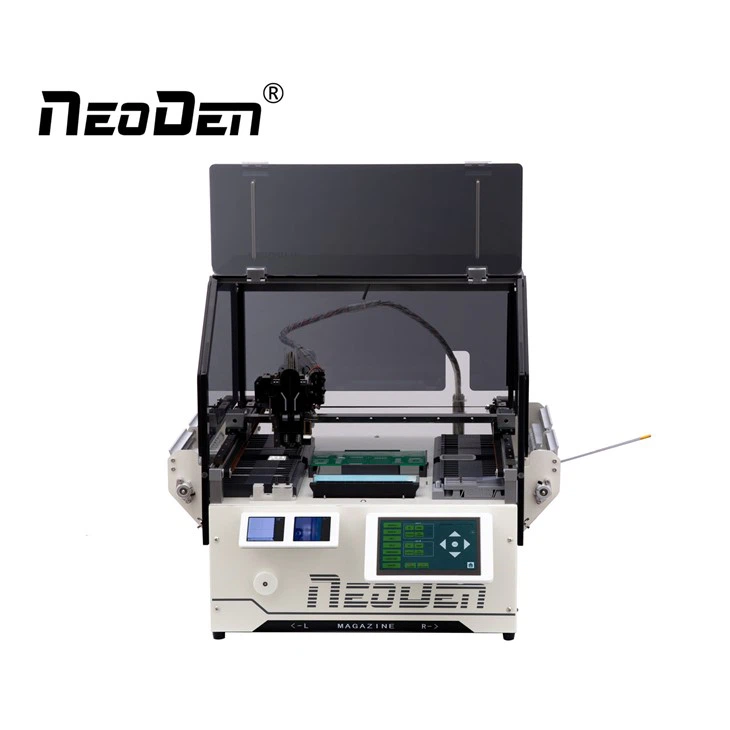

NeoDen YY1 Linear rail design for X, Y axis to ensure accuracy and stability,and reduce noise at the same time.
Comes with a high-definition capacitive touch screen, which can be adjusted up and down to meet the needs of different viewing angles and enhance the user experiences.
Fully transparent acrylic covers with magnetic mode for a high level of ease of disassembly.
Specification
| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |
Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm (wooden box) | ||
|
Bulk Feeder: 19 |
Warranty
The guarantee period is 2 years from the time of purchase and lifelong service support as well as a long-term factory price supply.
NeoDen will provide online Q/A and troubleshooting support and technical advice service.
Details
About Us
factory
Zhejiang Neoden Technology is a professional supplier with 10 years of experience and provides one-stop SMT solutions for customers, key products are pick&place machines, reflow oven, and solder printer. Currently, we have sold 10000+ sets of machines and exported to 130+ countries in the world, and have built a good reputation in the market.
certification
If you need, please feel free to contact us for more information.
