Standard Pick and Place Machine Prototype Low Cost
standard pick and place machine prototype low cost
Feature

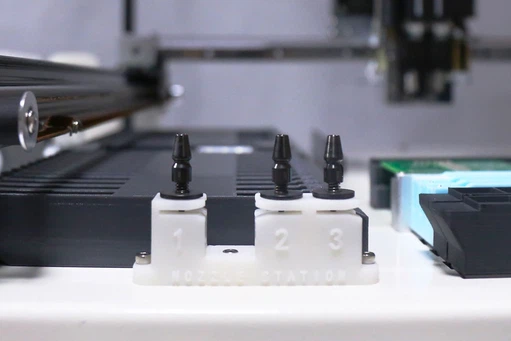

1. Automatic nozzle changer help realizing nozzles changed flexibly.
2. Newly designed software system & UI for visual programming and placement, which allows fast programming on the machine, friendly interface & easy operation.
3. Equipped with a vacuum detection function,can set standard vacuum detection values on placement head flexibly,all information can be displayed visually on the placement head.

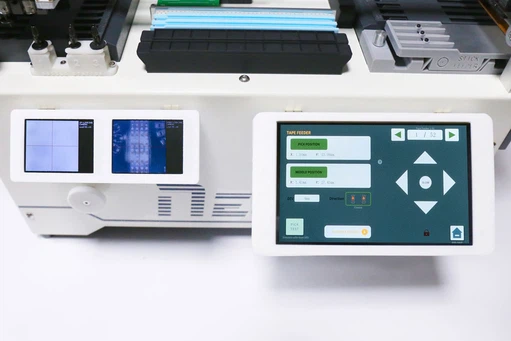

4. Comes with a high-definition capacitive touch screen, which can be adjusted up and down to meet the needs of different viewing angles and enhance the user experiences.
Specification
| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |
Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm (wooden box) | ||
|
Bulk Feeder: 19 |
Details
Paymen Details
We accept PayPal, wire transfer, west union and Visa.
Please contact us if you want to pay your order with a method other than these listed above.
About Us
factory
certification
exhibition
If you need, please feel free to contact us for more information.
