Small Automatic Pick and Place Machine with Vision System
NeoDen 3V has been discontinued. Looking for an upgrade?
Discover the NeoDen YY1, a more powerful and cost-effective alternative built to exceed your needs.
Description
NeoDen3V features dual head, 42 or 24 feeder slots, vision system, and flexible positioning system, which is suitable for prototyping, small-medium batch production with stable performance, and affordable price.
Please kindly note there are two versions of NeoDen3V, standard and advanced.
Features
1) Full Vision 2 Head System
2 high-precision placement heads with ±180°rotation could satisfy the need of wide range components.
2) Patented Automatic Peel-box
Patented electromagnetic actuators, you don't need to get rid of the wasted nylon film manually, which saves you more time and effort.
3) Flexible PCB positioning
By using PCB support bars and pins, wherever you want to put the PCB and whatever the shape of your PCB is, all can be handled well.
4) Integrated Controller
More stable performance and easier to do maintenance.

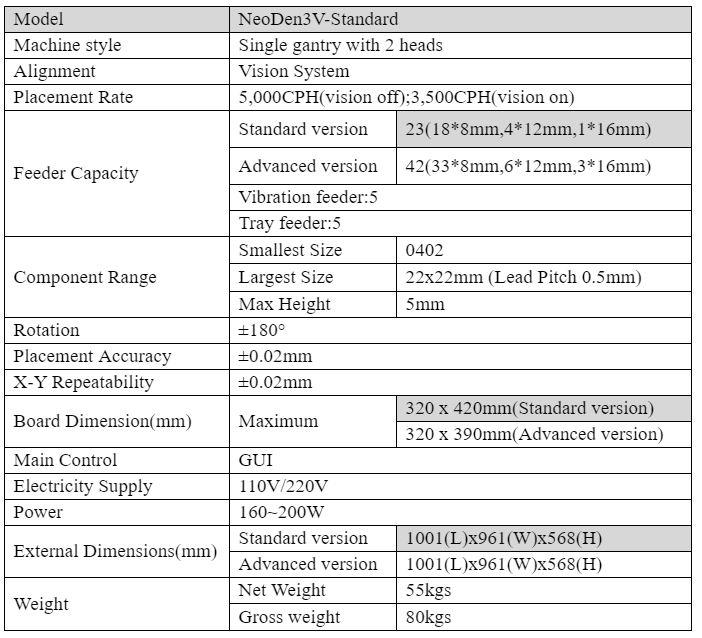

Specification
About Us
Factory
Zhejiang Neoden Technology is a professional supplier with 10 years of experience and provides one-stop SMT solutions for customers, key products are pick&place machines, reflow oven, and solder printer. Currently, we have sold 10000+ sets of machines and exported to 130+ countries in the world, and have built a good reputation in the market.
Certification
Exhibition
