New Product! Neoden K1830 The 8th Genaration Pick And Place Machine For SMT Mass Production
■ Placement Rate up to 16,000 CPH
■ Placement Accuracy 0.01 mm
■ Feeder Capacity of 66 Reel Tape Feeders (Electric / Pneumatic) and 10 IC Tray Feeders
The NeoDen K1830 is a high-performance High Speed Pick and Place Machine, equipped with a Closed loop Servo control system, engineered for efficient, stable, and high-volume SMT production.
Broad Compatibility: Supports a wide range of components, from the Smallest Component Size 0201 to various IC Packages (QFP, SSOP, QFN, BGA). The Max Component Height is 18mm.
Product Details ofNew Product! Neoden K1830 The 8th Genaration Pick And Place Machine For SMT Mass Production
Features of neoDen K1830 placement machine
- 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed.
- The machine runs on a highly stable and secure Linux operating system.
- Double mark cameras to reach at extreme end feeders for better calibration.
- High resolution and high-speed component camera system improves the overall speed of the machine.
- Ethernet communication interface for all internal signal travel makes the machine to perform more stable and flexible.
- Closed-loop servo control system with feedback makes the machine to function more accurate.
- Picking location of pneumatic feeder can be calibrated automatically and promptly, to ensure easy operation and high efficiency.
- PCB location can be calibrated automatically and promptly, based on the correct and specific placement request.
Specification
| Product name | NeoDen K1830 pick and place machine | Max Placement Speed | 16,000CPH |
| Nozzle Q'ty | 8pcs | Voltage | 220V/50HZ & 110V/60HZ |
| Reel Tape Feeder Q'ty (Max | 66 (Electric / Pneumatic) | PCB Transfer Direction | Left→Right |
| Max PCB size | 540*300mm (In Single Step) | Net Weight | 280Kgs |
| Placement accuracy | 0.01mm | Gross Weight | 360Kgs |
Details
High speed Nozzle
8 Synchronized Nozzles
Ensure a repeatable placement accuracy

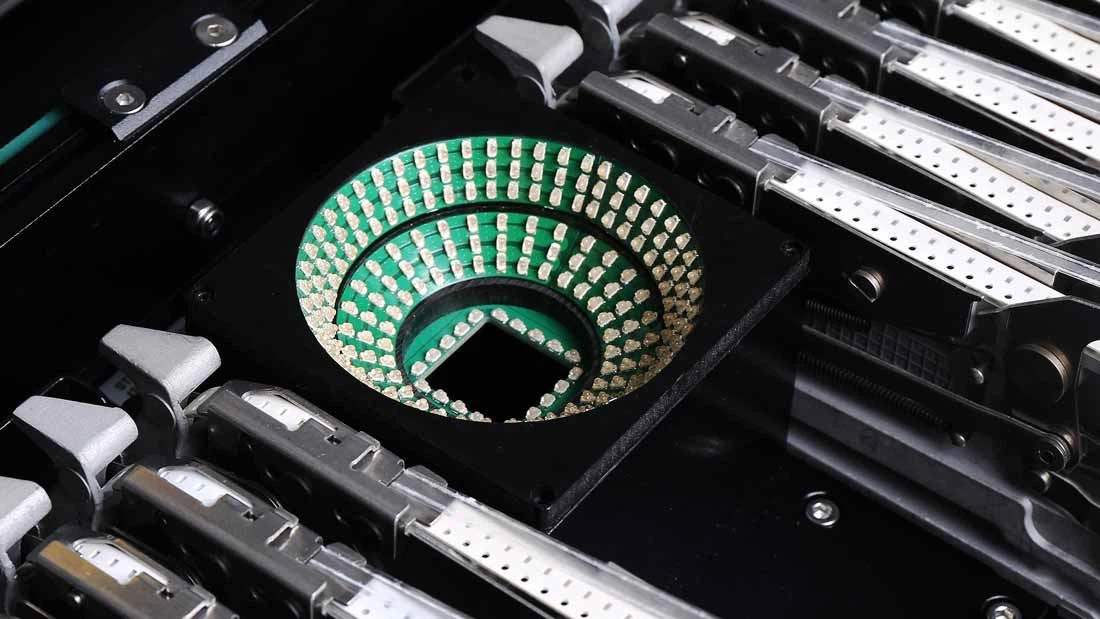

Vision system
Double mark cameras
Front and rear high definition flight camera

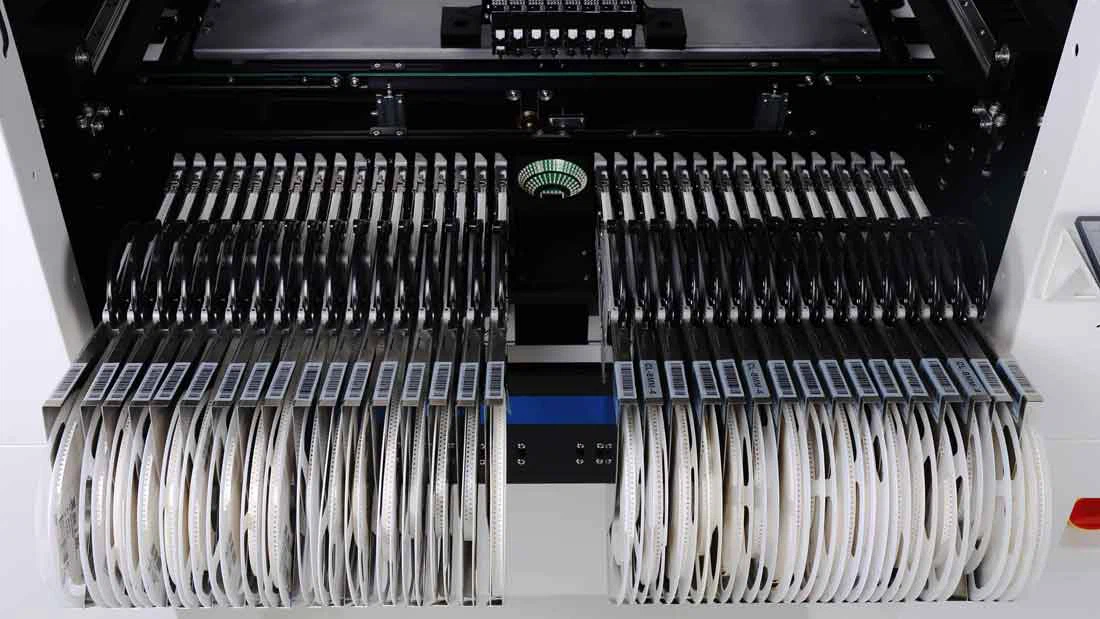

Pneumatic Feeder
66 Reel Tape Feeder
Easy operation and high efficiency

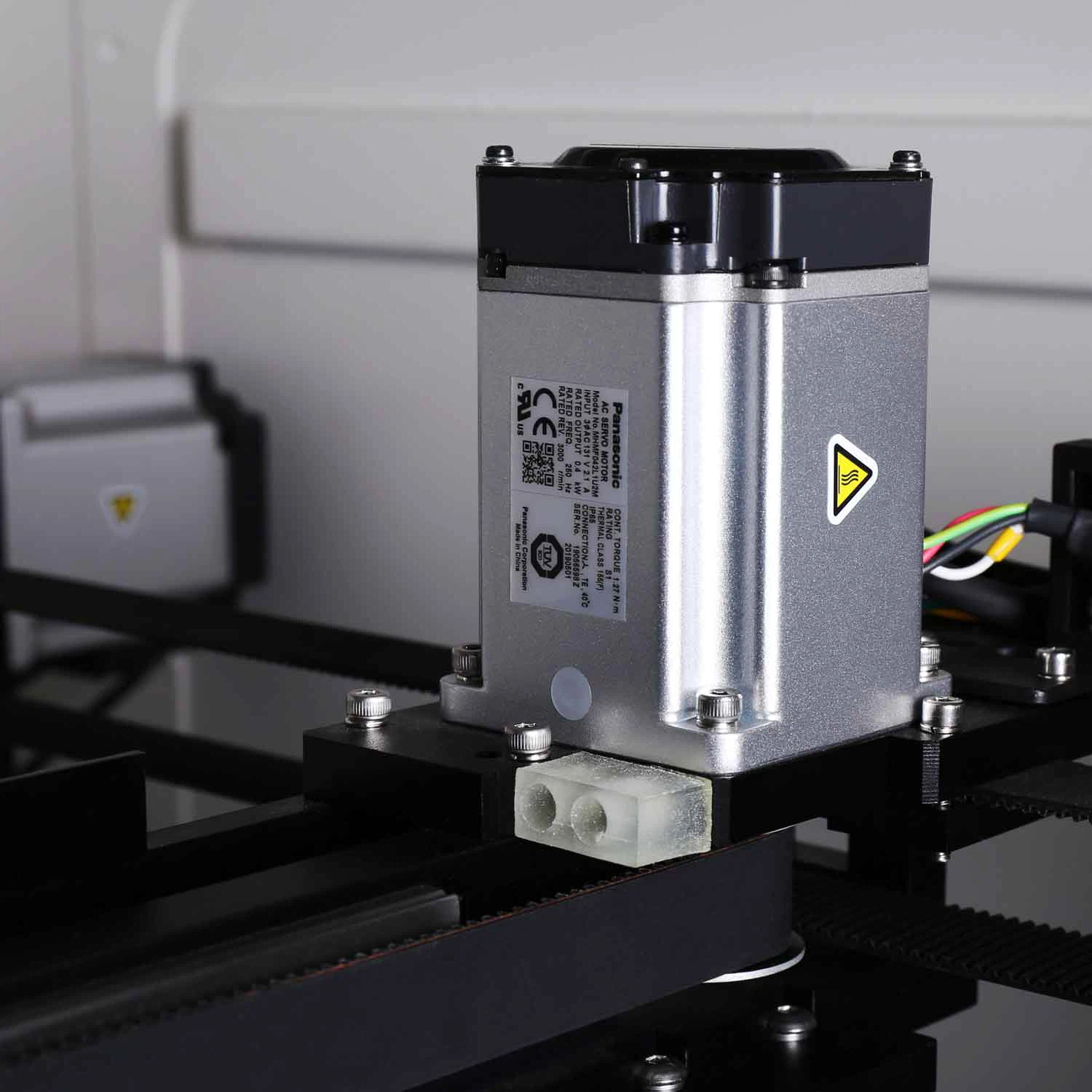

Drive Motor
Panasonic Servo Motor A6
Make the machine to function more accurate
Warning light
Triple color of light
Beautiful and elegant indicator design
Computer
Display size: 12 inch
Makes the machine more convenient to use
video
Our Service
1. More Professional service in PNP machine field.
2. Better manufacture ability.
3. Various payment term to choose: T/T, Western Union, L/C, Paypal.
4. High quality/Safe material/Competitive price.
5. Small order available..
6. Quickly response.
7. More safe and fast transport.
Provide one-stop SMT assembly production line
About NeoDen SMT
factory
Certification
exhibition
If you need, please feel free to inqure.
FAQ
Q1. How many nozzles do you supply?
A: 6nozzles for NeoDen3V and Neoden4. 10nozzles for NeoDen K1830.
Q2. Do you sell nozzles and spares?
A: Yes, the feeders nozzles and spare parts can be repurchased separately.
Q3. Does the machine need air supply?
A: NeoDen3V and NeoDen4 do not need air supply.
NeoDen K1830 need >0.6MPa oil free air supply.
Q4. What is the payment term?
A: We accept: T/T, VISA, PAYPAL, WEST UNION, BANK TRANSFER.
Q5. What is the shipping method?
A: We support shipping by sea/by air/by door to door express.
