Mini Pick And Place Machine
■ Placement Rate up to 4000 CPH
■ Placement Accuracy ±0.02 mm
■ Feeder Capacity of 52 (all 8 mm) tape Feeders

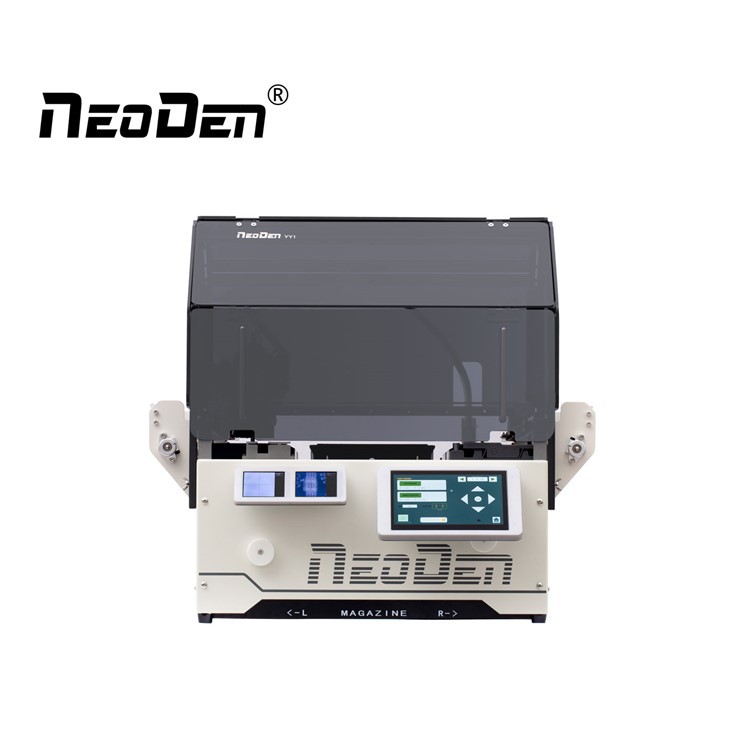

The NeoDen YY1 is a high-performance, high-precision Desktop Automatic Pick and Place Machine.
Intelligent Vision: Integrates an independent high-definition high-speed dual vision recognition system and Vacuum Detection function. It supports a wide Component Range from 0201 (Smallest Size) up to 18x18mm (Largest Size).
Non-Stop Production: Features the standard Automatic Nozzle Change (ANC) device with 3 Nozzles capacity, enabling uninterrupted placement process.
Send Inquiry
Product Details ofMini Pick And Place Machine
Features of NeoDen YY1 PNP machine
NeoDen YY1 automatic nozzle changer help realizing nozzles changed flexibly.
The newly-designed stick feeder with its compact shape, is perfectly compatible with the tape feeder system.
Fully transparent acrylic covers with magnetic mode for a high level of ease of disassembly.
Why it's called YY1?
This machine would be as easy as a yo-yo that everyone could master it easily.
Specification
| Product name | NeoDen YY1 mini pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style | Single Gantry With 2 Heads | Feeder Capacity | Tape Feeder: 52 (all 8mm) |
| Placement Rate | Vision On: 3000CPH | Stick Feeder: 4 | |
| Vision Off: 4000CPH | Flexible Feeder: 28 | ||
| Component Range | Smallest Size: 0201 | Bulk Feeder: 19 | |
| Largest Size: 18*18mm | External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
| Max Height: 12mm | Packing Size: 700(L)x580(W)x585(H) mm (wooden box) | ||
| Rotation | ±180° |
Details
Powerful Magazines
Small size with powerful magazines and newly designed tape feeders to support large tape reels configur ation flexibly,
easy to install and replace tape reels conveniently.
User friendly touch screen
It comes with a high-definition capacitive touch screen,
which can be adjusted up and down to meet the needs of different viewing angles and enhance the user experiences.
Brand new patented peeling gadget
It's simple but functional, it's easy to install and flexible to remove.
It doesn't need to collect wasted film.
Compared with the peelers of 3V, it solve the issue of unstability and offset issue.
Dual vision system with built-in IC
Independent high-definition & high-speed dual vision recognition systems, as well as two cameras for real-time display the working status, the speed of processing components' photos becomes more efficient and accurate.
Vacuum detection and real-time display

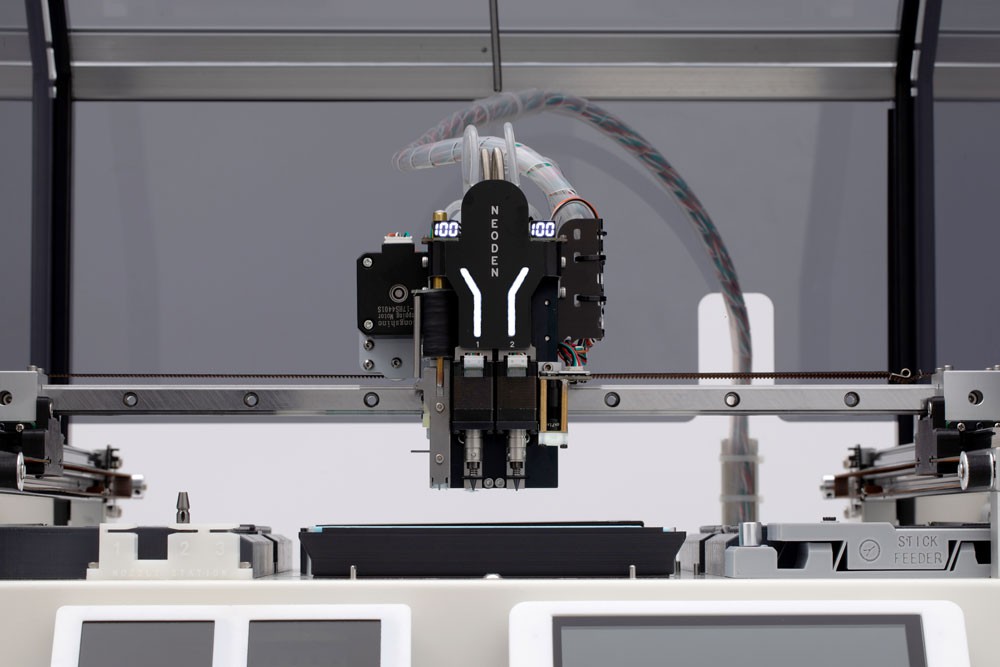

Equipped with a vacuum detection function, can set standard vacuum detection values on placement head flexibly, all information can be displayed visually on the placement head.
Auto nozzle changer
It has 3 slots for nozzles replacement, which realizes maximum optimum of nozzles and achieve higher continuity of production.
Payments & Shipments
1. All prices are quoted by EXW
2. Lead time: 3-7 working days
3. Packing material: non fumigation wooden case
4. Payment term: 100% T/T in advance before shipping
5. Shipping ways: DHL/TNT or customer appoint
Provide one-stop SMT assembly production line
About us
factory
Zhejiang NeoDen Technology Co., LTD., founded in 2010, is a professional manufacturer specialized in SMT pick and place machine, reflow oven, stencil printing machine, SMT production line and other SMT Products. In this decade, we independently developed NeoDen4, NeoDen IN6, NeoDen K1830, NeoDen FP2636 and other SMT products, which sold well all over the world. So far, we have sold more than 10,000pcs machines and exported them to over 130 countries around the world, establishing a good reputation in the market.
Quick facts about NeoDen
① Established in 2010, 200+ employees, 8000+ Sq.m. factory.
② NeoDen products: Smart series PNP machine, NeoDen K1830, NeoDen4, NeoDen3V, NeoDen7, NeoDen6, TM220A, TM240A, TM245P, reflow oven IN6, IN12, Solder paste printer FP2636, PM3040.
③ Successful 10000+ customers across the globe.
certification
exhibition
If you need, please free to contact us for more information.
FAQ
Q1. This is the first time I use this kind of machine, is it easy to operate?
A: We have English user manual and guide video to teach you how to use the machine.
If still have question, pls contact us by email / skype / whatapp / phone / trademanager online service.
Q2: What is your terms of delivery?
A: We accept EXW, FOB, CFR, CIF, etc.
You can choose the one which is the most convenient or cost effective for you.
Q3: How many square meters of your factory?
A: More than 27,000 square meter.
