Low Cost SMT Pick and Place Machine NeoDen YY1
low cost SMT pick and place machine neoDen yY1
Feature
Low cost SMT pick and place machine NeoDenYY1 is fully transparent acrylic covers with magnetic mode for a high level of ease of disassembly.
Small size with powerful magazines and newly designed tape feeders to support large tape reels configuration flexibly, easy to install and replace tape reels conveniently, to ensure the most excellence solution among all of the entry level machines with lower budget but higher stability.
Patent-protected & new needle module is specially designed based on the linear rail with high reliability and durability.
Independent high-definition & high-speed dual vision recognition systems, as well as dual cameras for real-time display the working status.
Specification
| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |
Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm(wooden box) | ||
|
Bulk Feeder: 19 |
Deatils
About machine
Easy to Operate

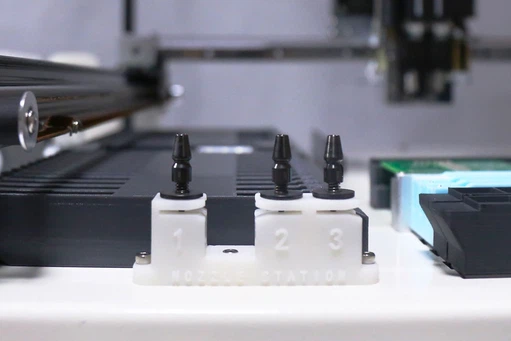

Automatic nozzle changer help realizing nozzles changed flexibly.

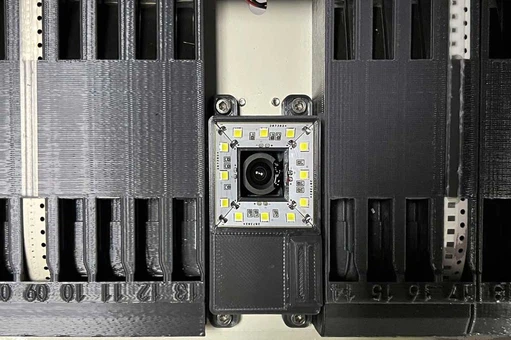

Independent high-definition & high-speed dual vision recognition systems,as well as dual cameras for real-time display the working status.
Efficient After Sales Service
NeoDen has after-sales team, act as the strong power back supporters to help users in maintenance and technical support.
We shall help to provide a solution within 8 hours if any questions arise.
The after-sales team works both workday and holidays.
Worldwide Sales Network
NeoDen has more than 15 distributors over the world, for example, India, Netherlands, Russia, USA, Japan, South Korea, Turkey, Brazil, Colombia, Vietnam, Iran, Australia, Chile, Argentina and Taiwan.
All the distributors could provide more professional pre-sales, training and technical support to local customers.

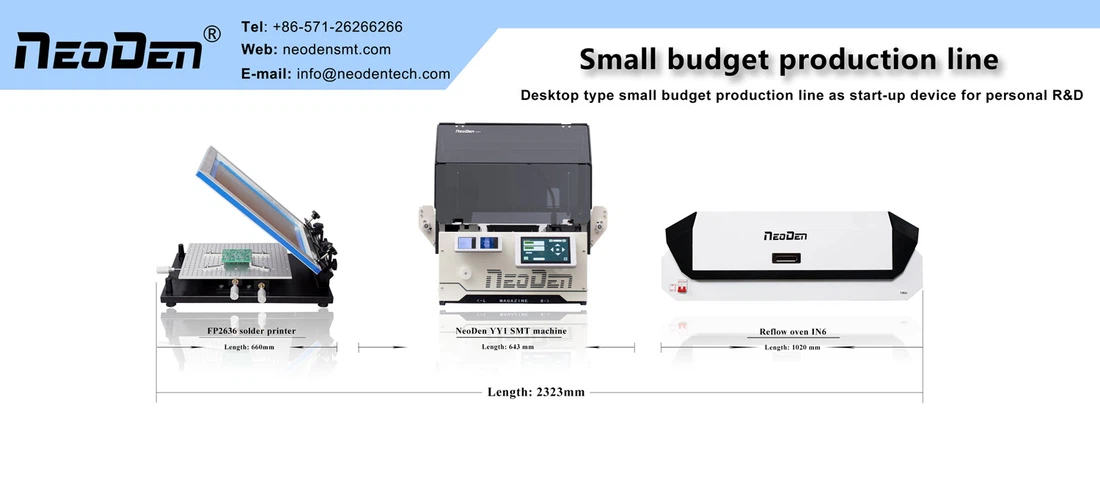

Provide one-stop SMT assembly production line
About us
factory
Quick facts about NeoDen
Established in 2010, 200+ employees, 8000+ Sq.m. factory.
NeoDen products: Smart series PNP machine, NeoDen K1830, NeoDen4, NeoDen3V, NeoDen7, NeoDen6, TM220A, TM240A, TM245P, reflow oven IN6, IN12, Solder paste printer FP2636, PM3040.
Successful 10000+ customers across the globe.
30+ Global Agents covered in Asia, Europe, America, Oceania and Africa.
R&D Center: 3 R&D departments with 25+ professional R&D engineers.
Listed with CE and got 50+ patents.
30+ quality control and technical support engineers, 15+ senior international sales, timely customer responding within 8 hours, professional solutions providing within 24 hours.
certification
exhibition
If you need, please feel free to contact us for more information!
