High Speed LED Strip Placement Machine
Description
NeoDen K1830 is a High-Speed LED Strip Placement Machine, which features 8 pick-up heads, it has been designed for ease of use, high-efficiency, cost-effectiveness, and increasing expandability and compatibility. Using new, highly efficient linear servo motors, lightening and stiffening the head unit, and reviewing the placement speed of 16,000 CPH. It is a great choice for PCB LED SMT SMD assembly work.
Features

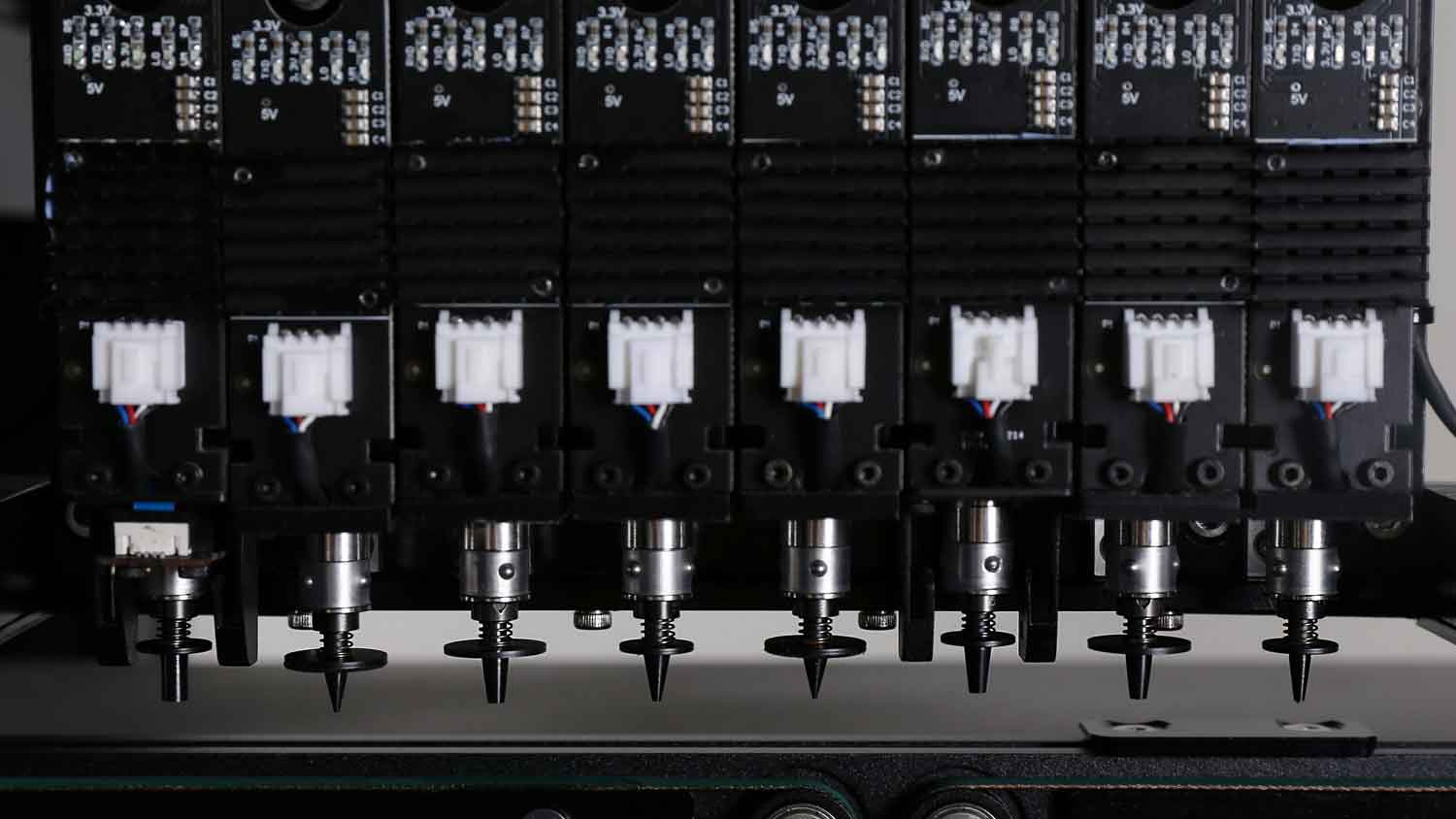

1. 8 working heads.
2. The machine runs on a Linux operating system.
3. Double mark cameras to reach at extreme end feeders for better calibration.
4. High resolution and speed component camera system.
5. Ethernet communication interface for all internal signal travel.
6. Closed-loop servo control system with feedback.
7. Picking location of pneumatic feeder can be calibrated automatically and promptly.
8. PCB location can be calibrated automatically and promptly.
Specification
| Product name | High-Speed LED Strip Placement Machine |
| Nozzle Q'ty | 8pcs |
Reel Tape Feeder Q'ty (Max | 66 (Electric / Pneumatic) |
Max PCB size | 540*300mm (In Single Step) |
| Placement accuracy | 0.01mm |
Max Placement Speed | 16,000CPH |
Voltage | 220V/50HZ & 110V/60HZ |
| PCB Transfer Direction | Left→Right |
Net Weight | 280Kgs |
| Gross Weight | 360Kgs |
Details
