Desktop Pick and Place Machine
NeoDen 3V has been discontinued. Looking for an upgrade?
Discover the NeoDen YY1, a more powerful and cost-effective alternative built to exceed your needs.
Desktop Pick and Place Machine NeoDen 3V video
Desktop Pick and Place Machine NeoDen 3V
Specification
|
Produt name |
Desktop pick and place machine NeoDen 3V (Advanced) |
|
Number of heads |
2 |
|
Alignment |
Vision |
|
Rotation |
±180° |
|
Placement Rate |
5000CPH (without vision); 3500CPH (with vision) |
|
Feeder Capacity |
Tape feeder: 44 (all 8mm) |
|
Vibration feeder: 0~5 |
|
|
Tray feeder: 5~10 (Customization supported) |
|
|
Board Dimension |
Maximum: 320*390mm |
|
Component Range |
Smallest components: 0402 |
|
Largest components: TQFP144 |
|
|
Max height: 5mm |
|
|
Numbers Of Pumps |
3 |
|
Placement Accuracy |
±0.02mm |
|
Operate System |
Windows XP-NOVA |
|
Power |
160~200W |
|
Electricity Supply |
110V/220V |
|
Machine Size |
820(L)*680(W)*410(H)mm |
|
Packing Size |
1001(L)*790(W)*568(H)mm |
| N.W./G.W. |
60Kg/85Kg |
Details

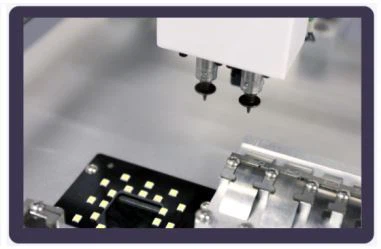

Full vision 2 heads system
2 high-precision placement heads with ±180°
rotation could satisfy the need of wide range components.
Patented Automatic Peel-box
Patented electromagnetic actuators, you don't need to get rid of
the wasted nylon film manually, which saves you more time and effort.
Flexible PCB positioning
By using PCB support bars and pins, wherever you want
to put the PCB and whatever the shape of your PCB is,
all can be handled well.
Integrated Controller
More stable performance and easier to do maintenance.
Prepare Work
1. Make sure the power cable no damage, no shedding and no loose.
2. Keep hands off the working area.
Maintenance
1. Repair and calibration should be operated by skilled mechanical technician. When replacing parts, please use the part which are supplied by NeoDen.
We are not responsible for any accident result from using nonstandard part.
2. In order to prevent electric shock caused by unskilled operation, the electrical repairs, maintenance(including wiring), should be operated by professional electrician or the technical staff from NeoDen or our distributors.
3. Make sure Bolts - Nuts are tighten after repair, calibration or replacing any part.
Working Environment
1. Do not use machine in a noisy environment, such as high frequency welding machine.
2. Do not use machine if the power supply voltage exceed the rated voltage ± 10%.
Do not use machine and pull the plug when thunder to avoid any accident caused by damaged electrical component.
Provide one-stop SMT assembly production line
Especially a good choice for customers who prefer in prototype project as a startup device. If you need, please feel free to coantact us.
