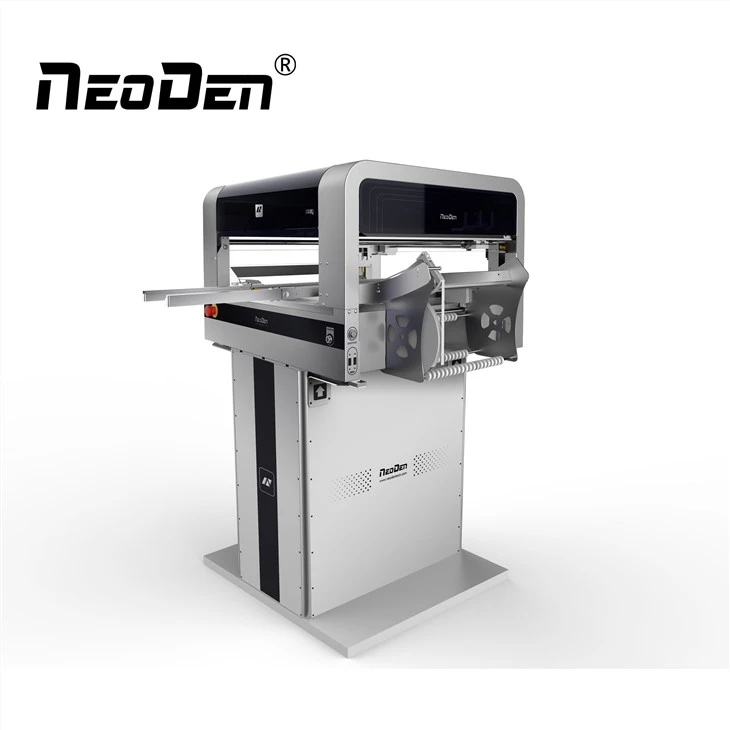

Automatic LED Pick and Place Machine
Introduction
NeoDen4 is an automatic LED pick and place machine of components flexibility, PCB flexibility and production flexibility.
It is equipped with dual CCD cameras, auto rails, auto electronic feeders and 4 placement heads, which could support mount 0201, BGA, QFN.
Spotlights
1. Vision system
2. Four precision heads
3. Auto Electronic Feeders
4. General conveyor is supported
5. Supports remote system upgrade
6. Industrial PC motherboard
Parameter
Machine style | Single gantry with 4 heads |
Alignment | Stage Vision |
Placement Rate | With Vision: 4000 |
| Feeder capacity | Tape Peel Feeders: 48 (all 8mm) |
| Component sizes with vision | Smallest Component size: 0201 |
| Component Max Height | 5MM |
| Resolution | X/Y axis: 0.01MM Z axis: 0.1MM |
| Rotation | +/-180°(360°) |
| Positioning Accuracy | +/-0.02MM |
| X-Y repeatability | +/-0.02MM |
| Placement Area | 290x1500mm with internal rails |
| Power Supply | 110V/220V |
About Us
Neoden is a reliable manufacturer with 10 years' experience. Until now, we have exported to more than 130 countries and 10000+ sets of machines all over the world, and have built a good reputation in the market. We are in a good position not only supply you high-quality machines, but also excellent after-sale service. The well-trained engineer will provide any technical support to you.
Our key products are pick&place machine, reflow oven and solder printer, which could assemble an SMT line for PCB/LED production. Please feel free to contact us if you have any interests.
NeoDen4 support overlong LED board placement, it can be connected with smt conveyor. This model also supports bad board detection while the customer's board is panelized PCB.
Neoden4 has been supplied to many different overseas areas, we have an English interface, user manual, and professional after-sales engineers.
FAQ
Q1: How about the training?
A: We offer English user manual and online tutoring videos for operation. Face to face training is also available if your engineer come to our factory. Our technical support team is always standby for any problems from customers.
NeoDen provides free online Q/A and troubleshooting support and technical advice service.
Q2: How about the maintenance?
A: a. Temperature and humidity: temperature range 20℃～26℃, humidity range 45～70％.
b. Follow our correct instruction in the user manual to operate the machine.
Q3: Do your machines have quality certificate?
A: Yes, we have CE certificates and our own technical patents.
Q4: Can we customize the machine?
A: Yes, the machine can be customized. Please communicate with us for more details.
Q5: This is the first time I use this kind of machine, is it easy to operate?
A: NeoDen’s SMT machines are all very easy to operate. We also have a professional oversea technical support team to service you.
