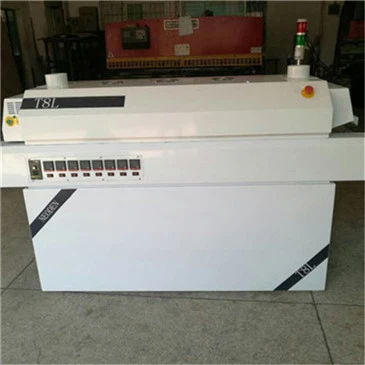

T8L Reflow Oven Hot Air SMD Soldering Machine
T8L Reflow Oven Hot Air SMD Soldering Machine - non-removable structure Reflow oven - worked with hot wind to welding PCB, support most normal components,LEDs and Chips.
Features
1. Crawler-type structure matched with eight heating zones can make inside temperature more accurate, support almost all kinds of PCBs, have more heating/cooling time to ensure more good soldering performance.
2. Using AC motor to drive the conveyor belt, chain type transmission way. Speed adjustment is controlled by automatic electronic analog switch, which sensitivity no more than 1 degree, control accuracy ±10mm/min.
3. Power supply support both single Phase(220V)and Three phases(380V).
4. Cooling fan:Mainly to cool the welded PCB, or cool the heat parts inside machine to guarantee their good work.
5. Signal lights :Monitor the work condition of the machine, that is, signal lights indicate the temperature of the machine in normal and abnormal working state.
6. Emergency Stop Button-Support Abnormal Shutdown during breakdown situation.

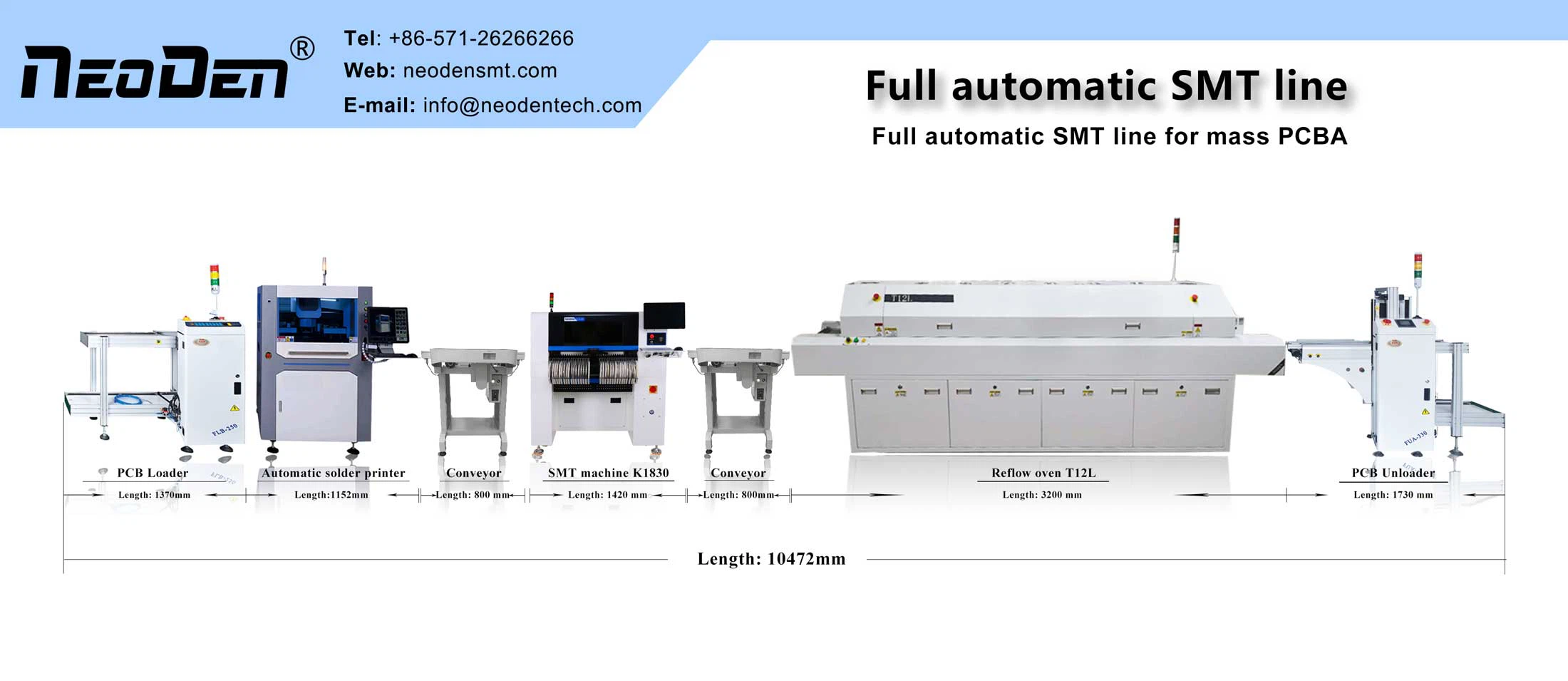

7. Easily to build a Complete Automatic SMT Production Line by adjusting the height of the Working Table.
Parameter
| Products | T8L Reflow Oven Hot Air SMD Soldering Machine | Conveyor Width | 300 (mm) |
Length*Width*Height | 2100*700*1280 (mm) | Standard Max Height | 20 (mm) |
Peak Power | 12 (KW) | Customized Max height | 55 (mm) |
Working Power | 5 (KW) | Max Speed of Conveyor | 1200 (mm) |
Input Voltage | 220/380 (V) | Packing Size | 220*80*128 CM |
| Gross Weight | 300 KG |
