Surface Mount Pick and Place Machine with 16000CPH Speed
surface mount pick and place machine with 16000CPH speed
Description

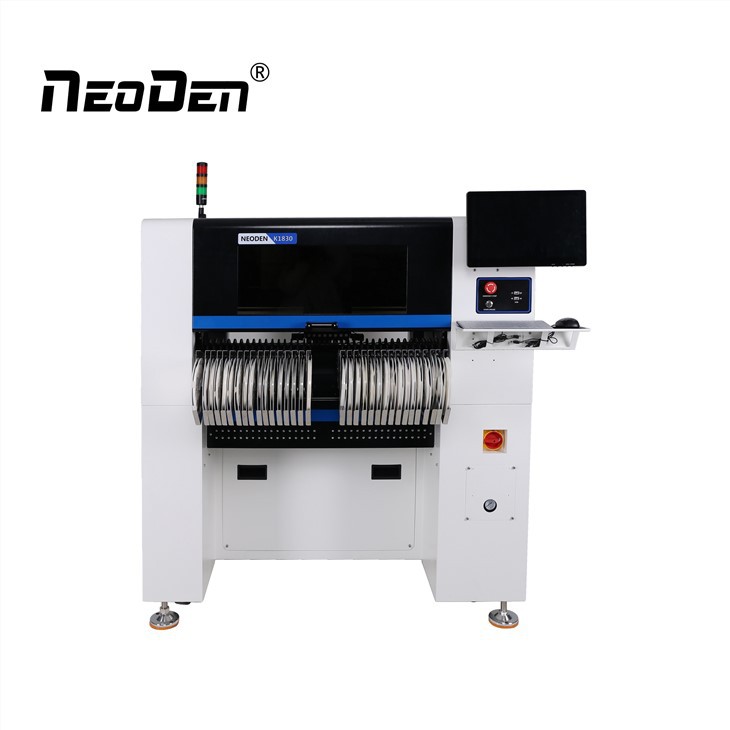

Surface mount pick and place machine with 16000CPH speed NeoDen K1830 is the latest model.
It features 8 working heads, 66 feeder slots/stacks, max speed 16000 CPH, which is a great choice for mass production work.
youtube video
Features
1. 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed.
2. The machine runs on a highly stable and secure Linux operating system.
3. Double mark cameras to reach at extreme end feeders for better calibration.
4. High resolution and high-speed component camera system improves the overall speed of the machine.
5. Ethernet communication interface for all internal signal travel makes the machine to perform more stable and flexible.
6. Closed-loop servo control system with feedback makes the machine to function more accurate.
7. Picking location of pneumatic feeder can be calibrated automatically and promptly, to ensure easy operation and high efficiency.
8. PCB location can be calibrated automatically and promptly, based on the correct and specific placement request.
Specification
| Model | NeoDen K1830 | Nozzle head QTY | 8 |
| Reel tape feeder qty max. | 66(Electric/Pneumatic) | Tray feeder qty | 10 (In Succession) |
| PCB size max. | 540*300mm (under single phase) | Component available size | 0201 (electric feeder), 0402-1210 |
| IC available | QFP, SSOP, QFN, BGA | Placement accuracy | 0.01mm |
| Component available height max. | 18mm | Air supply | >0.6MPa |
| Power | 500W | Voltage | 220/ 50HZ & 110V/60HZ |
| Speed max. | 16,000cph | Component recognition | High Resolution Flying Vision Camera System |
| PCB Fiducial Recognition | High Precision Mark Camera | PCB Loading | Synchronized 3 Stages Internal Conveyor |
| PCB transfer direction | Left→right | Machine Dimensions | 1288×1062×1291mm |
| Packing Dimensions | 1420×1220×1665mm |
About Us
factory
certification
exhibition
FAQ
Q1: How do I find a suitable machine?
A: Please contact with our oversea sales to describe your products and output demands, they will recommend you a suitable pnp machine.
Q2: How do I contact the seller?
A: Please send us an inquiry through website and leave your email.
We will contact you within 24 hours.
Q3: How can i buy machine from you?
A: (1) Consult us on line or by e-mail.
(2) Negotiate and confirm the final price, shipping, payment method and other terms.
(3) Send you the proforma invoice and confirm your order.
(4) Make the payment according to the method put on proforma invoice.
(5) We prepare your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
(6) Send your order via express or by air or by sea.
Q4: How many nozzles do you supply?
A: 6 nozzles for NeoDen3V and Neoden4. 10 nozzles for NeoDen K1830.
Q5: Do you sell nozzles and spares?
A: Yes, the feeders nozzles and spare parts can be repurchased separately.
