High Precision Automatic Stencil Printer
This stencil printer has been discontinued. Looking for an upgrade?
Discover the NeoDen ND2 - a more powerful and superior alternative that's the ideal choice for your needs.
Automatic Solder Paste Printer for SMT Assembly Line
Min PCB Size :50 ( L ) * 50 (W) mm
Max PCB Size :400 ( L ) * 300 ( W) mm
PCB Printing Thickness: 0.2 ~ 6 ( T ) mm
Printing Cycle Time:＜ 10 s ( Exclude Printing and Cleaning )
Product Changeover:＜ 5 Min
Squeegee Type :Steel Scarper ( Standard Equipped ) / Rubber scraper and other types of scraper can customize
Squeegee Pressure :0 ~ 10 Kg ( Adjustable and Programmable )
Squeegee Angle :55°( Standard)
Squeegee Speed: 6 ~ 300 mm / sec
Min Size of The Screen Stencil :420 ( L ) * 500 ( W) mm
Max Size of The Screen Stencil 737 ( L) * 737 ( W ) mm
Thickness of The Screen Stencil:25 ~ 40 (Ｔ) mm
Transport Height: 900+/-40mm
Repeat position accuracy: +/-0.009mm
Printing accuracy: +/-0.023mm
Air supply requirement: 4.5-6kg/cm2
Power supply: 220+/-10%, 50/ 60Hz, 1-3KW
Machine size: 1146*1364*1440mm
Machine weight: 1000kgs

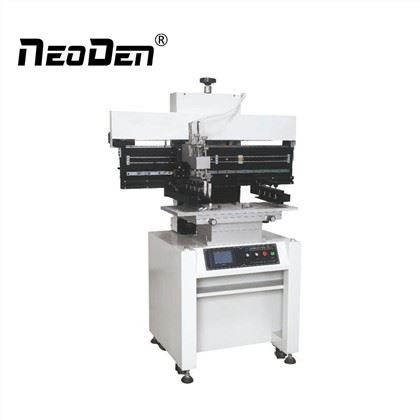

If you need Semi-auto type solder paste printer, which is lower cost but support most PCB solder pasting, you can take ref. of this YS350: https://www.neodensmt.com/stencil-printer/smt-pcb-printer-semi-auto-solder-printer.html
NeoDen provides a full SMT assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment SMT spare parts, etc any kind SMT machines you may need, please contact us for more information.
