PCB Solder Paste Printing Machine
Description
FP2636
is our newly developed and released printer, there are 2 versions: FP2636-WF.
FP2636-NF, the NF version is the Frameless printer, just need to use a metal sheet (without frame), unlike the traditional ones which have a big frame.
Applicable to DIY user or prototyping.
Specification
Product name | NeoDen FP2636 Frameless Solder Paste Printer | PCB Thickness | 0-20mm |
Max PCB Size | 280×380mm | Platform Height | 190mm |
Min PCB Size | 10×5mm | Repeatability | ±0.01mm |
Screen Stencil Size | 260×360mm | Max Rotation Angle | ±15° |
Printing Speed | Labor control | Positioning Mode | Outside/Reference Hole |
| Dimensions | 660*470*245mm | N.W./G.W. | 12Kg/14Kg |
Details
Rulers of stencil fixed frame
Rulers of stencil fixed frame for reference lines

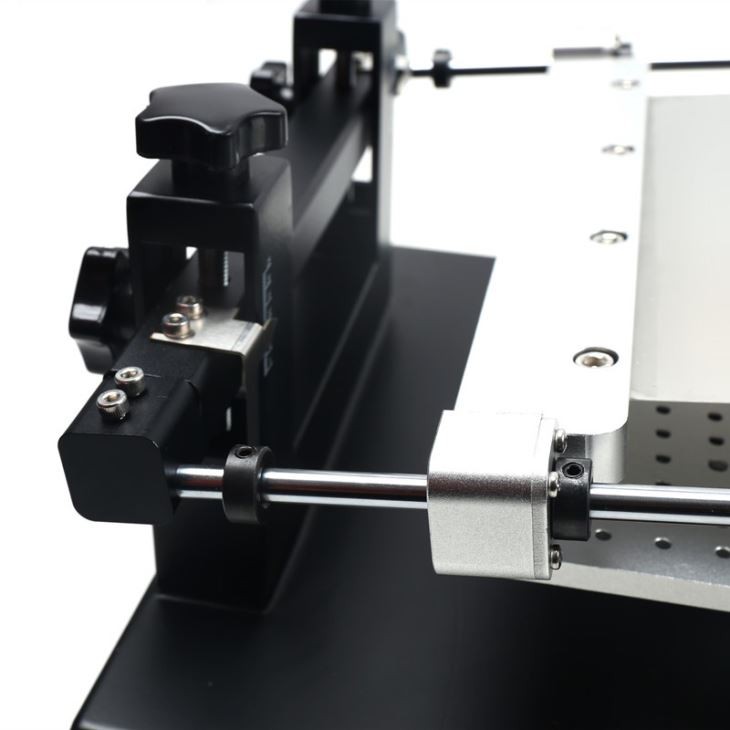

Adjustment handle
1. T screw rod regulating handle
2. Minimum lead pitch achieved 1mm
3. Letter mark for each regulating handle
Convenience operating
1. Straight damping shaft

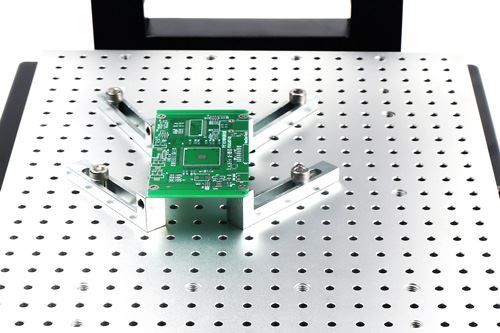

2. L supports and pins to fix PCB
Features
1. T screw rod regulating handle, ensure adjustment accuracy and levelness of PCB fixed plane, minimum lead pitch achieved 1mm.
2. Adjustable rubber footing, ensure the flatness while operating.
3. Letter mark for each regulating handle, better and easier to operate.
4. Rulers of stencil fixed frame for reference lines, ensure the levelness between stencil and PCB.
5. Straight damping shaft, ensure the stencil fixed frame can be fastened at random angles, to improve convenience while operating.
6. Support for single-sided as well as double-sided PCB.
About Us
Zhejiang NeoDen Technology is a professional supplier with 10 years experience and provides one-stop SMT solutions for customers, key products are pick&place machine, reflow oven and solder printer. Currently, we have sold 10000+ sets of machines and exported to 130+ countries in the world, and have built a good reputation in the market.
Our key products are pick&place machine, reflow oven and solder printer, which could assemble an SMT line for PCB/LED production. Please feel free to contact us if you have any interests.
Packing
Non-fumigation Wooden case or Carton
Delivery
DHL/FEDEX/UPS/EMS/by sea/by air or customer appointed
Payment
100% T/T before shipment
