Solder Printing
Features
1. PC control, touch screen display and menu operation interface.
2. The pressure of the scraper is adjustable. The pressure of the scraper on the steel grid is adjustable according to the length of the scraper.
3. The PCB can be localized and fastened by base hole, base side, both base hole and base side, and template localization.
4. Time can be displayed on the touch screen and the count of the printing time can be recorded.
5. The scraper speed at left and right is adjustable and can be stopped in emergency.
Specification
| Product name | Solder Printing | PCB thickness | 0.2-2.0mm |
| PCB size mix | 400*240mm | Air source | 4-6kg/cm2 |
| Printing area | 500*320mm | Power supply | AC220V 50HZ |
| Frame size | L(550-650)*W(370-470) | Dimension | L 800*W 700*H 1700 (mm) |
| Printing/repeating accuracy | +/-0.2mm | Packing size | 1050*900*1850(mm) |
| N.W./G.W. | 230/280 Kg |
Details

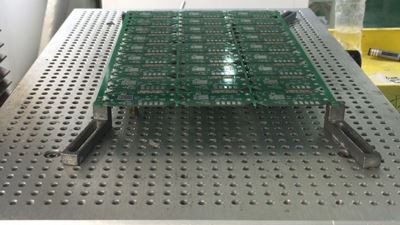

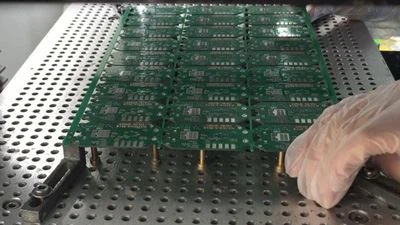

Adjust and fix PCB

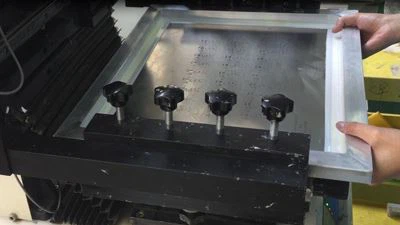

Adjust stencil position

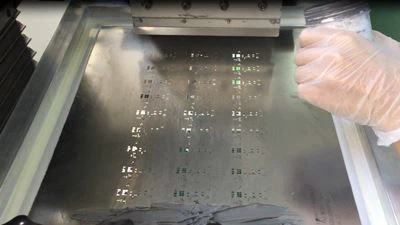

Solder paste put on the stencil

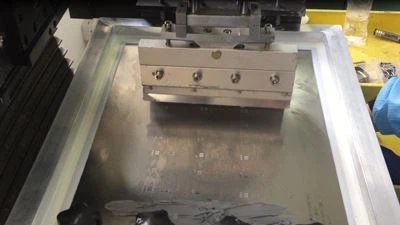

Start pasting work
Checking the solder pasting situation
Quality control
We have QC person stay on the production lines do to the inspection.
All products must have been inspected before delivery.
We do inline inspection and final inspection.
1. All raw material checked once it arrive our factory.
2. All pieces and logo and all details checked during production.

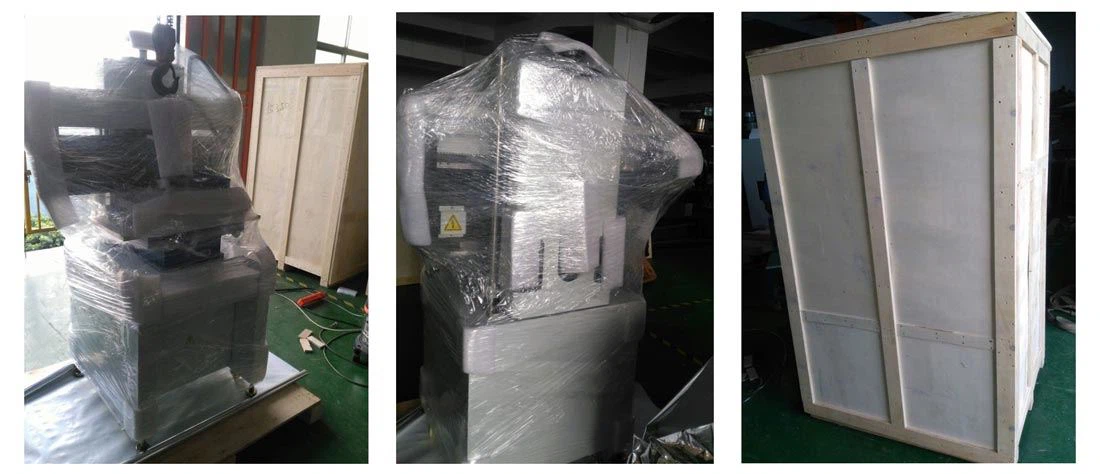

3. All packing details checked during production.
4. All production quality and packing checked on final inspection after finished.
Q1: What is your main market?
A: All over the world.
Q2: How many square meters of your factory?
A: More than 8,000 square meter.
Q3: How many workers in your factory?
A: More than 200 workers.
