SMT Production Line for Protoype
NeoDen 3V has been discontinued. Looking for an upgrade?
Discover the NeoDen YY1, a more powerful and cost-effective alternative built to exceed your needs.
Feeder configuration
NeoDen3V--Advanced: 33x8mm, 6x12mm, 3x16mm; IC feeder; Vibration feeder
NeoDen3V--Standard: 18x8mm, 4x12mm, 1x16mm; IC feeder; Vibration feeder.
It features a dual head, 42 or 24 feeder slots, vision system and flexible positioning system, which is suitable for prototyping, small-medium batch production with stable performance and affordable price.
Specification parameter
Specifications
|
Model |
SMT Production Line For Protoype |
|
Machine style |
Single gantry with 2 heads |
|
Alignment |
Stage Vision |
|
Placement Rate |
Vision on: 3,500CPH |
|
Vision off |
Vision off: 5,000CPH |
|
Feeder Capacity |
Tape feeder: 46 (all 8mm) |
|
Vibration feeder: 5 |
|
|
Tray feeder: 10 |
|
|
Component Range |
Smallest Size: 0402 (01005 inch) |
|
Largest Size: TQFP100 (Lead Pitch 0.5mm) |
|
|
Max Height |
5mm |
|
Rotation |
±180° |
|
Placement Accuracy |
±0.02mm |
|
Board Dimension(mm) |
Maximum: 320 x 390mm |
|
Operation System |
WindowsXP-NOVA |
|
Electricity Supply |
110V/220V |
|
Power |
160~200W |
|
External Dimensions(mm) |
Machine size: 820(L)x680(W)x410(H) |
|
Net Weight |
60kgs |
|
Numbers of Pumps |
3 |

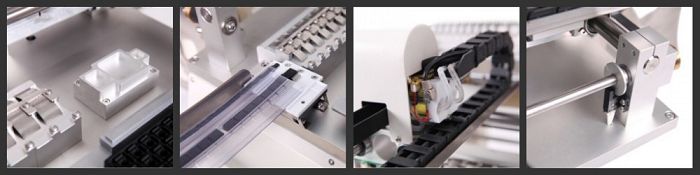

Detail
Packing: Non-fumigation Wooden case
Delivery: DHL/FEDEX/UPS/EMS/by sea/by air or customer appointed.
Payment: 100% T/T before shipment.
About Us
Factory
Zhejiang NeoDen Technology Co., LTD., founded in 2010, is a professional manufacturer specialized in SMT pick and place machine, reflow oven, stencil printing machine, SMT production line and other SMT Products. We have our own R & D team and own factory, taking advantage of our own rich experienced R&D, well trained production, won great reputation from the world wide customers.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist on everywhere.
Certification
Exhibition
Provide one-stop SMT assembly production line
