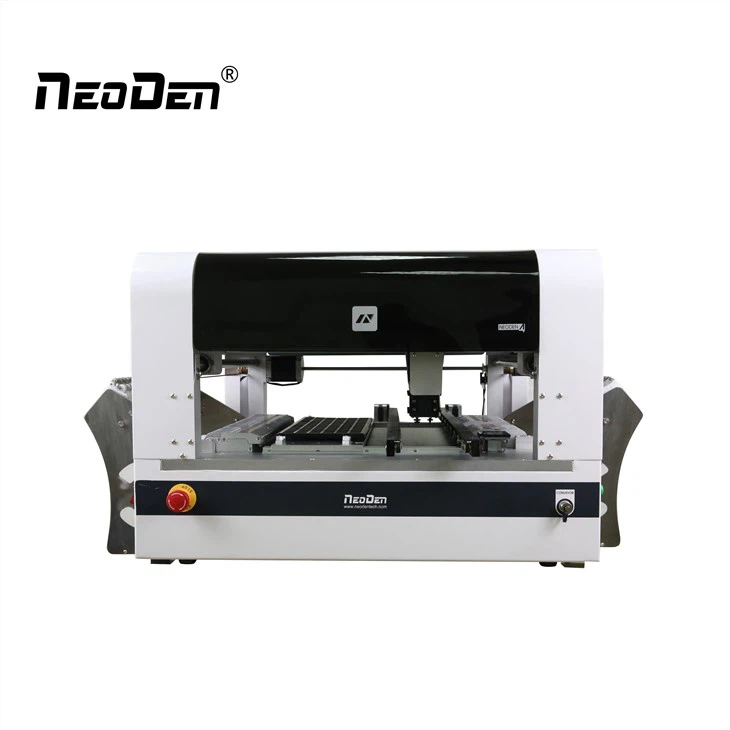

Automatic Desktop SMT Pick and Place Machine
desktop automatic pick and place machines
Application industry
Household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc..
Check out video on YouTube
Specification
| Product name | Automatic Desktop SMT Pick and Place Machine | Component Range | Smallest Size: 0201 |

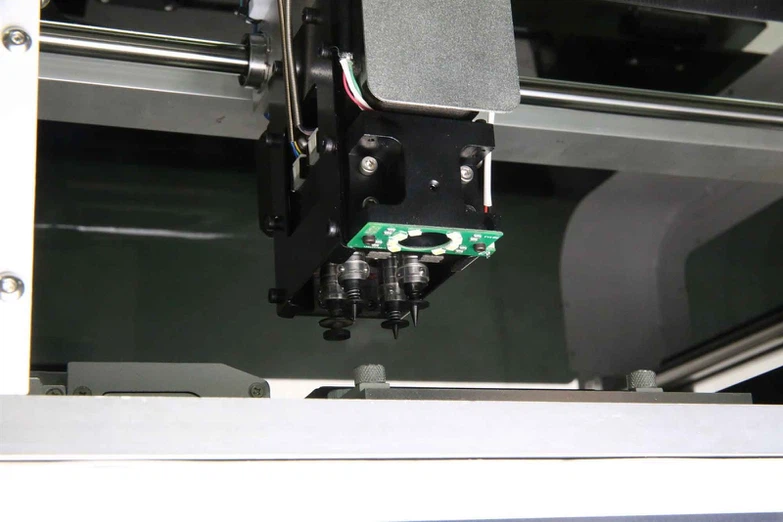

| Machine Style | Single Gantry with 4 Heads | Biggest Size: TQFP240 | |
| Placement Rate | 4,000CPH | Max Height: 5mm | |
| External Dimension | L 680*W 870*H 460mm | Feeders | 48pcs |
| Max applicable PCB | 290mm*1200mm | Average working power | 220V/160W |
Spotlights

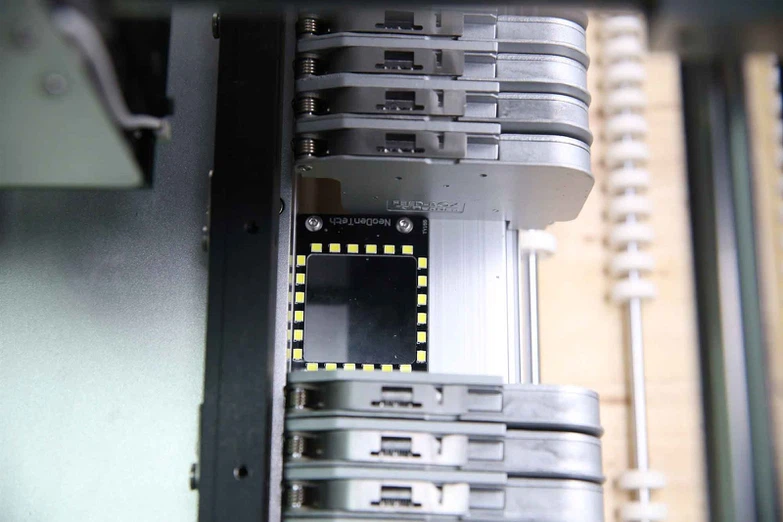

1. Vision system
An up-looking+down-looking camera identifies and calibrates the different components simultaneously, and tremendously improves the accuracy of placement from 0201 to BGA

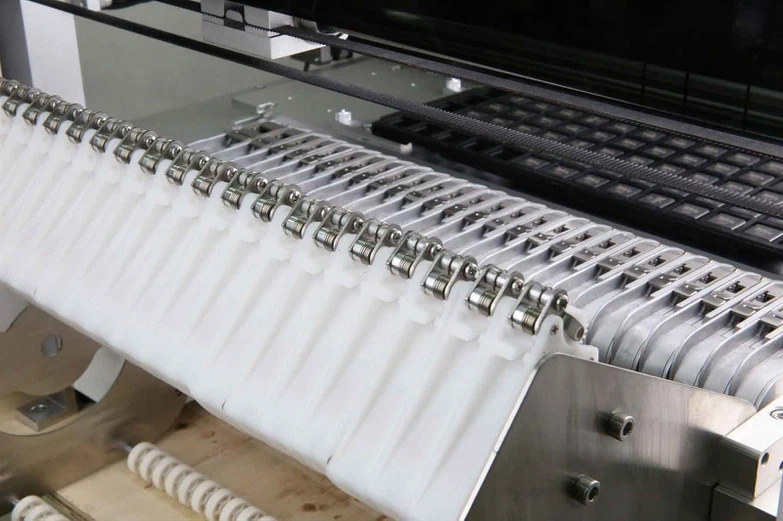

2. Auto Electronic Feeders
Adopts feeding error corrections technique to help smooth the picking and reduce the deviation

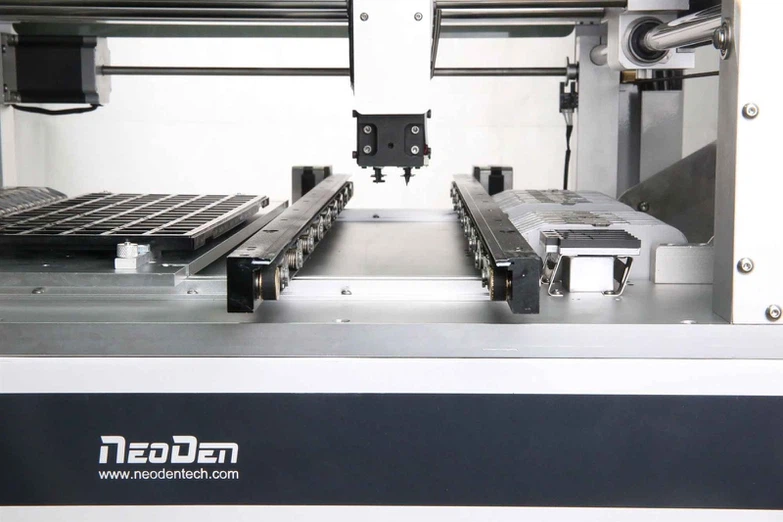

3. Auto Rails Achieve Continuous Placement
1.5m&1.2m auto rails could be connected with universal conveyors to achieve continuous placement
4. Supports remote system upgrade
NeoDen will provide a life-long technical service and system upgrade
