6 Heads SMT Pick and Place Machine with Panasonic Driven System

NeoDen7 SMT Pick And Place Machine features 6 simultaneous pick-up heads, has been designed for ease of use, efficiency, cost effectiveness and increased expandability and compatibility. Using new, highly efficient linear servomotors, lightening and stiffening the head unit, and reviewing the placement speed of 14,000 CPH. Suitable for PCB prototyping machine, small-medium batch production machine.
Send Inquiry
Product Details of 6 Heads SMT Pick and Place Machine with Panasonic Driven System

Product Introduction

6 Heads High Speed SMT Pick and Place Machine



Introduction SMT pick and place machine

NeoDen7 PCB Prototyping Machine features 6 simultaneous pick-up heads, has been designed for ease of use, efficiency, cost effectiveness and increased expandability and compatibility.

Using new, highly efficient linear servomotors, lightening and stiffening the head unit, and reviewing the placement speed of 14,000 CPH.

Suitable for PCB prototyping machine, small-medium batch production machine.


Specifications SMT pick and place machine

smd pick and place machine


Features SMT pick and place machine

1. Integrated flying vision system.

2. Panasonic Servo driven.

3. 6 Simultaneous pick-up head.

4. Placement rates up to 14,000 cph.

5. Accurately place, manager, and track components with Smart Pneumatic Feeders.

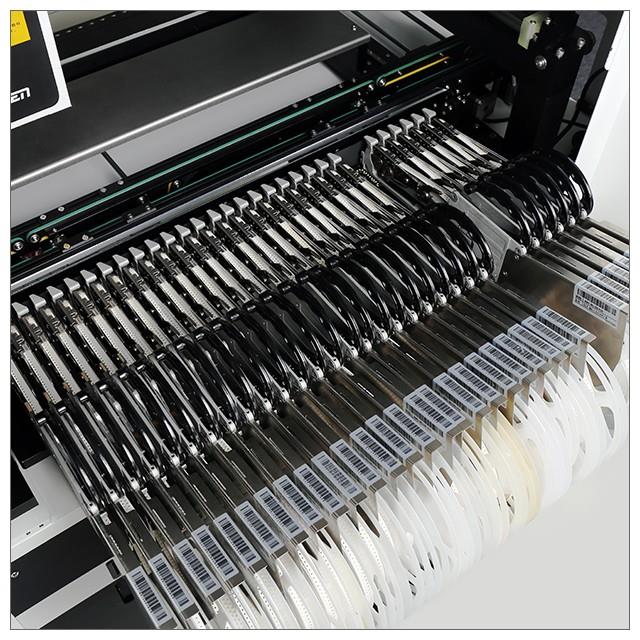

6. Up to 64pcs (all in 8mm)tape feeders.

7. Accurately places a wide range of components including 0402, LED, BGA,0.4mm pitch QFP,SMT Connectors and many others.

8. Support cut tape, loose, tube, or tray feeders.



SMD pick and place machineSMD pick and place machineSMD pick and place machineSMD pick and place machine



If you need a small line, we also have a lot option for you.

N9+IN12


Our key products are pick&place machine, reflow oven and solder printer, which could assemble an SMT line for PCB/LED production. We are in a good position not only supply you high-quality machines, but also excellent after-sale service.


Our various smt line are good choice for:

A: Fast&accurate prototype

B: Small to Medium SMT Production

C: Mass SMT Production


About Us

Factory

factory

Certification

Certi1

Exhibition

exhibition

Why is my PCB Assembly Quote so Expensive?

SMT assembly line offers economical PCB assembly quote to its consumers. PCB production line manufacturer take all necessary steps and follow up to date processes to deliver quality product at reasonable prices. You can effortlessly contact us and get the details about circuit board assembly quote from our executives. Their team analyses all aspects and considers a number of elements while devising a quote.

The elements affecting the circuit board assembly quote are BOM lines, number of PCBs, double-sided SMT assembly, a number of THT, leadless, fine pitch, BGA components, lead-free assembly, turnaround time, etc. It is desirable to carefully select the options while assembling such as unused components should be avoided which can reduce the assembly time. Soldering process should be selected as per the requirement of a project. Also, they suggests to use cheap cross reference parts with requisite quality to reduce the BOM and assembly cost. Furthermore, customers should select lead-less and fine pitch parts only if it is extremely necessary in the project, as they require a special assembly process which increases the price.

The PCB assembly quote can turn expensive, if customer opt for double-sided assembly. The reason is that it requires duplication of the whole process of placing the components on either of the sides of the circuit board. It also needs added SMT machine programming, solder stencil making, etc. which leads to the escalation in the PCB assembly cost. The price may increase with the selection of lead free assembly option. However, PCB production company proceed with lead-free assembly only on your specific instructions. Lead-free processing needs the use of modern soldering system and highly experienced engineers which lead to rise in the cost.

The PCB assembly quote can be costly due to fine pitch and leadless components. This is because SMT assembly company require a unique assembly process and inspection techniques. Before proceeding to place a final order, it is always suggested to understand the exact impact of fine pitch and leadless parts on the final quote.


The quicker the turnaround time is desired the more will be the PCB assembly quote. All the elements are considered and final quote is delivered with expected turnaround time and cost.
