SMT Pick and Place Machine Price
■ Placement Rate up to 16,000 CPH
■ Placement Accuracy 0.01 mm
■ Feeder Capacity of 66 Reel Tape Feeders (Electric / Pneumatic) and 10 IC Tray Feeders
The NeoDen K1830 is a high-performance High Speed Pick and Place Machine, equipped with a Closed loop Servo control system, engineered for efficient, stable, and high-volume SMT production..
Broad Compatibility: Supports a wide range of components, from the Smallest Component Size 0201 to various IC Packages (QFP, SSOP, QFN, BGA). The Max Component Height is 18mm.
Send Inquiry
Product Details ofSMT Pick and Place Machine Price
NeoDen K1830 SMT pick and place machine price video
NeoDen K1830 SMT Pick and Place Machine Price
Specification
| Product name | NeoDen K1830 SMT pick and place machine price | Max Placement Speed | 16,000CPH |
| Nozzle Q'ty | 8pcs | Voltage | 220V/50HZ & 110V/60HZ |
| Reel Tape Feeder Q'ty (Max | 66 (Electric / Pneumatic) | PCB Transfer Direction | Left→Right |
| Max PCB size | 540*300mm (In Single Step) | Net Weight | 280Kgs |
| Placement accuracy | 0.01mm | Gross Weight | 360Kgs |
Detail
8 High Speed Nozzles
1- 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed.
2- Machine runs on highly stable and secure Linux operating system.
Vision system
1- Double mark cameras to reach at extreme end feeders for better calibration.
2- High resolution and high speed component camera system improves the overall speed of the machine.

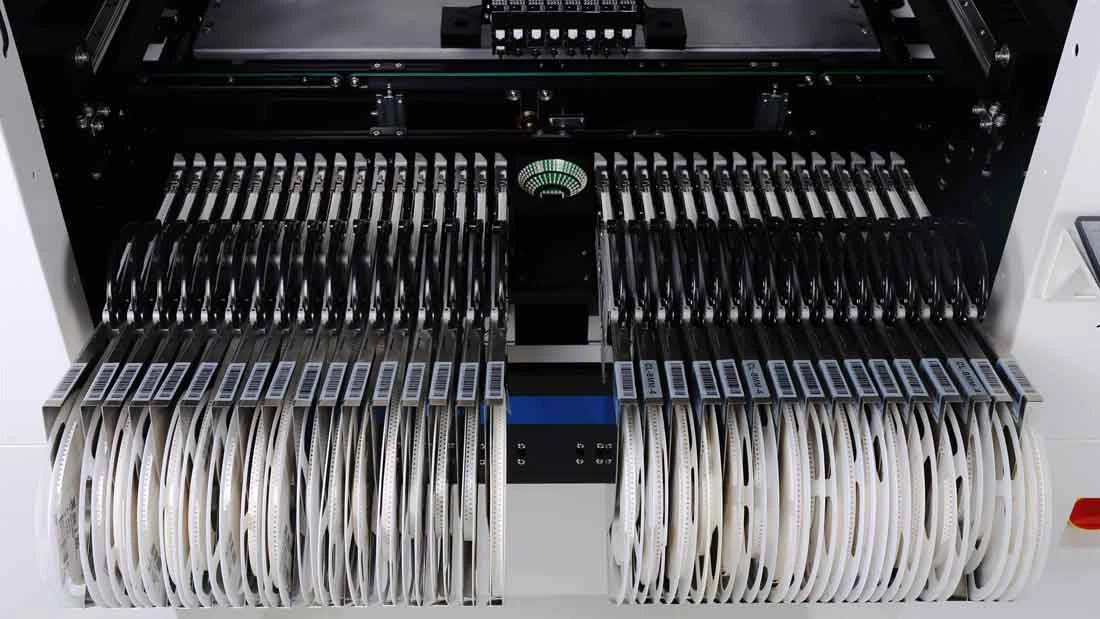

Feeders
1- Closed loop Servo control system with feedback makes the machine to function more accurate.
2- Picking location of pneumatic feeder can be calibrated automatically and promptly, to ensure easy operation and high efficiency.
Inspection items
1. Check if the specification, direction, polarity of components is aligned with what they should be.
2. Whether the components are damaged or the pins are distorted.
3. Whether the component is off beyond allowance.
4. The inspection methods vary from the equipment that you have.
5. Except visual inspection, all of amplifier, microscope, online or offline AOI equipment can be applied if the pitch of IC is quite small to check.
If you need, please feel free to contact us.
Provide one-stop SMT assembly production line
FAQ
Q1: This is the first time I use this kind of machine, is it easy to operate?
A: We have English user manual and guide video to teach you how to use the machine.
If still have question, pls contact us by email / skype / whatapp / phone / trademanager online service.
Q2: How about the warranty?
A: We support one year warranty.
We will help you in time.
All the spare parts will be provided free of charge for you within the warranty period.
Q3: Can we customize the machine?
A: Of course. All of our machines can be customized.
About us
factory
certification
exhibition
If you need, please don't be hesitate to send your inquiry.
