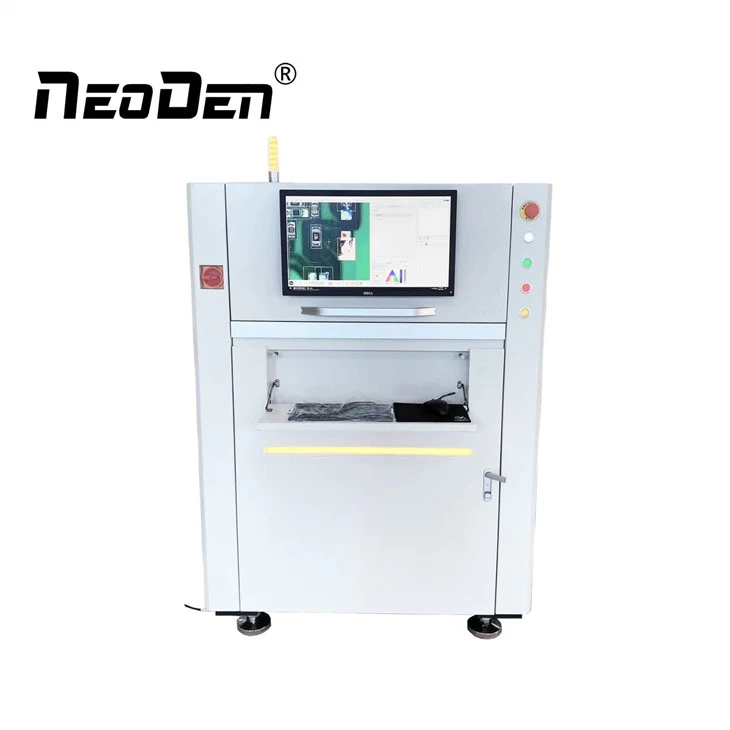

SMT AOI machine

Machine characteristics

1. HD color global exposure digital camera speed increase 30%.

2. High depth of field telecentric lens, which can measure the solder joints on the side of high components.

3. Support the detection of smt front, back and dip station.

4. Support 0201 and 01005 packaged component inspection.

5. CAD data import, automatic linking component library, automatic color picking.

6. True non-stop offline programming and program update.

7. MES data docking to realize intelligent factory.

8. Support multi-line centralized management and remote service.

Detail

Product name	SMT AOI machine	Max. Top Gap	35mm
PCB Thickness	0.6mm~6mm	Moving speed	1500mm/Sec(Max)
Max. PCB Size (X x Y)	510mm x 460mm	Transmission height from the ground	900±30mm
Min. PCB Size (Y x X)	50mm x 50mm	Transmission Method	One Stage Lane
Max. Bottom Gap	50mm	PCB clamping method	Edge locking substrate clamping
Weight	750Kg/850Kg

Our Service

We are in a good position not only to supply you high quality pnp machine, but also the excellent after sales service.

Well-trained engineers will offer you any technical support.

10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours, professional solutions can be offered within 24 hours both workday and holidays.

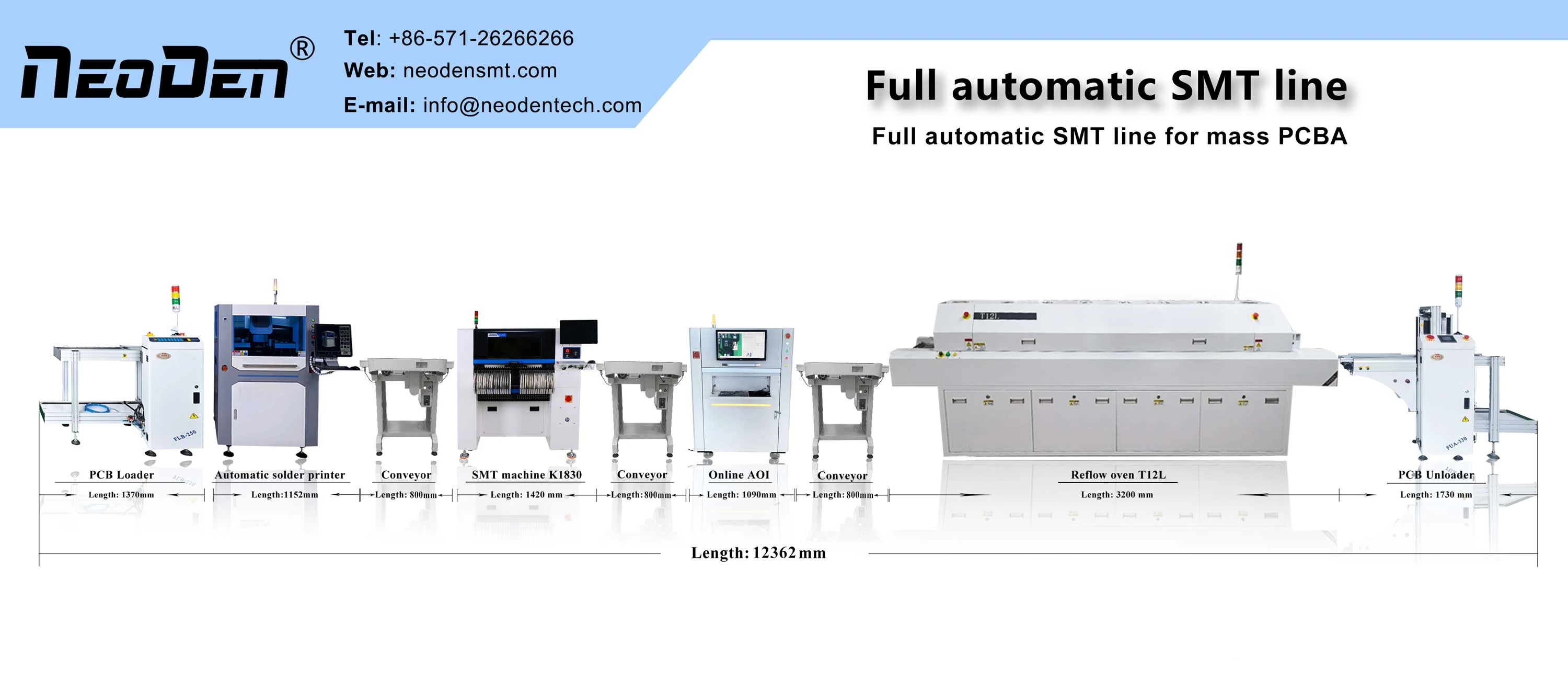

Provide one-stop SMT assembly production line

SMT production line
