SMT Line Machine
NeoDen K1830 SMT line machine video

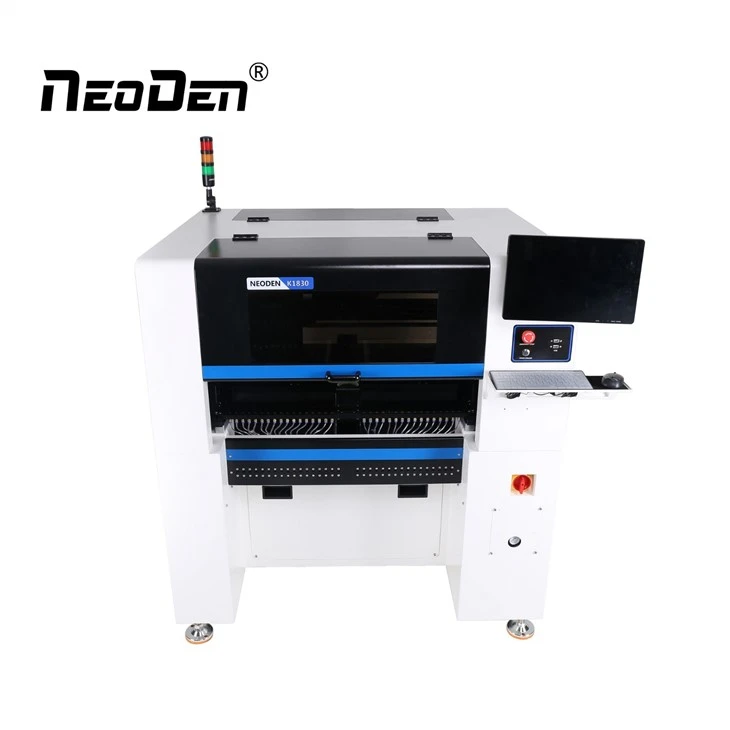

NeoDen K1830 SMT line machine
Feature
1. Closed loop Servo control system with feedback makes the machine to function more accurate.
2. Picking location of pneumatic feeder can be calibrated automatically and promptly, to ensure easy operation and high efficiency.
Detail
| Product name | NeoDen K1830 SMT line machine | Nozzle Q'ty | 8pcs |
| Reel Tape Feeder Q'ty (Max | 66 (Electric / Pneumatic) | Max PCB size | 540*300mm(In Single Step) |
| Placement accuracy | 0.01mm | Max Placement Speed | 16,000CPH |
| Voltage | 220V/50HZ & 110V/60HZ | PCB Transfer Direction | Left→Right |
| Net Weight | 280Kgs | Gross Weight | 360Kgs |
PCB Eject setting
After click "Eject" no matter under Mag fixture or Rail mode, the thimble will go down in "track section 2", "track section 3" begin to work and PCB will feed to back conveyor
PCB Forward Position Setting
Need set the PCB forward position before click "forward"
Step: Click "Align"and enter the "align"interface, set the forward position according to the photo took by mark camera, and select "align method-nozzle 1", then click "save"to save the forward position information.
Our Service
We are in a good position not only to supply you high quality pnp machine, but also the excellent after sales service.
Well-trained engineers will offer you any technical support.
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours,
Professional solutions can be offered within 24 hours both workday and holidays.
Provide one-stop SMT assembly production line
FAQ
Q1: How can I buy machine from you?
A: (1) Consult us on line or by e-mail.
(2) Negotiate and confirm the final price, shipping, payment method and other terms.
(3) Send you the perfroma invoice and confirm your order.
(4) Make the payment according to the method put on proforma nvoice.
(5) We prepare your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
(6) Send your order via express or by air or by sea.
Q2:This is the first time I use this kind of machine, is it easy to operate?
A: Yes. There are English manual and guide video that show you how to use machine.
If there is any doubt in the process of operating the machine, please feel free contact us.
We also provide overseas on-site service.
Q3: Can we customize the machine?
A: Of course.
All of our machines can be customized.
