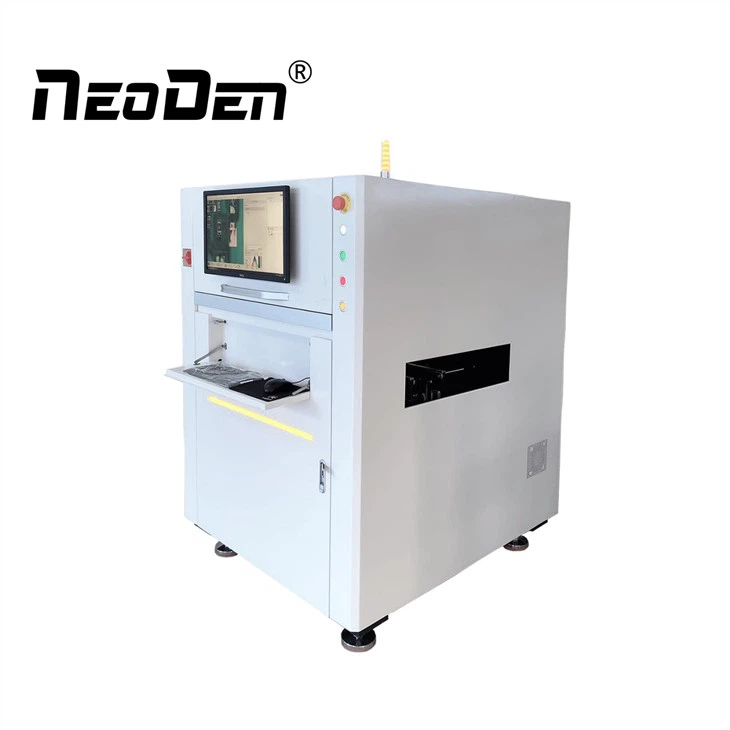

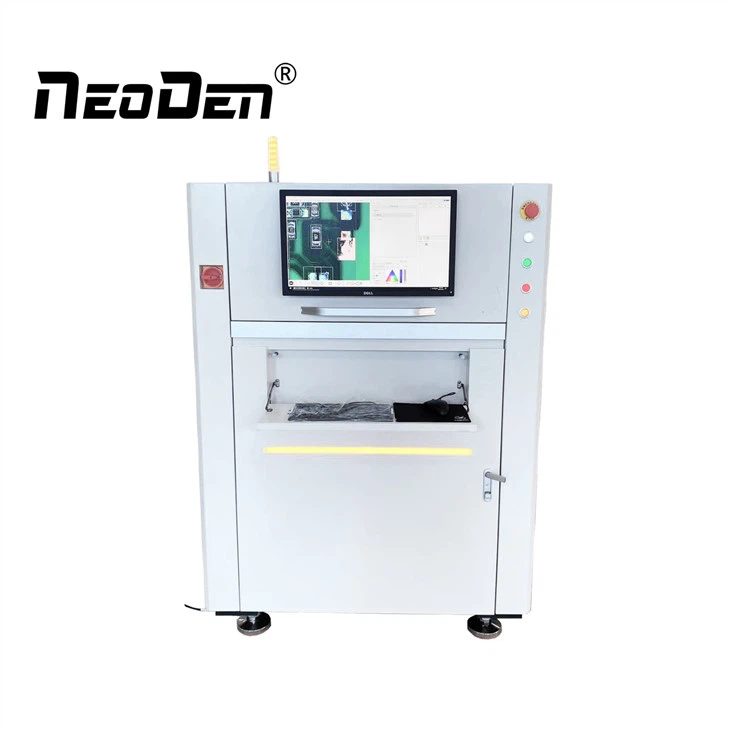

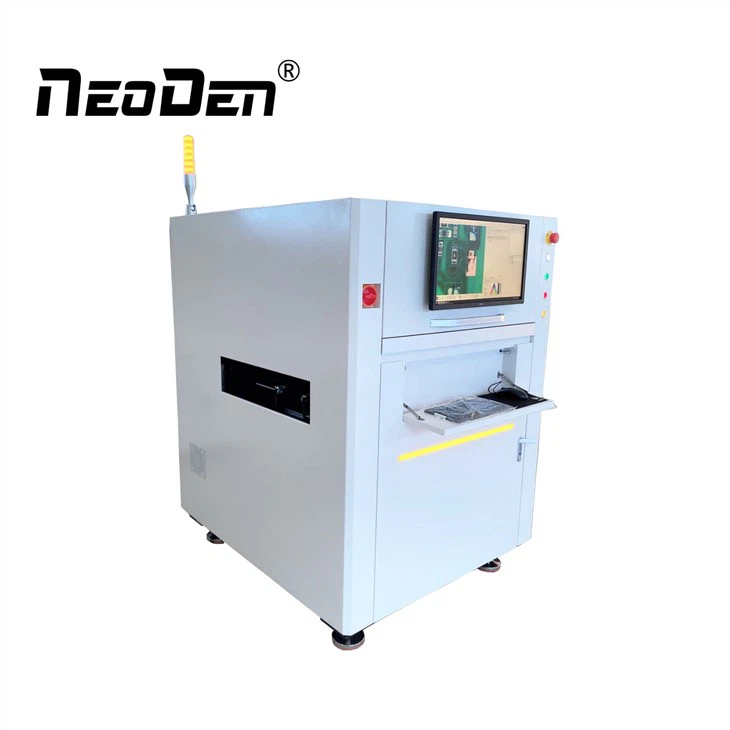

SMT AOI Online Machine
SMT AOI Online machine
Detail
| Product name | AOI Online Machine | Moving speed | 1500mm/Sec (Max) |
| PCB Thickness | 0.6mm~6mm | Transmission height from the ground | 900±30mm |
| Max. PCB Size (X x Y) | 510mm x 460mm | Transmission Method | One Stage Lane |
| Min. PCB Size (Y x X) | 50mm x 50mm | PCB clamping method | Edge locking substrate clamping |
| Max. Bottom Gap | 50mm | Weight | 750Kg/850Kg |
| Max. Top Gap | 35mm |
Feature
Inspecting Content
Missing parts, misalignment, tilted feet, virtual soldering, offset, pole reversal, tombstone, bridging, less tin, floating pins, bent pins, etc.
Operating System
Windows 10 Professional Version 64 byte.
High Precision
Multiple software analysis methods, multiple application modes, high-precision motion system.
High Efficiency
One maintenance workstation confirms the detection data of multiple online machines to realize full automatic process management and control.

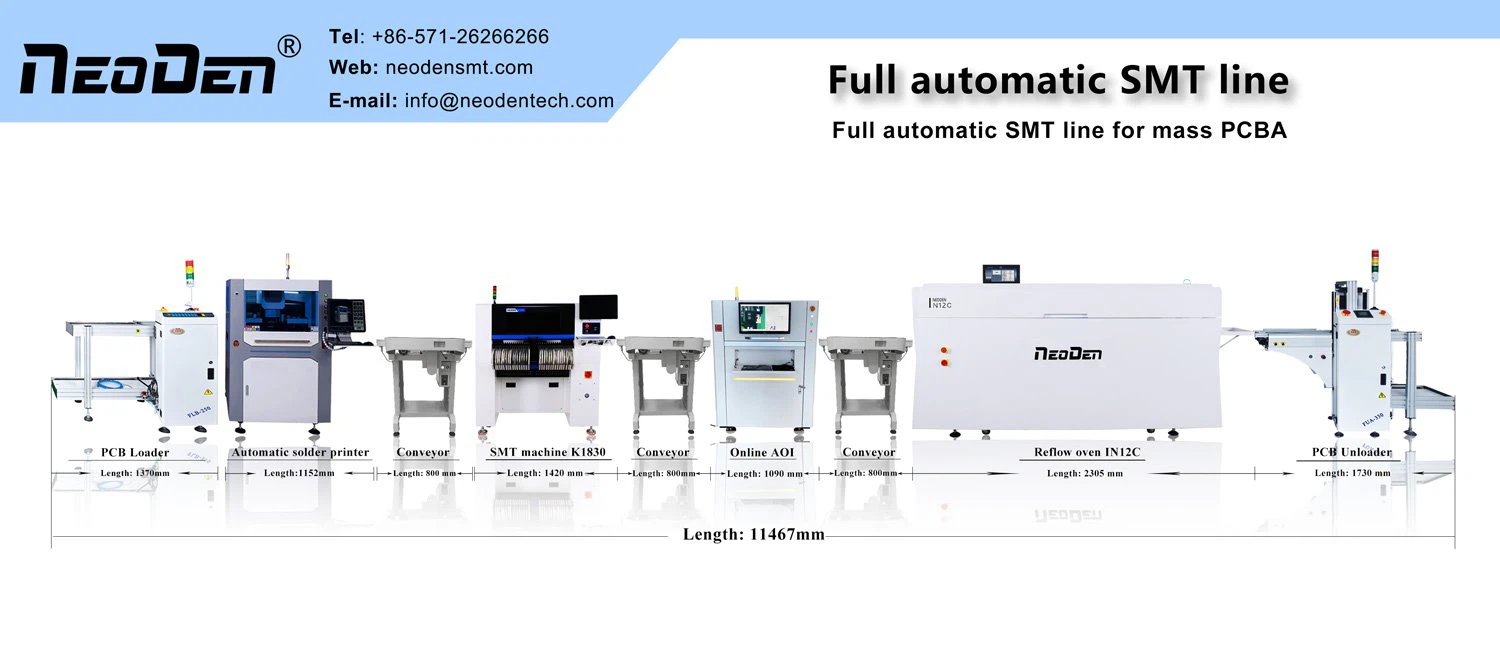

Provide one-stop SMT assembly production line
FAQ
Q1: What products you sell?
A: Our company deal in the following products:
SMT equipment
SMT accessories: Feeders, Feeder parts
SMT nozzles, nozzle cleaning machine, nozzle filter
Q2: What's the way of shipping?
A: These are all heavy machines.
We suggest you use cargo ship.
But components for mending the machines, air transportation would be fine.
Q3: How can I place an order?
A: You can contact any of our sales person for an order.
Please provide the details of your requirements as clear as possible.
So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype, TradeManger or QQ or WhatsApp or other instant ways, in case of any delays.
About Us

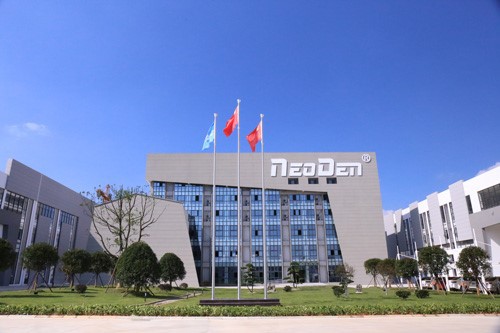

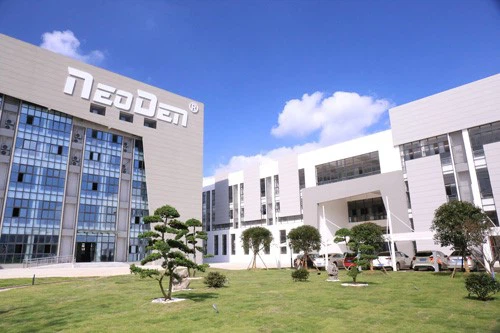

Factory
Certification

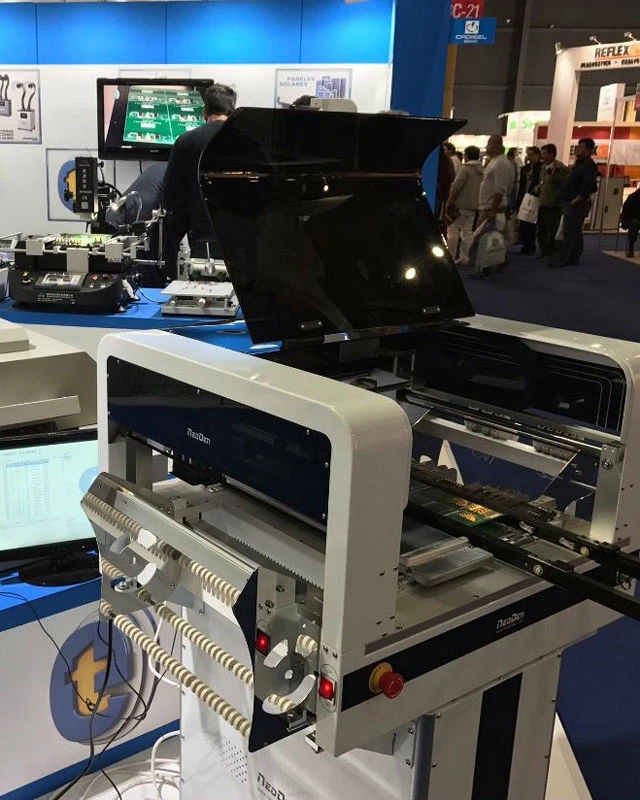

Exhibition
NeoDen provides a full SMT assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment SMT spare parts, etc any kind SMT machines you may need, please feel free to contact us.
