PCB Pick and Place Robot
NeoDen4 PCB pick and place robot Video

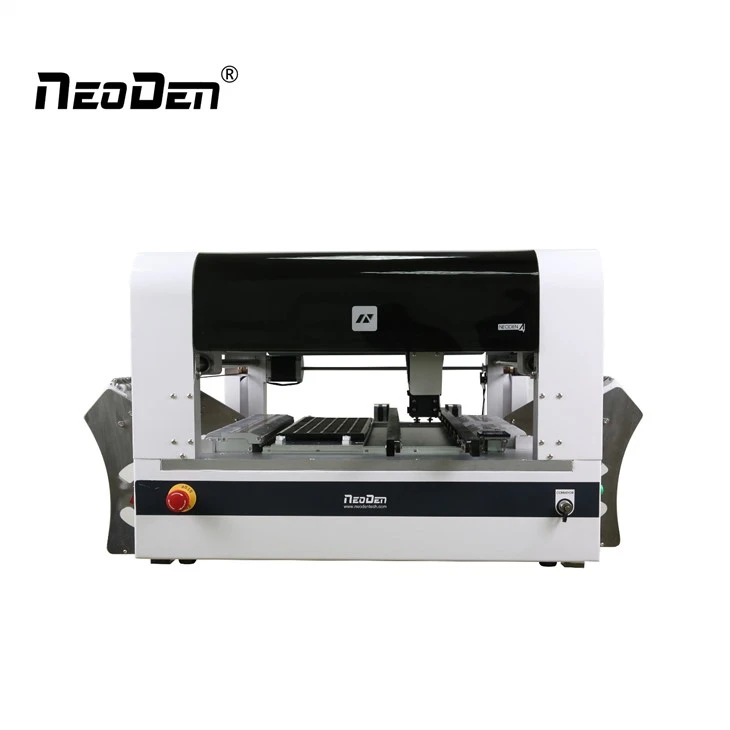

NeoDen4 PCB pick and place robot
Specification
| Product name | NeoDen4 PCB pick and place robot |
|
Machine Style |
Single Gantry with 4 Heads |
|
Placement Rate |
4000CPH |
|
External Dimension |
L 680*W 870*H 460mm |
|
Max applicable PCB |
290mm*1200mm |
|
Feeders |
48pcs |
|
Average working power |
220V/160W |
|
Component Range |
Smallest Size: 0201 |
|
Biggest Size: TQFP240 |
|
|
Max Height: 5mm |
Details
On-line dual rails
A. Continuous automatic feeding the boards during the mounting.
B. Set the feeding position at anywhere shorten the mounting route.
C. We have leading technology in SMT industry what Mark
point relocated technology, can mount overlong boards easily.
Four high precision nozzles
Four high precision nozzles, after calibration by vision software,
it can reach to pick and place four components at one time
with 360 degrees rotation at -180 to180.
Vision system
Equip with high speed industry CCD cameras can
help to identify and calibrate the four picking
components at one time,
highly improved accuracy of placement from 0201 to BGA.
48 8mm Tape-and-Reel Feeders
The NeoDen4 can accommodate up to 48 8mm tape-and-reel feeders on its left and right rails, and any size feeder (8, 12, 16 and 24mm) can be installed in any combination or order on the left and right sides of the machine. The electric feeders are inexpensive but sophisticated microprocessor controlled units paired will tape peelers.
Package
Why Choose us?
1. Light weight body, occupy small area.
2. User friendly interface, no need professional SMT engineer, entry-level device.
3. High integrated, no need extra pump or any supporting facility.
4. High accuracy and reliability, make up the defection of manual work.
5. Low cost, reduce expense to own a professional automatic SMT production line.
6. International express with door to door service, 3-5 working days delivery.
7. Especial for laboratory research and development, samples, to avoid any patents and designs revealment.
Provide one-stop SMT assembly production line
FAQ
Q1: How about the warranty?
A: We have 2 years warranty for NeoDen4, 1 year for all other model, life time after-sales support.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A: Yes. There are English manual and guide video that show you how to use machine.
If there is any doubt in the process of operating the machine, please feel free contact us.
We also provide overseas on-site service.
Q3: How do I pay?
A: My friend, there are many ways.
T/T(we prefer this one), Western Union, PayPal, choose your favorite one.
About us
exhibition
certification
factory
If you need, please feel free to contact us!
