Prototype SMT Production Line PnP Machine

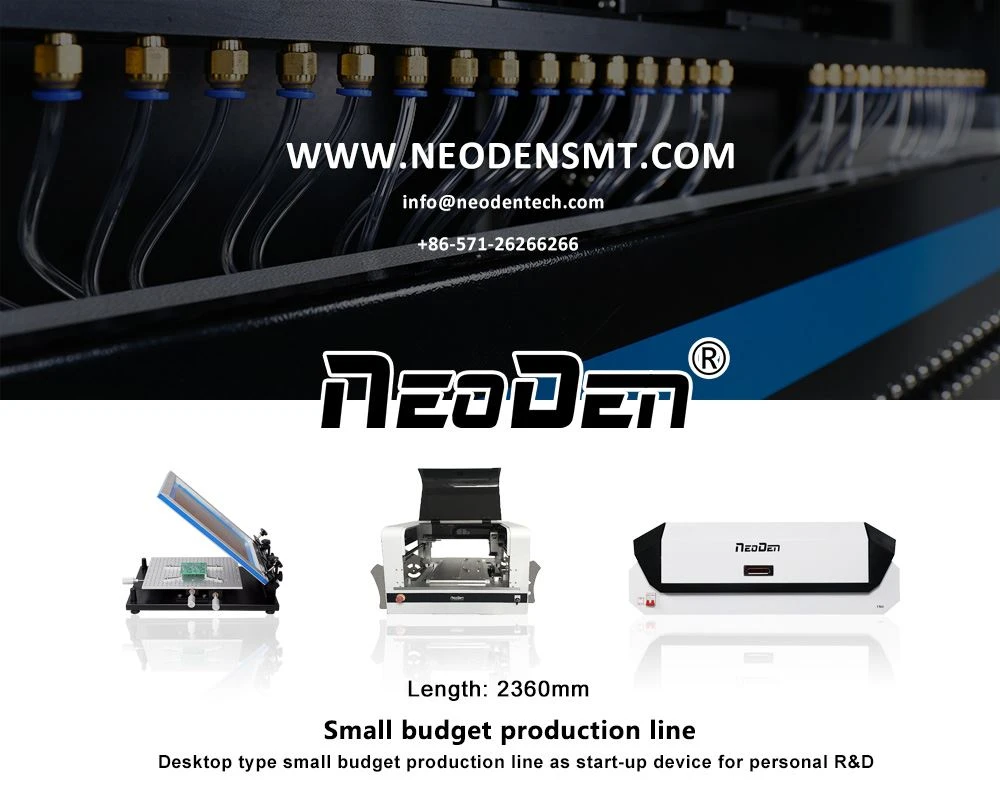

Prototype SMT Production Line PnP Machine+High Precision Printer+Hot Air Heating Oven
Application
This production line meets the needs of smll batch production and processing company.
Step 1: Solder Printer FP2636--Print solder paste on PCB
Step 2: Pick and place machine NeoDen4--Mount component on PCB
Step 3: Reflow oven IN6--Soldering component on PCB
Features
1. Vision system
An up-looking camera and a down-looking camera identifies and calibrates the different components simultaneously, and tremendously improves the accuracy of placement from 0201 to BGA.
2. Four precision heads
4 high-precision placement heads with ±180° rotation that adopts suspended, fully symmetric and high degree of coupling way, to ensure it can mount components with higher space, more gentle and more accurate
3. Auto Electronic Feeders
Adopts feeding error corrections technique to help smooth the picking and reduce the deviation.
4. Auto Rails Achieve Continuous Placement
1.5m auto rails could be connected with universal conveyors to achieve continuous placement.
5. General conveyor is supported
With a conveyor port, One-Stop SMT production line can be setup, which is more time-saving and labor-saving.
6. Supports remote system upgrade
NeoDen will provide a life-long technical service and system upgrade.
7. Industrial PC motherboard
32G solid state drives, read/write faster and more stable, with power-off protection function.
NeoDen4 Technical Parameters
| Product name | Prototype SMT Production Line |
Feeders |
48pcs |
|
Machine Style |
Single Gantry with 4 Heads |
Average working power |
220V/160W |
|
Placement Rate |
4000CPH |
Component Range |
Smallest Size: 0201 |
|
External Dimension |
L 680*W 870*H 460mm |
Biggest Size: TQFP240 |
|
|
Max applicable PCB |
290mm*1200mm |
Max Height: 5mm |
Nozzle Details
FP2636 Stencil Printer
|
Product name |
NeoDen FP2636 solder paster printer |
PCB Thickness |
0- 0.8" - 0-20mm |
|
Max PCB Size |
11"× 15" - 280×380mm |
Platform Height |
7.5" - 190mm |
|
Min PCB Size |
0.4"× 0.2" - 10×5mm |
Repeatability |
±0.01mm |
|
Screen Stencil Size |
10"× 14" - 260×360mm |
Max Rotation Angle |
±15° |
|
Printing Speed |
Labor control |
Positioning Mode |
Outside/Reference Hole |
IN6 Reflow oven/soldering machine
| Length*Width*Height | 1700*612*650mm | Conveyor Width | 300mm |
| N.W | 120Kg | Standard Max Height | 26mm |
| Peak Power | 7KW | Customized Max height | 55mm |
| Working Power | 3KW | Max Speed of Conveyor | 1200mm |
| Input Voltage | 220/380V | Packing Size | 190*70*68CM |
| Gross Weight | 150KG |
Warranty
The complete machine has a warranty period of 2 years for NeoDen4, 1 year for FP2636+IN6 from the time of purchase and lifelong service support as well as a long-term factory price supply.
We provide online Q/A and trouble shooting support and technical advice service.
