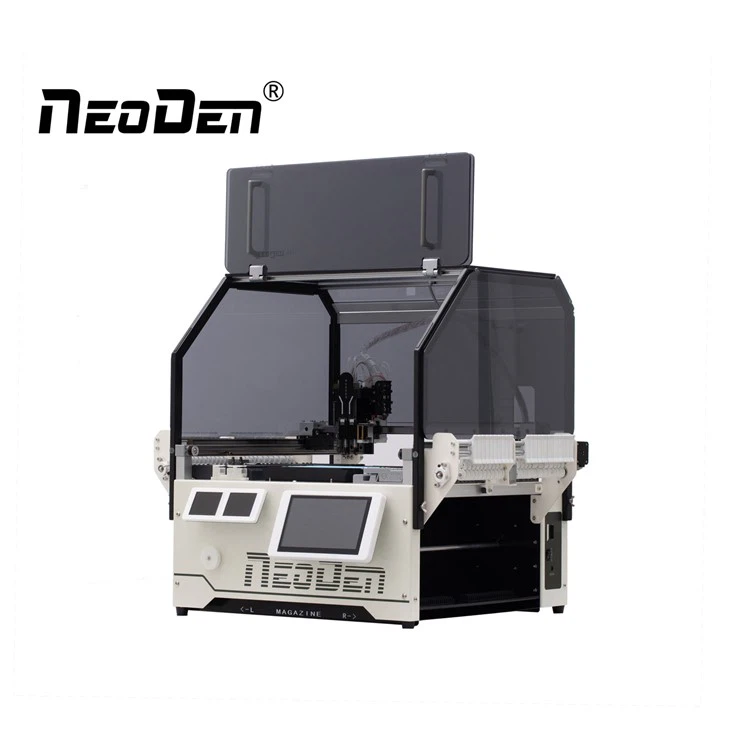

Prototype Pick And Place Machine
prototype pick and place machine
Specification
| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |
Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm (wooden box) | ||
|
Bulk Feeder: 19 |
Details
Product introduction
1. Automatic nozzle changer help realizing nozzles changed flexibly.
2. Independent high-definition & high-speed dual vision recognition systems,as well as dual cameras for real-time display the working status.
3. Newly designed software system & UI for visual programming and placement, which allows fast programming on the machine, friendly interface & easy operation.
4. Small size with powerful magazines and newly designed tape feeders to support large tape reels configuration flexibly,easy to install and replace tape reels conveniently, to ensure the most excellence solution among all of the entry level machines with lower budget but higher stability.
5. Comes with a high-definition capacitive touch screen, which can be adjusted up and down to meet the needs of different viewing angles and enhance the user experiences.
Especially a good choice for customers who prefer in prototype project as a startup device. If you need, please feel free to coantact us.
FAQ
Q1: What products you sell?
A: Our company deal in the following products:
SMT equipment
SMT accessories: Feeders, Feeder parts
SMT nozzles, nozzle cleaning machine, nozzle filter
Q2: How do I pay?
A: My friend, there are many ways.
T/T(we prefer this one), Western Union, PayPal, choose your favorite one.
Q3: This is the first time I use this kind of machine, is it easy to operate?
A: We have English user manual and guide video to teach you how to use the machine.
If still have question, pls contact us by email / skype / whatapp / phone / trademanager online service.
