Pick and Place Machine with Flying Camera for SMT mass production
NeoDen7 has been discontinued. Looking for an upgrade?
Discover the NeoDen9 - a more powerful and superior alternative that's the ideal choice for your needs.
Pick and Place Machine with Flying Camera for SMT mass production
Feature of Pick and Place Machine with flying camera
1. Integrated flying vision system
2. 6 Simultaneous pick-up head
3. Placement rates up to 14,000 cph
4. Up to 64 (all in 8mm)tape feeders
5. Accurately places a wide range of components including 0402, LED, BGA, 0.4mm pitch QFP, SMT Connectors and many others
6. Panasonic Servo driven
Technical Parameters of Pick and Place Machine
|
Maximum Board Dimension |
630*300mm(1200mm optional) |
|
Number of Heads |
Placement head: 1 Nozzle:6 |
|
Max Tape Feeder Capacity |
64 (8mm or 12mm feeder) |
|
Applicable tape reel feeder size |
8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm |
|
Average Placement Speed |
13,500CPH |
|
Vision Number |
8 (1 fiducial camera, 6 flying cameras, 1 IC camera) |
|
Component range |
Smallest components: 0402, TQFP, QFN, BGA and other conventional components |
|
Feeder Number |
Tape feeder: 64 |
|
Resolution |
X/Y axis: 0.01mm, Z axis:0.1mm |
|
Rotation |
±180°(360°) |
|
Placement Accuracy |
0.01mm |
|
Power Supply |
AC220V/110V |
|
Power |
500W |
|
Machine Size |
1420*1220*1665mm |
|
Air Source |
Above 0.6MP |
Nozzle List
|
Model |
Recommendation(Imperial system) |
|
CN030 |
0201 |
|
CN040 |
0402(optimal) |
|
CN065 |
0402,0603 etc. |
|
CN100 |
0805,diode,1206,1210 etc. |
|
CN140 |
1206,1210,1812,2010,SOT23,5050, etc. |
|
CN220 |
SOP series ICs,SOT89,SOT223,SOT252, etc. |
|
CN400 |
ICs from 5 to 12mm |
|
CN750 |
ICs bigger than 12mm |
|
YX01 |
3528serices Soft bead |
|
YX02 |
High power lamp beads |
|
YX03 |
Chips and BGA from 11mm to 17mm BGA |
|
YX04 |
Chips and BGA bigger than 17mm |
|
YX05 |
4148 circular diode |
|
YX06 |
3535 ball shape LED(Spherical height 1.4mm,overall height 1.9mm) |
NeoDen is a reliable manufacturer with 10 years' experience. Until now, we have exported to more than 130 countries and 10000+ sets of machines all over the world, and have built a good reputation in the market. We are in a good position not only supply you high-quality machines, but also excellent after-sale service. The well-trained engineer will provide any technical support to you.
Zhejiang NeoDen Technology Co.,Ltd
Web: www.neodentech.com
Email: info@neodentech.com
If you need a small line, we also have a lot option for you.

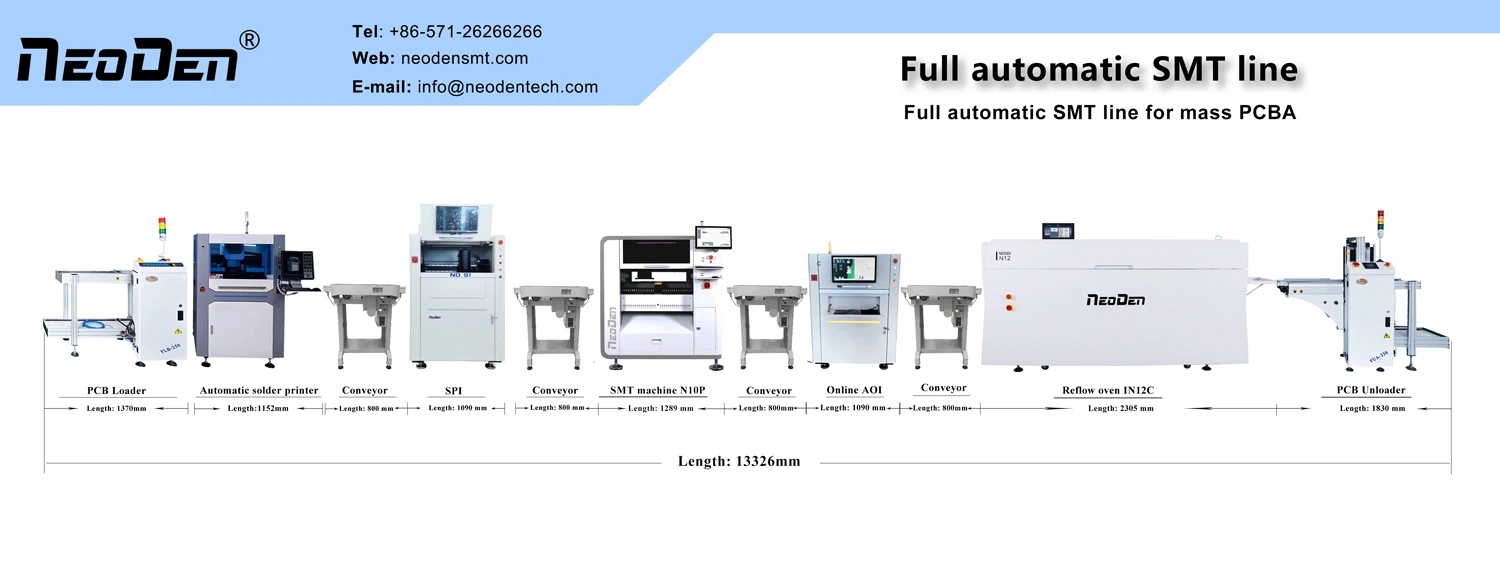

Provide one-stop SMT assembly production line
Feedback
Thank you again for your help with everything. It has been a little bit of a challenge but you have made it so much better.
I really do appreciate your understanding and pacience. I have mentioned this situation to several of my co-workers and they are also impressed with the service that you have provided.
I am hopeful that I can get some business to you from them in the future. This experience has shown me how even in a difficult situation your company has been very supportive and that means a lot.
Not many companies would have been so understanding and looked out for there customers interests as you have, this will not be forgotten.
I will ensure that I pass this on to several others so that they are aware of your company and service.
-- Paul
Overall we are quite happy with our machine. We assembly some very complex boards with lots of 0201, 0.5 QFN and even some 0.4 BGA components.
--Mario van Asselt
The machine has been great and we are very pleased with it so far.
--Ian
Also, just FYI we have had no problem placing the 0.4mm component. The NeoDen 4 works flawlessly every time.
--Shane Goedvolk
Why use SMT?
Electronics pursuit perforated miniaturization, previously used plug-in component has been unable to be smaller.
The electronics function is more complete, there is no longer the piercing element of the integrated circuit (IC), especially large-scale, highly integrated ICs, surface mount components is necessary.
Batch production and automation, factory requires a low-cost, high-volume, production of quality products to meet customers' needs and enhance their competitive edge.
Development of electronic components, integrated circuits (IC) development, multiple applications of semiconductor materials.
The electronic revolution in science and technology is imperative to chase the international trend.
