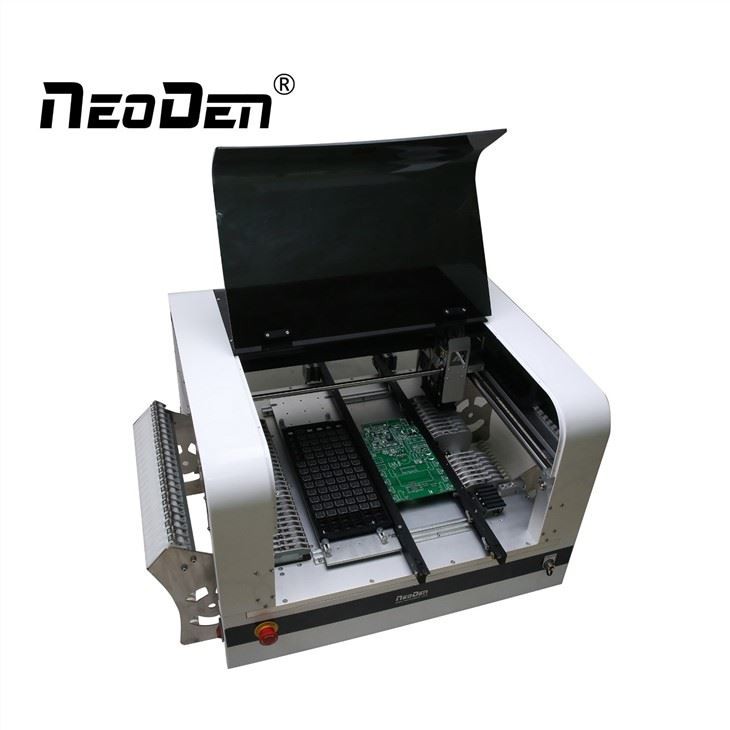

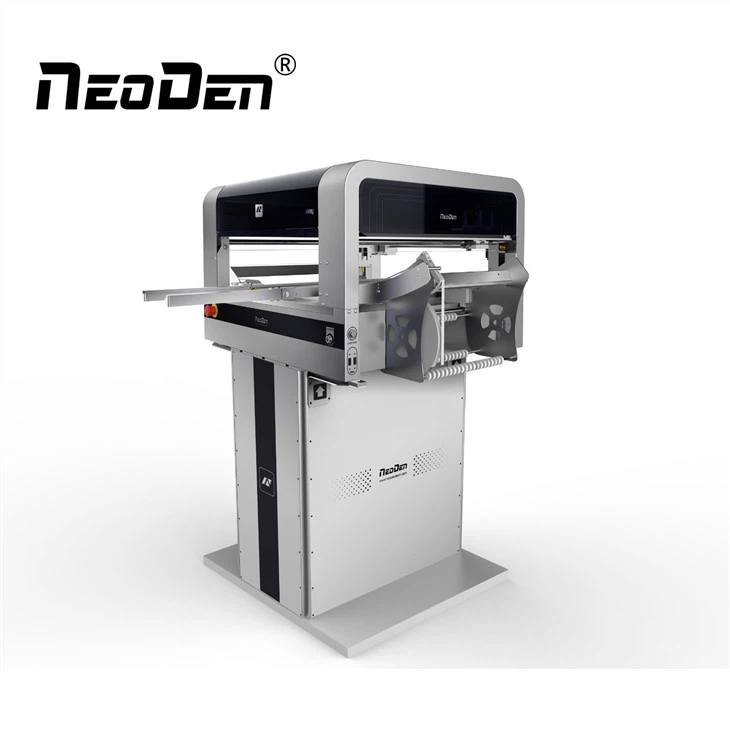

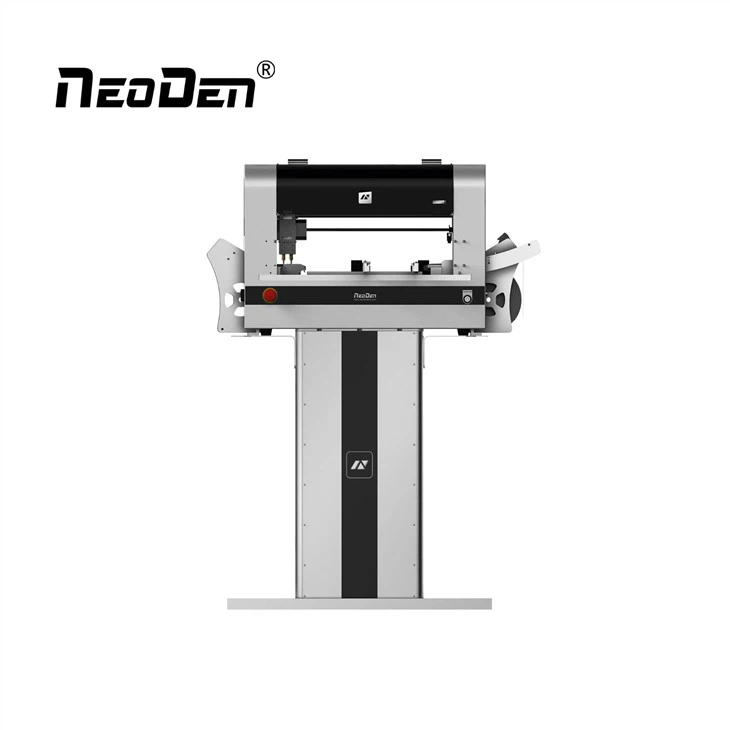

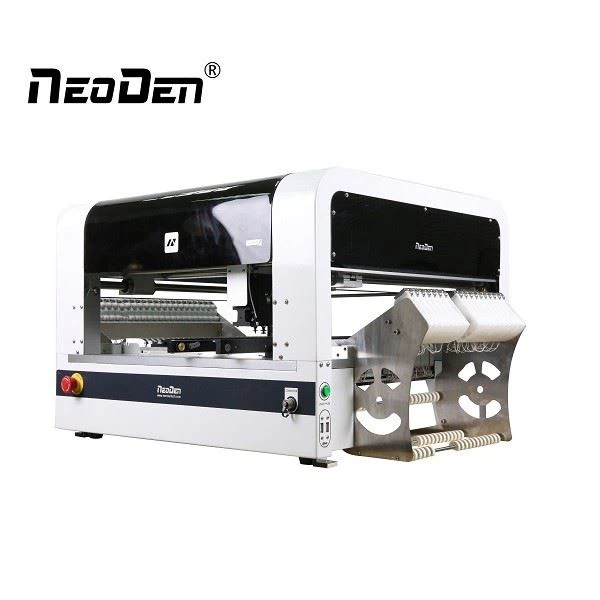

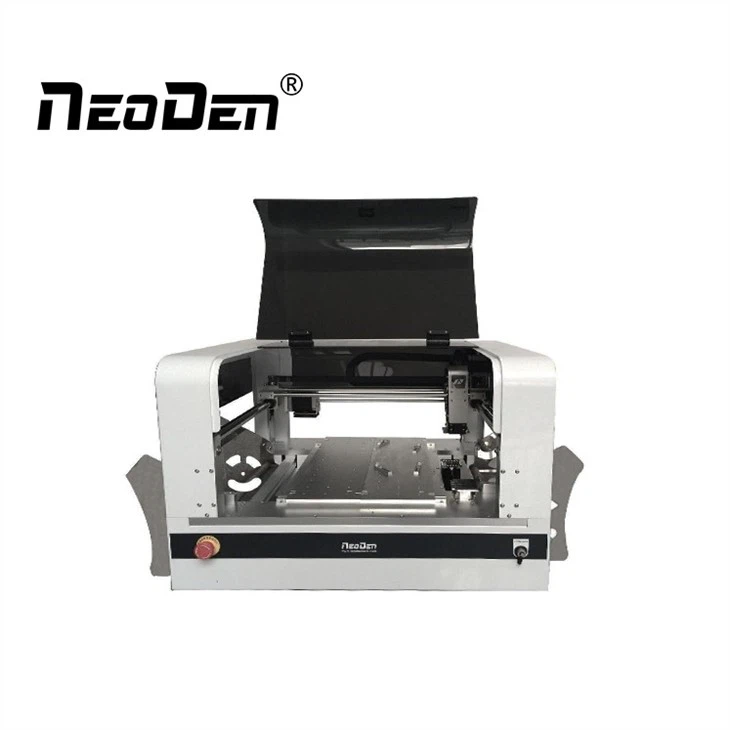

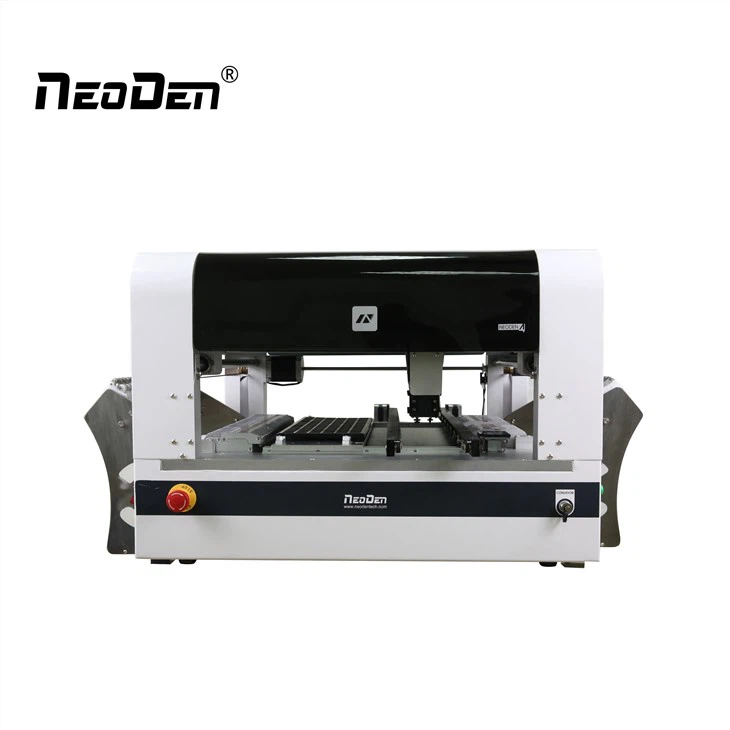

NeoDen4 PCB Pick and Place Assembly Machine
Feature
The fourth-generation model NeoDen4 SMT machine is NeoDen Tech's independent product, with completely independent intellectual property.
Its high precision vision system made it stand out in desktop pick and place machine area.
Specification
| Product name | NeoDen4 PCB Assembly Machine |
|
Machine Style |
Single Gantry with 4 Heads |
|
Placement Rate |
4000CPH |
|
External Dimension |
L 680*W 870*H 460mm |
|
Max applicable PCB |
290mm*1200mm |
|
Feeders |
48pcs |
|
Average working power |
220V/160W |
|
Component Range |
Smallest Size: 0201 |
|
Biggest Size: TQFP240 |
|
|
Max Height: 5mm |
Details

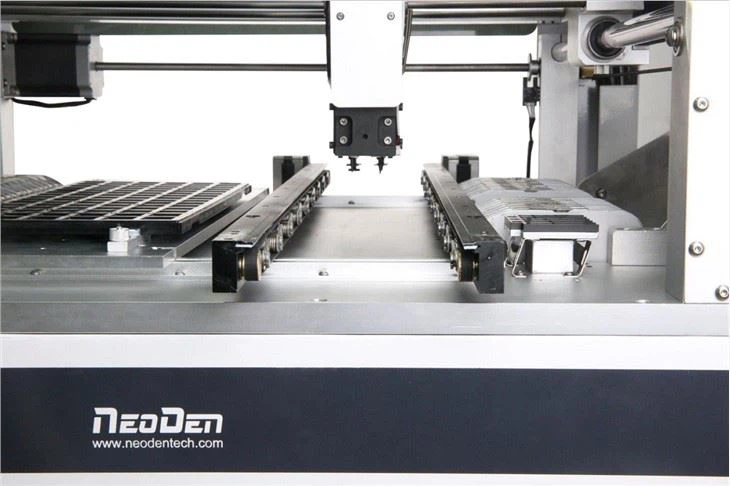

On-line dual rails
A. Support connect to conventional conveyor directly.
B. Set the feeding position at anywhere.
C. Mount overlong boards easily.
Four high precision Nozzles
Any size nozzle can be installed.
Designed in a suspended, fully symmetric
Mount at the same time with 360 degrees
Vision system
(up-looking and down-looking camera)
Equip with high speed industry CCD cameras
Highly improved accuracy of placement from 0201 to BGA
Electronic feeders
8mm tape-and-reel feeders
Adopts feeding error corrections technique
can handle up to 5 separate tubes
Package

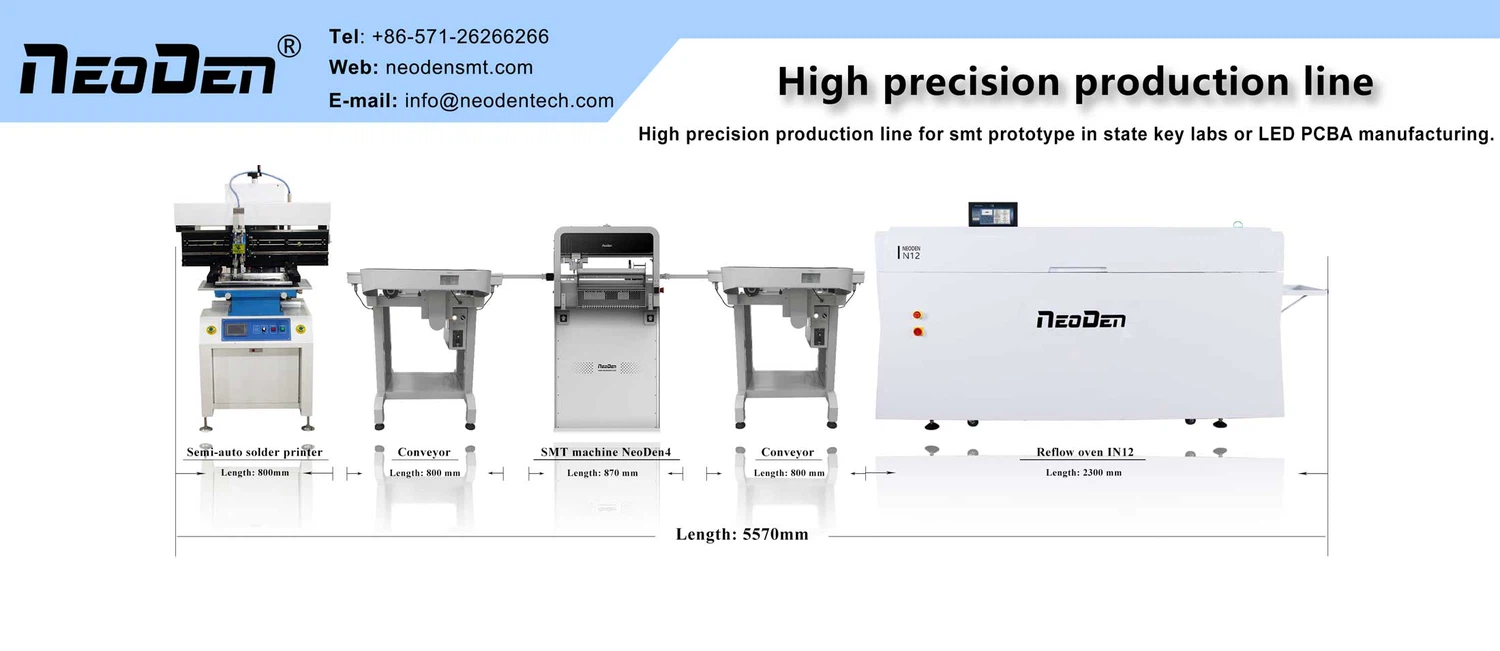

Provide one-stop SMT assembly line
FAQ
Q1: What is your main market?
A: All over the world.
Q2: Do you have after-sale service?
A: Yes, Good after-sale service, handling the customer complaint and solve problem for customers.
Q3: What is your advantage compared with your competitors?
A: (1). Qualified Manufacturer
(2). Reliable Quality Control
(3). Competitive Price
(4). High Efficiency working (24*7hours)
(5). One-Stop Service
About us
factory
Zhejiang NeoDen Technology Co., LTD., founded in 2010, is a professional manufacturer specialized in PCB pick and place machine, reflow oven, stencil printing machine, SMT assembly line and other SMT Products. We have our own R & D team and own factory, taking advantage of our own rich experienced R&D, well trained production, won great reputation from the world wide customers.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist on everywhere.
Certification
exhibition
If you need, please feel free to contact us!
