Pick And Place Machine with camera
Small Automatic Pick and Place Machine NeoDen4
Introduction
NeoDen4 is a flexible pick and place machine for all types of production.
With placement rates of 10,000 cph, up to 48 feeder slots, auto rails, and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.
It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility, and production flexibility) and speeds to meet the demands of an ever-changing market.
Application industry
household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things, and military industry, etc..
Accessories
Packing

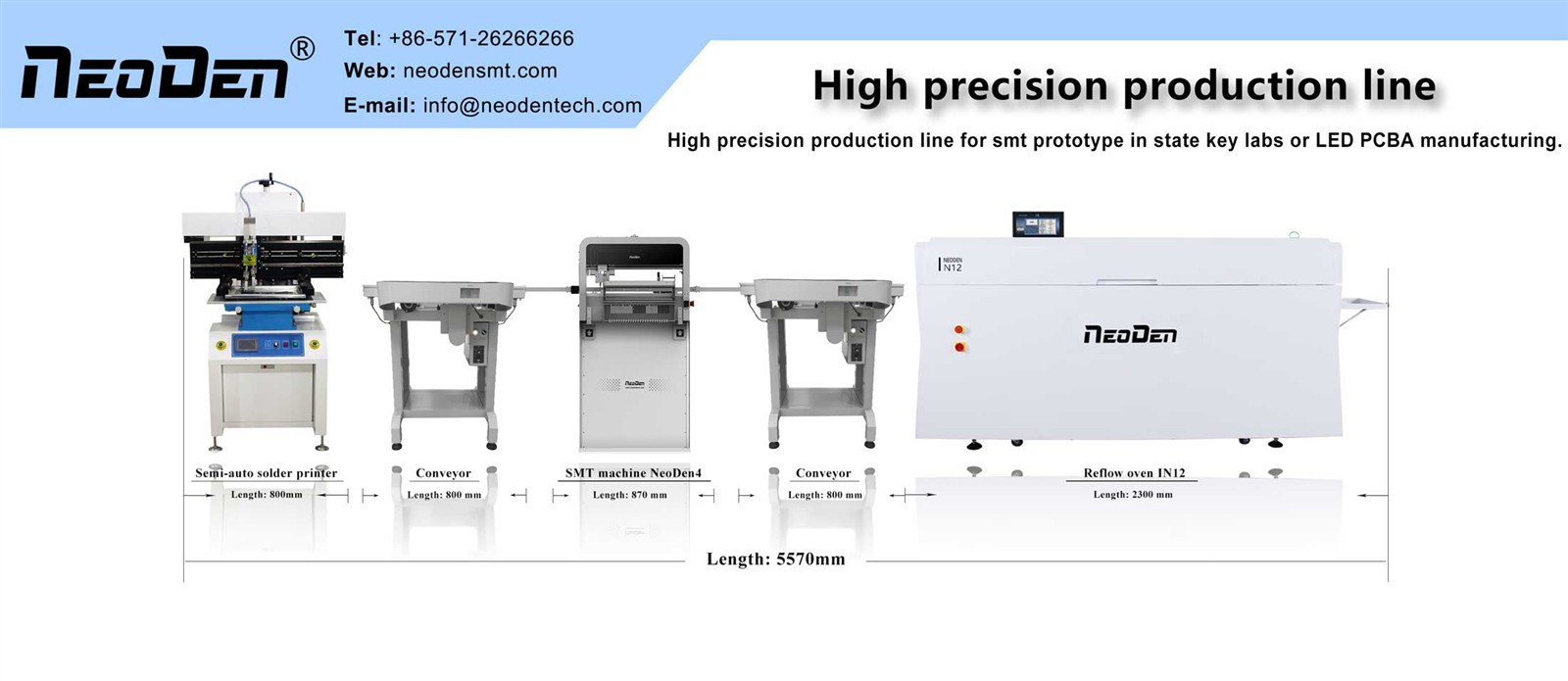

Recommended Production Line
Warranty
The guarantee period is 2 years from the time of purchase and lifelong service support.
NeoDen will provide an online Q/A and troubleshooting support and technical advice service.
About Us
factory
Zhejiang Neoden Technology is a professional supplier with 10 years of experience and provides one-stop SMT solutions for customers, key products are pick&place machines, reflow oven, and solder printer. Currently, we have sold 10000+ sets of machines and exported to 130+ countries in the world, and have built a good reputation in the market.
certification

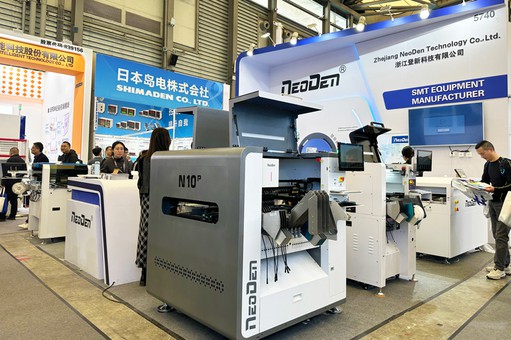

exhibition
|
Model |
NeoDen4 |
||
|
Machine style |
Single gantry with 4 heads |
||
|
Alignment |
Stage Vision |
||
|
Placement Rate |
Vision on |
5,000CPH |
|
|
Vision off |
10,000CPH(Optimum) |
||
|
Feeder Capacity |
Tape feeder:48(all 8mm) |
||
|
Vibration feeder:5 |
|||
|
Tray feeder:5 |
|||
|
Component Range |
Smallest Size |
0201 |
|
|
Largest Size |
32x32mm (Lead Pitch 0.5mm) |
||
|
Max Height |
5mm |
||
|
Rotation |
±180° |
||
|
Placement Accuracy |
±0.02mm |
||
|
X-Y Repeatability |
±0.02mm |
||
|
Board Dimension(mm) |
Maximum |
310 x 1500mm |
|
|
140 x1500mm(With 1 waffle Tray) |
|||
|
Main Control |
GUI |
||
|
Electricity Supply |
110V/220V |
||
|
Power |
180W |
||
|
External Dimensions(mm) |
Machine size |
870(L)x680(W)x480(H) |
|
|
Packing size |
940(L)x740(W)x600(H) |
||
|
Weight |
Net Weight |
60kgs |
|
|
Gross weight |
80kgs |
||
