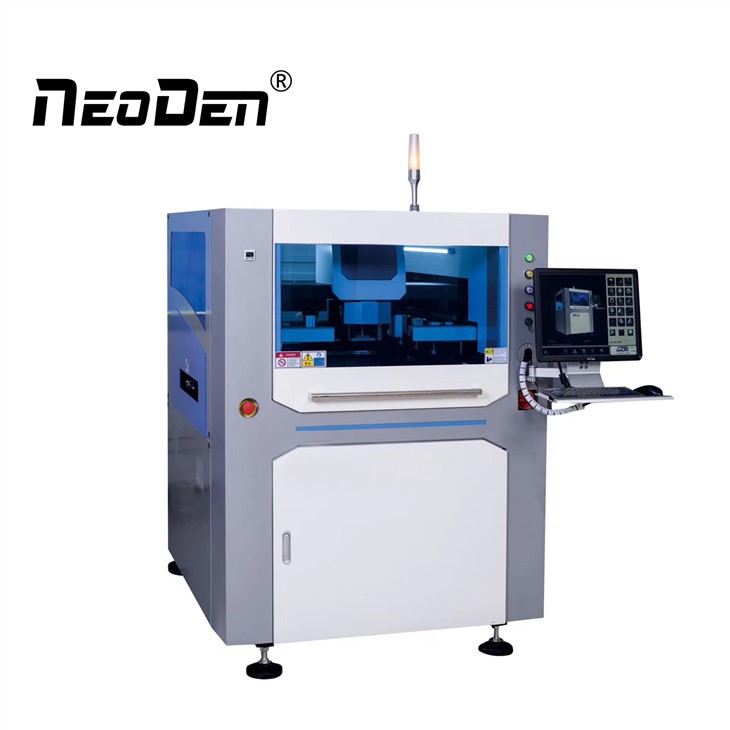

PCB Automatic Printer
Description
1. Accurate optical positioning system.
2. Intelligent squeegee system.
3. High efficiency and high adaptability stencil cleaning system.
4. HTGD Special PCB thickness adaptive system.
5. Printing axis servo drive.
6. 2D solder paste printing quality inspection and SPC analysis.
Specification
| Product name | PCB Automatic Printer |
| Maximum board size（X x Y） | 450mm x 350mm |
| Minimum board size（X x Y） | 50mm x 50mm |
| PCB thickness | 0.4mm~6mm |
| Warpage | ≤1% Diagonal |
| Maximum board weight | 3Kg |
| Board margin gap | Configuration to 3mm |
| Maximum bottom gap | 20mm |
| Transfer height from the ground | 900±40mm |
| Transfer speed | 1500mm/s(Max) |
| Transfer orbit direction | L-R, R-L, L-L, R-R |
| Machine weight | Appro.1000Kg |
Details
Accurate optical positioning system
Good identification
Light intensity is adjustable
Four way light source is adjustable
Printing axis servo drive
Improve accuracy grade
Provide good printing control platform
operational stability, extend the service life
Stencil cleaning system
Soft wear-resistant rubber wiping plate
Cleaning methods of dry, wet and vacuum
Thorough cleaning, convenient disassembly
Intelligent squeegee system
Intelligent programmable setting
Built-in precise pressure control system
Two independent direct motors driven squeegee
PCB thickness adaptive system
Intelligent, fast, simple and reliable in structure
Solder paste printing quality inspection
2D function can quickly detect the printing defects
The detection points can be increased arbitrarily
Our Service
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own factory located in Huzhou, China.
3. Strong professional technical team ensure to produce the top quality products.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on SMT area.
Q1: This is the first time I use this kind of machine, is it easy to operate?
A: Yes. There are English manual and guide video that show you how to use machine.
If there is any doubt in the process of operating the machine, please feel free contact us.
We also provide overseas on-site service.
Q2: How do I pay?
A: My friend, there are many ways.
T/T(we prefer this one), Western Union, PayPal, choose your favorite one.
Q3: Can we customize the machine?
A: Of course. All of our machines can be customized.
About us
Zhejiang NeoDen Technology Co., LTD., founded in 2010, is a professional manufacturer specialized in SMT pick and place machine, reflow oven, stencil printing machine, SMT production line and other SMT Products. We have our own R & D team and own factory, taking advantage of our own rich experienced R&D, well trained production, won great reputation from the world wide customers.
In this decade, we independently developed NeoDen4, NeoDen IN6, NeoDen K1830, NeoDen FP2636 and other SMT products, which sold well all over the world. So far, we have sold more than 10,000pcs machines and exported them to over 130 countries around the world, establishing a good reputation in the market. In our global Ecosystem, we collaborate with our best partner to deliver a more closing sales service, high professional and efficient technical support.
If you need, please feel free to conatct us for more information.
